SECTION 2. COMPONENT LOCATION

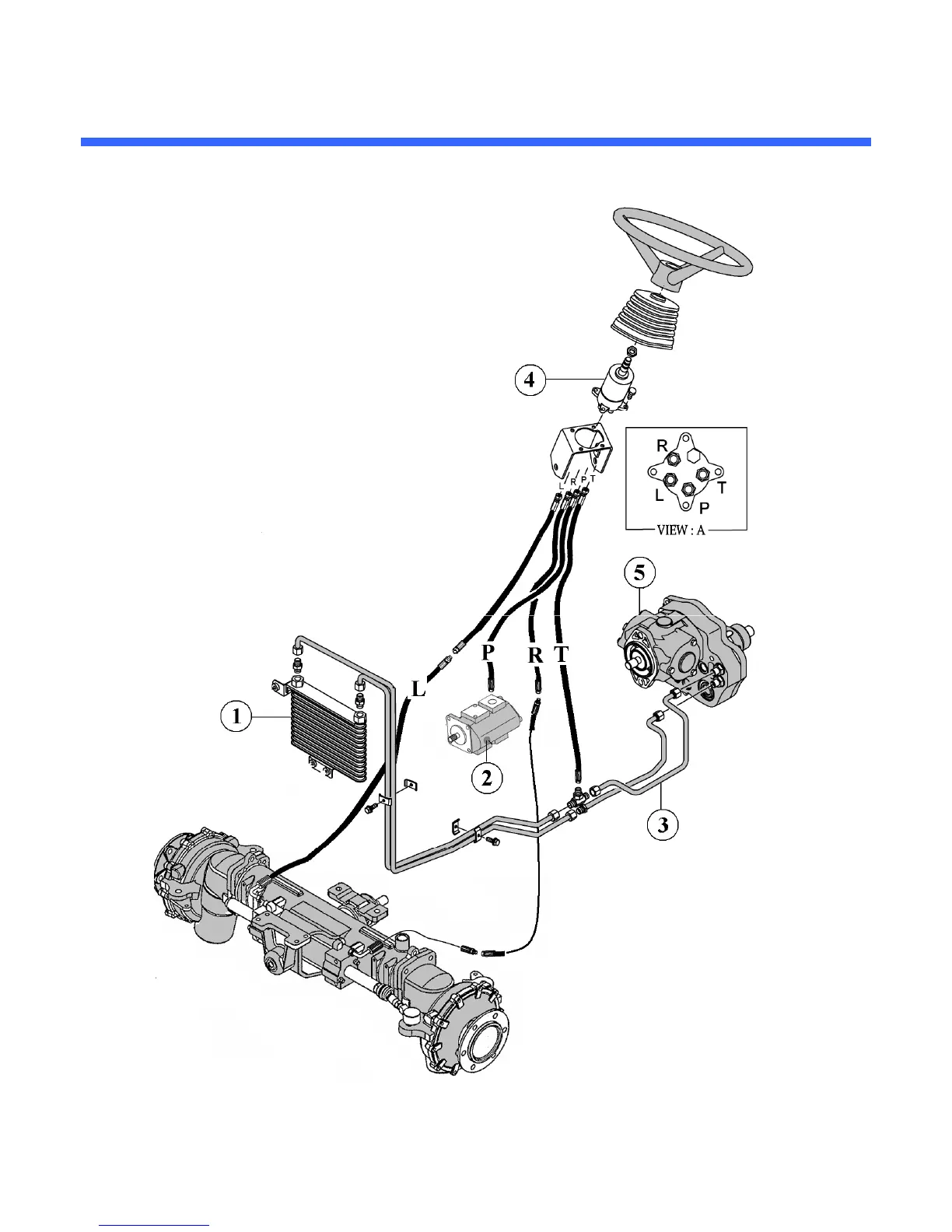

1.Hydraulic Hoses and lines.
1.hydraulic oil cooler
2. Gear pump
3. Cooler return Line
4. Steering Control Unit
5. Hydrostatic Unit
4-3
