TYM T303HST User Manual

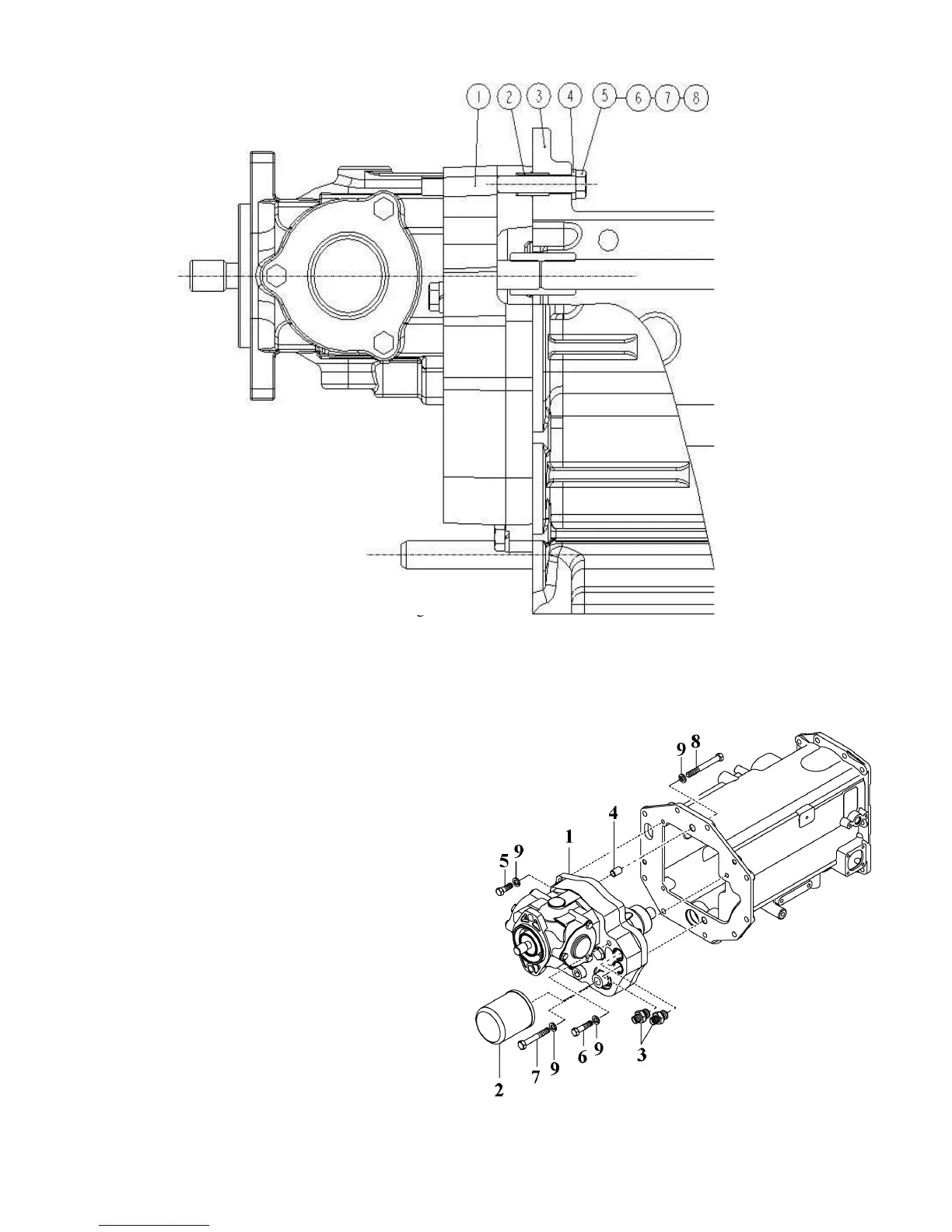

1.HST Unit
2.Pin,Hollow
3.Case,Mid transmission
4.Washer,spring
5.6.7.8.Bolt,hex
Fig.5
-
16
4) HST REASSEMBLY
Reassemble them in reverse order of
disassembly in accordance with the
following instruction.
- Installation of clutch damper and
related parts.
(1) When installing the clutch damper on the
flywheel ,be sure to install the cotter pin to
flywheel.
(2) Apply a thin coat of molybdenum
disulfide-based grease(Three bond TB1901
or equivalent) to revolving or sliding parts
prior to reassembly.
(3) When installing the clutch damper on the
flywheel, take care not to damage this
clutch damper.
(4) Apply an ANTI RUST 720S or equivalent
after installing clutch damper in order to
prevent from rust.
5-10
Fig.5
-
16
