Reassemble the parts in reverse order of
disassembly,following these instructions.
Note:
-Each parts should be washed clean before
reassembly.
purpose,quality grease to
c. When installing the return spring,use a
special tool; the snap ring should be securely
purpose,quality grease to
needle bearings in advance.
-Each bolt and nut should be tightened to
the respective specified torque table.
-Every time a gear is installed,its smooth
rotation should be checked.
-Every snap ring should be seated securely
in its groove.
a. When installing seal rings, apply fresh
oil ahead of time and install them carefully
so as not to damage them.
b. Install the return plate with the
press-processed side turn towards the brake
disc.
① Return plate ②Brake Disc
d.When pushing the RBB’s (6205 and 6005)
into the gear,be careful only to push their
outer races.
4.Bearing ball (6205) 5.Gear,helical 35T
6.Bearing,ball (6005)
e. Install washer in correct direction.
f. After reassembly,check to see that gear(35T)
turns smoothly by locking the PTO clutch
5-9

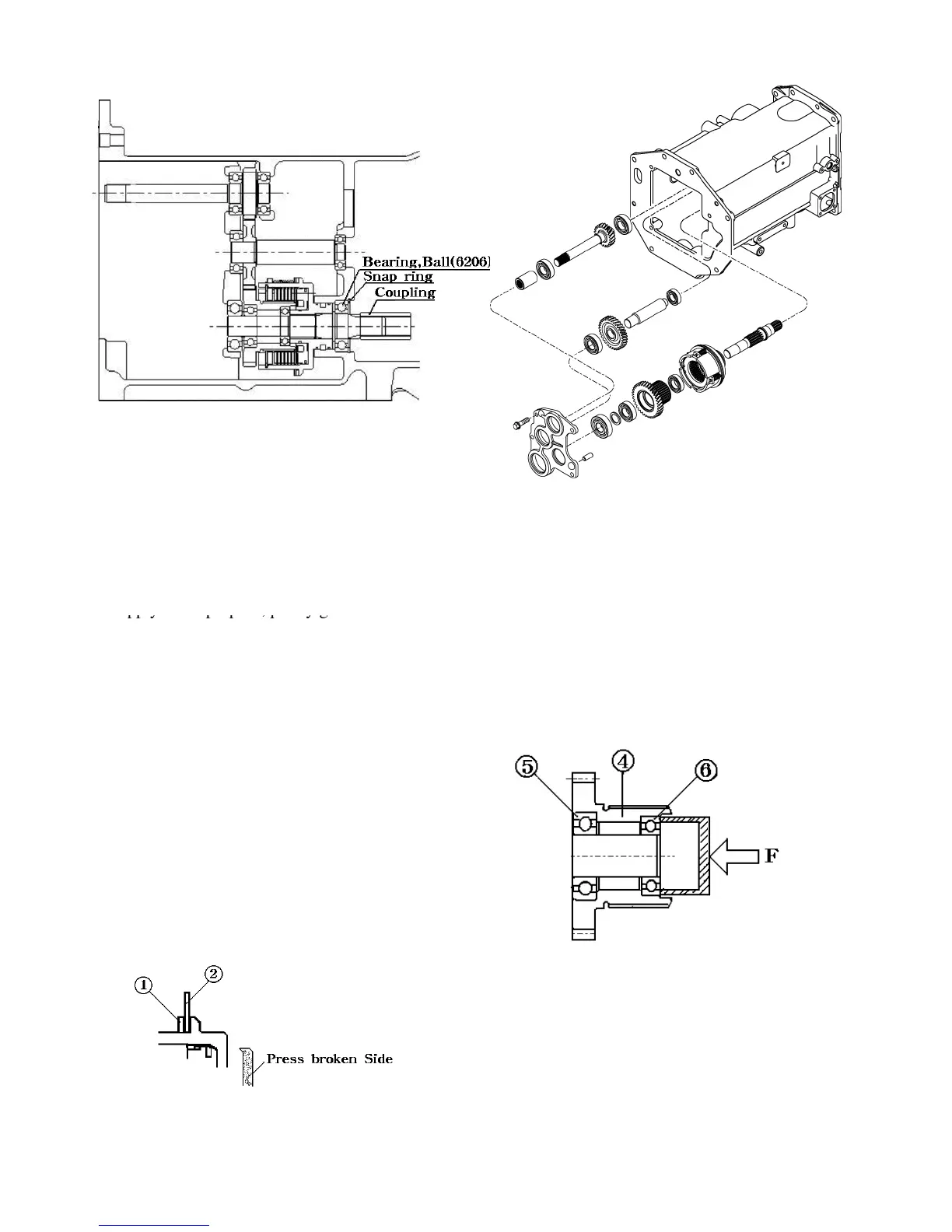

Fig.5-14
Fig.5-15
To Next Page
