2) Lifting position
As main spool is moved to lifting position pump
pressure is increased and open the check valve(511,531).
The lift arm moved to lifting position by flowing to cylinder
and operate piston.

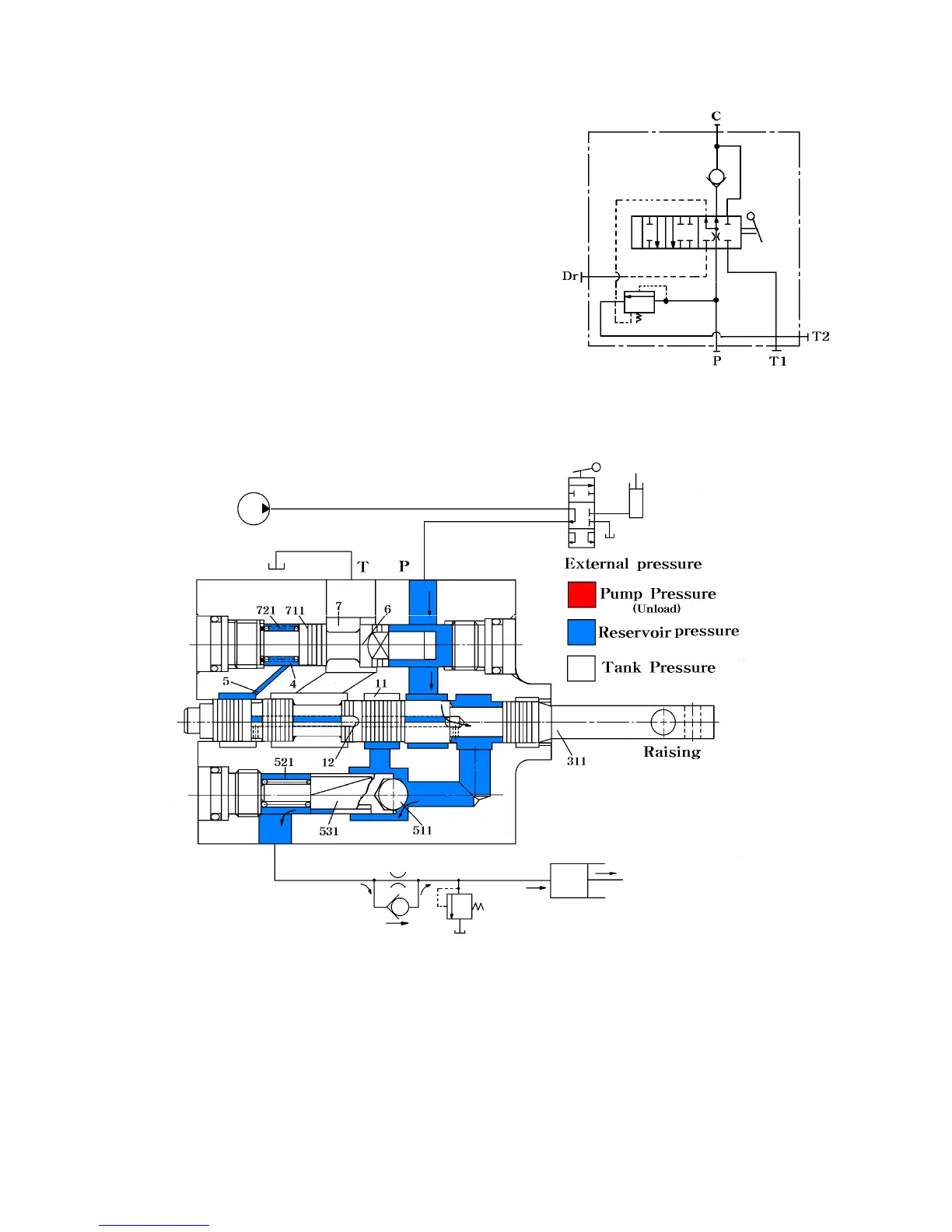

Circuit diagram in the lifting position
9-2
Fig.9-44
