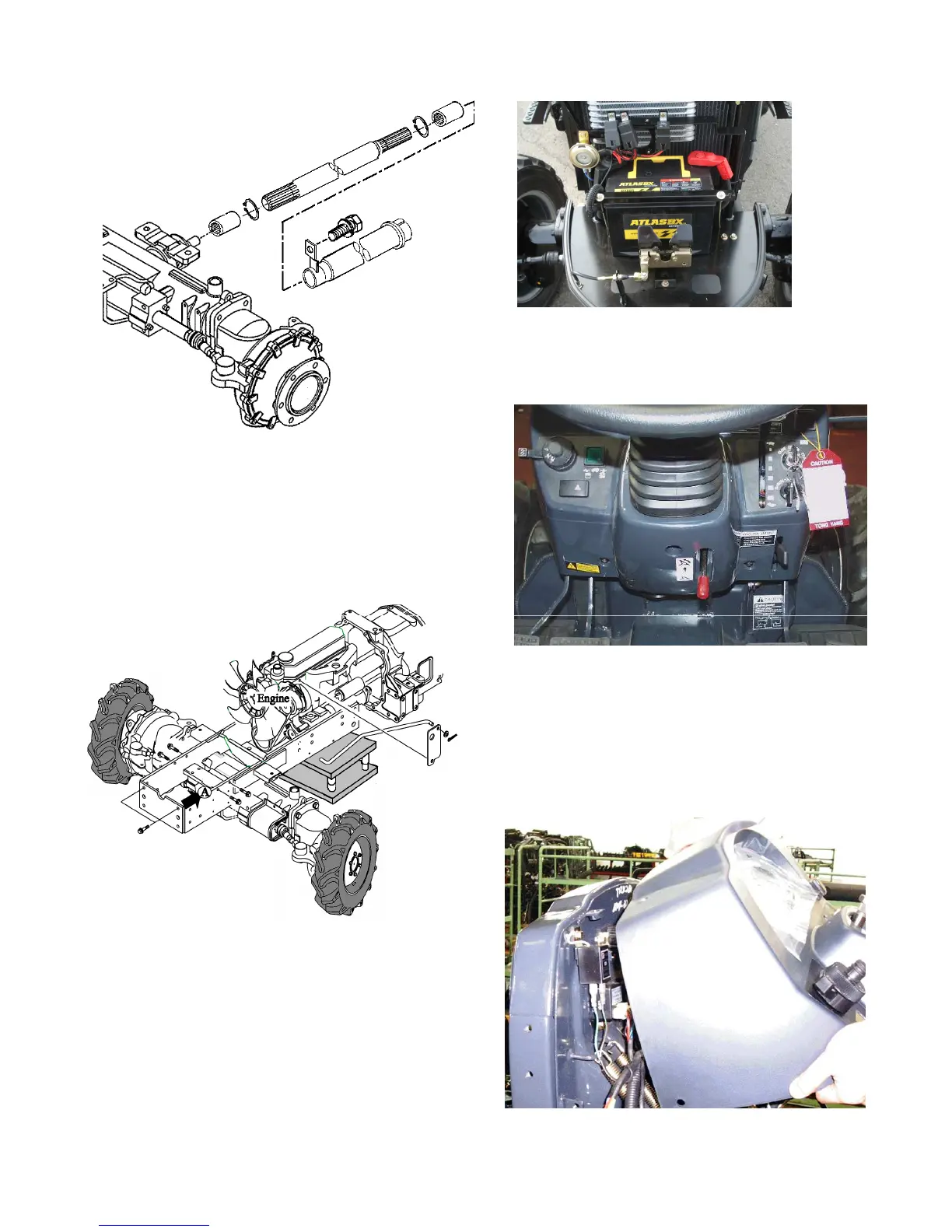

2) Support the engine on the bottom with a jack
or stands.
3) Hold the transmission with a garage jack or a
crane so that the transmission side can be
moved when needed.
FIG.2-13
FIG.2-14
4) Disconnect the panel instrument set removing
bolts(4 nos.)
2-8
Fig.: Stands
5) Disconnect the battery cables.
FIG.2-15
Note:
-Tilt the steering column rearwards.
-Lift up the panel set and disconnect the wiring
couplers.
5) Remove the cover.
FIG.2-16
To Next Page
