2.ELEMENT AIR CLEANER
(1) SPECIFICATIONS.
Model T303HST/T353HST
Type Dry, paper element filtering type
Rated intake air volume(㎥/min .(cu.ft/min)
4.25(150)
Air venting resistance (㎜Aq)
120 or less
Cyclone efficiency (%) 45 or over
Total filtering efficiency(%) 99.9 or over
Dust holding capacity (gr) 700
Filtering area (㎡)(sq.in) 1.89±4%
Filter material FPG 057512
Temperature
-30~80°C
(2) DISASSEMBLY
1) Element removal
3-8

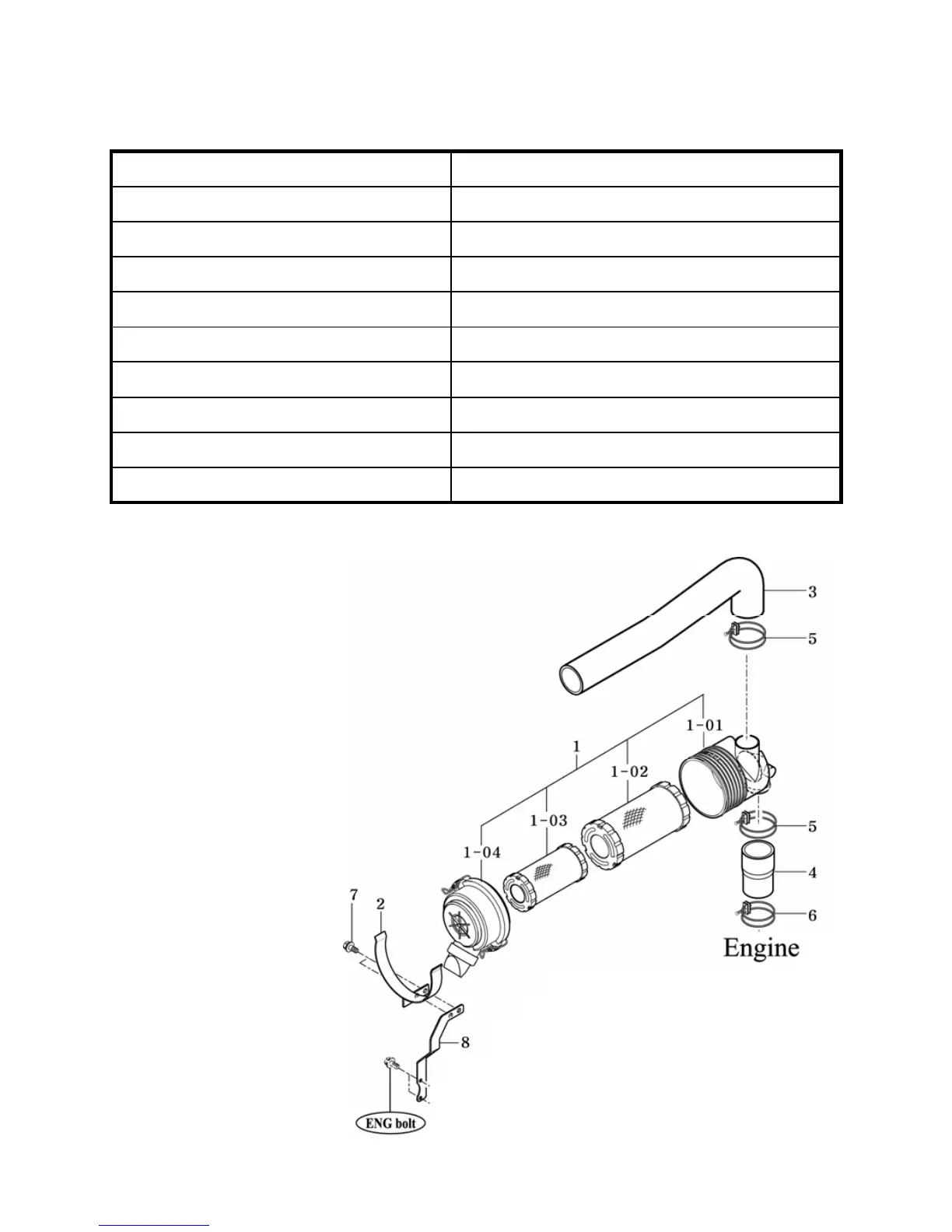

1.Air cleaner Sub assembly
1-01.Body assy
1-02.Body
1-03.Cover
1-04 Cover assy
2.Bracket comp ,guide
3.Hose,air inlet
4.Hose,air outlet
5.Clip,64
6.clip,60
7.Bolt
8.Plate ,stay
Remove the wing bolt which clamps the paper
element and take out the element.
FIG.3-11
