12.Remove washers,springs,pins,and pin retainer.
13.Inspect parts for wear or damage.Replace if
needed.

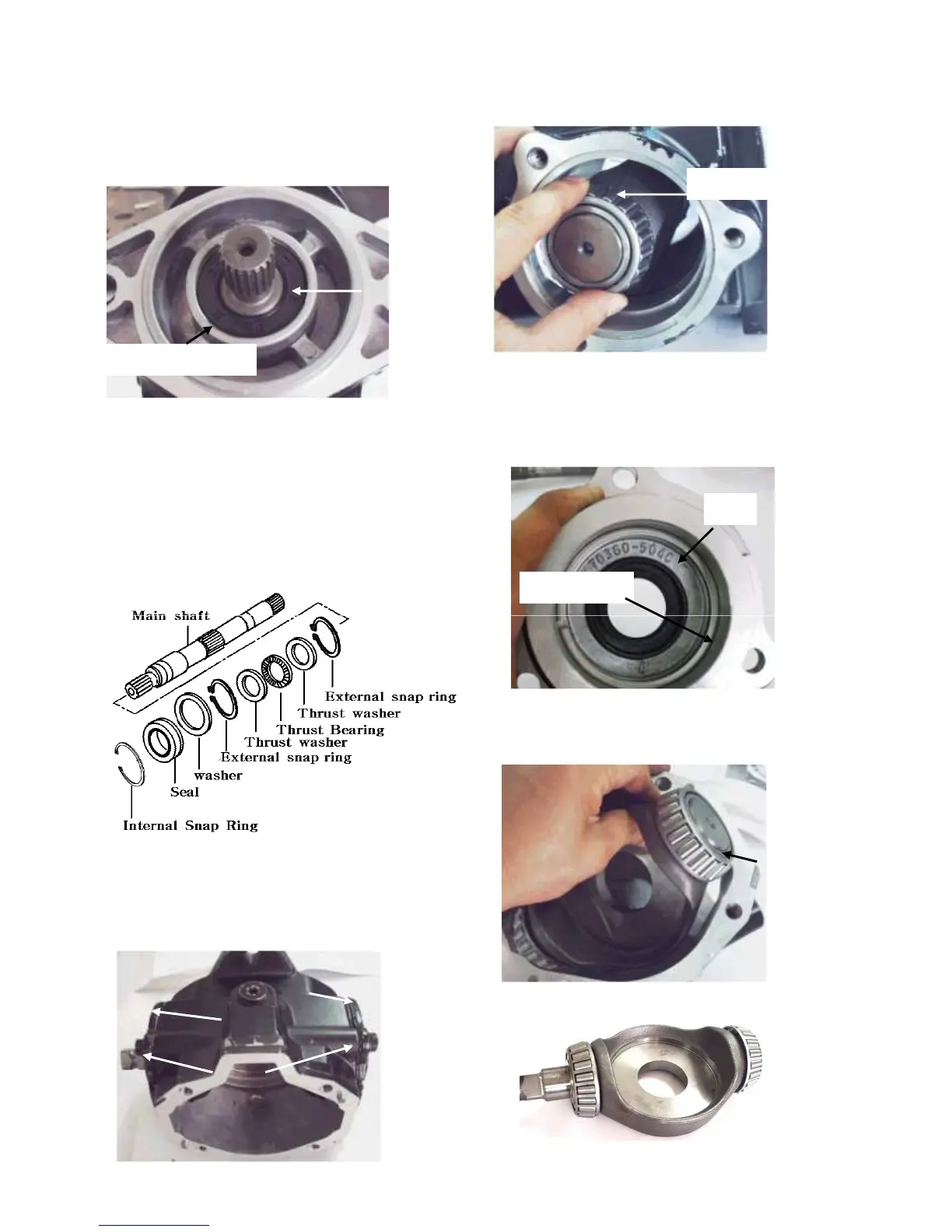

Shaft removal and Disassembly:
1.Remove the internal snap ring retaining the
seal.
NOTE: Use care when pressing shaft out of
housing to prevent shaft from falling to floor
and being damaged.
2. Press the shaft out of the housing from the
back plate side until the seal releases from the
bore.
1.Remove three cap screws and shaft end cap.
2.Remove three cap screws and pain end cap.
3.Remove bearing cones from both ends of the
control shaft.Inspect bearing cones for smooth
operation,wear,or damage.Replace parts as
needed.
Seal
Internal snap ring
Bearing cone
Bearing cup
Seal
3.Remove the seal and washer.
4.Remove the retaining Ring from the shaft.
Remove thrust washers and thrust bearing.
Control disassembly.
4.Replace seal in shaft end cover.
5.Inspect bearing cups for wear or
damage.Replace bearings as needed.
6.Remove cam plate from housing.
4-28
Cap screw
Shaft end cap
Plain end cap
Cam plate
7. Remove shim.
