UD Trucks UD2000 - Page 330

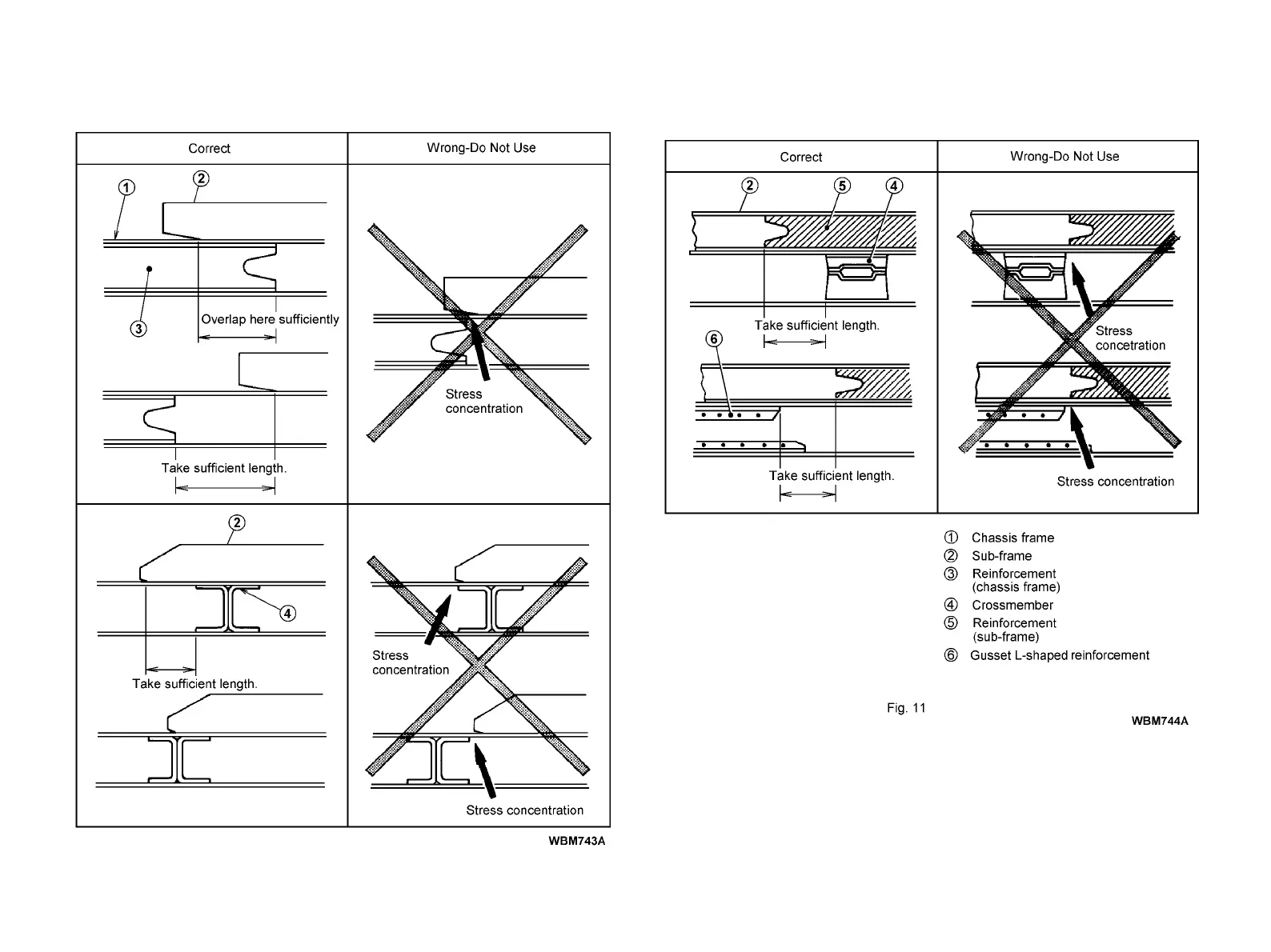

3. POSITIONS OF FRONT-END REINFORCEMENT
The points of the chassis frame where its rigidity changes (e.g.,
crossmember, gusset and reinforcement) must not be located with the
front end (contact point) of the sub-frame or the head and tail of reinforce
-
ment (Fig. 11).
C12
