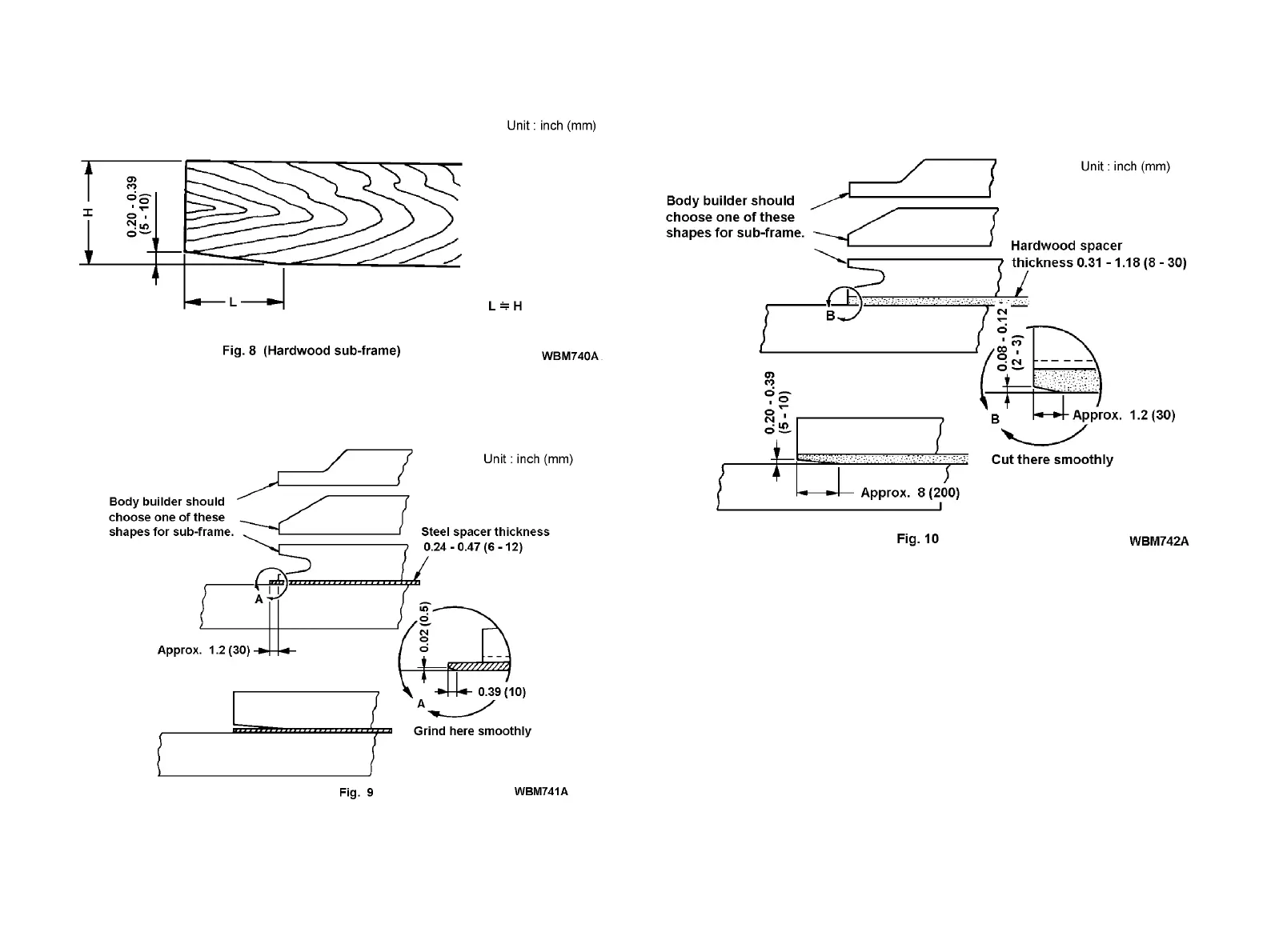

If the material of the sub-frame is hardwood, shape the sub-frame
shape as shown in Fig. 8.
Use a steel spacer to compensate for the uneven surface caused by
the gusset on the chassis frame. Avoid using semi-elastic spacer mate
-
rial.
When using a spacer between the frame and chassis-frame, install
the spacer as shown in Fig. 9 and 10.
C11
