ENKOFORM VMK
Construcción
16
ENKOFORM VMK

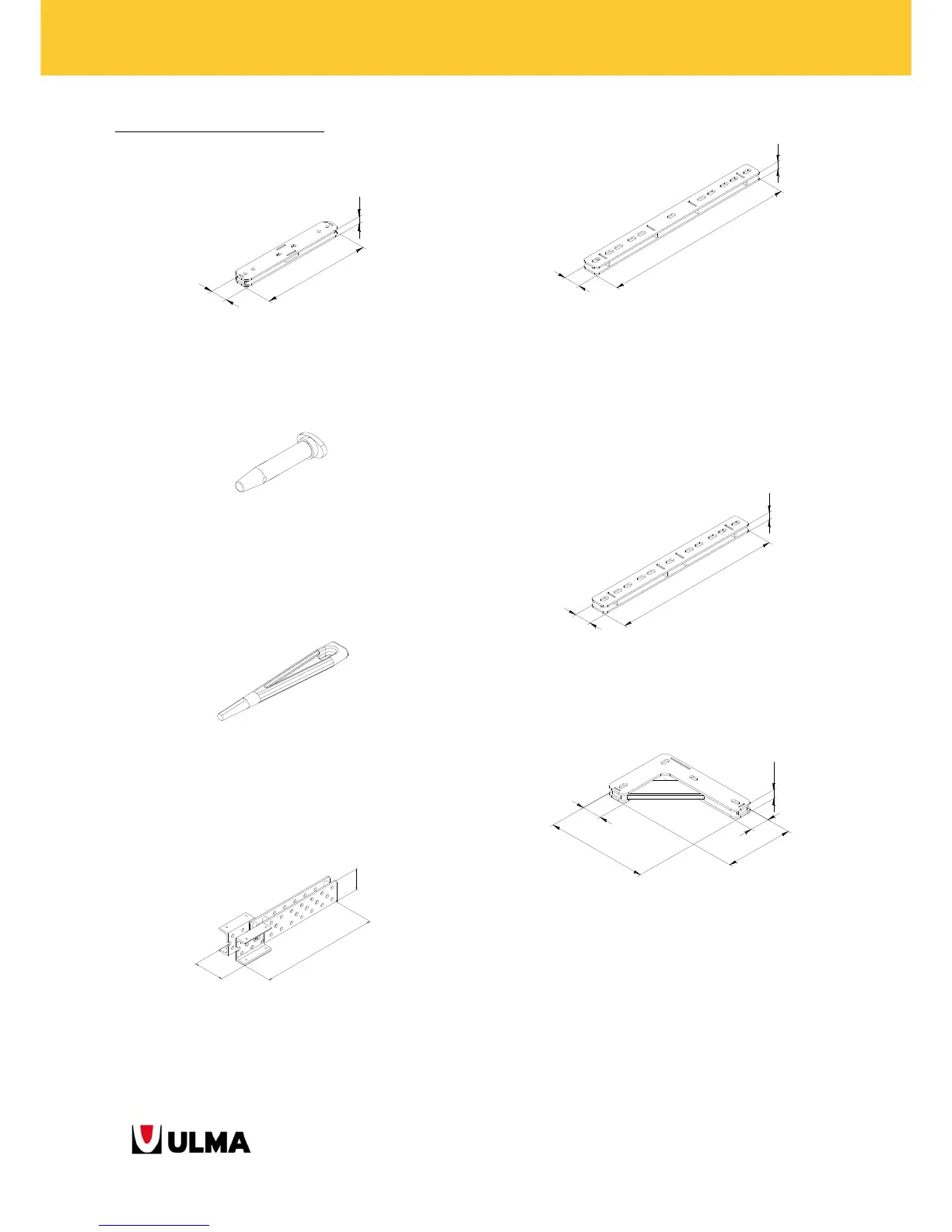

Other components of the system:
WALER CONNECTOR MK:
It joins 2 MK-120 WALERS lengthwise to form a third
one. It is connected by means of 4 PINS E20x70.
PIN E20x70:
It is used with the WALER CONNECTOR MK and the
ARTICULATED ADJUS. CONNECTOR MK.
Each PIN E20x70 will always have a COTTER PIN R/5.
WEDGE MK:
It is the mainly used component to connect different
components between them.
WALER EXTENSION MK:
This component makes it possible to form corner
PANELS, as well as to solve pilasters.
ADJUSTABLE CONNECTOR MK:
It joins 2 MK-120 WALERS to form a third one:
similar function to the WALER CONNECTOR, but with
a very accurate regulation (1mm). (min. gap: 135
mm and max. gap: 152 mm).
It connects PANELS with a closure between them.
PANEL CONNECTOR MK:
It joins two PANELS lengthwise.
It guarantees a hermetic joint.
CORNER CONNECTOR MK:
It connects 2 walers perpendicular to each other.
It will be used to solve:
90º corners.
Pilasters.
Elevator cores.
Columns.
