ENKOFORM VMK
Construcción
17


ENKOFORM VMK

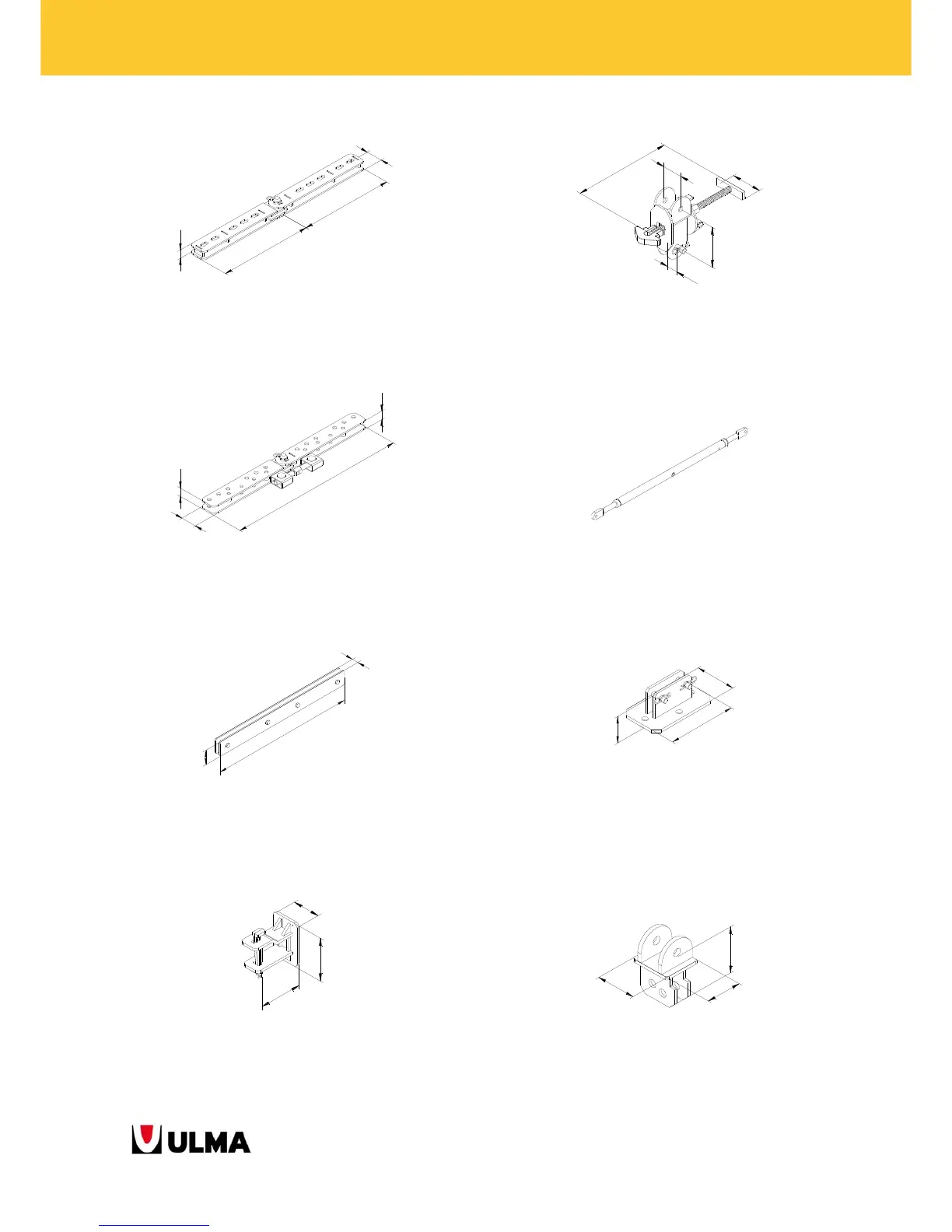

ARTICULATED CONNECTOR MK:
It joins 2 PANELS that form a non 90º angle between
them.
ARTICULATED ADJUS. CONNECTOR MK:
It joins 2 WALERS that form a non 90º angle
between them inside a PANEL.
BEAM VM20 CONNECTION PLATE:
It joins 2 VM20 BEAMS lengthwise.
C-VM20 COUPLING MK:
It creates extra supports of the BEAM VM20 on the
ADJUSTABLE CONNECTOR MK.
PUSH-PULL PROP HEAD:
It allows the joint of PUSH-PULL PROPS to MK-120
WALERS to plumb and stabilise PANELS.
PUSH-PULL PROP:
It plumbs the PANELS and supports the strength of
wind.
PUSH-PULL PROP SHOE:
 It connects PUSH-PULL PROPS to the ground.
 2 PUSH-PULL PROPS can be connected to the
ground at the same time.
RIGHT ANGLE HEAD:
It allows the joint of E PUSH-PULL PROPS to DU-100
or DU-120 WALERS.
