ENKOFORM VMK

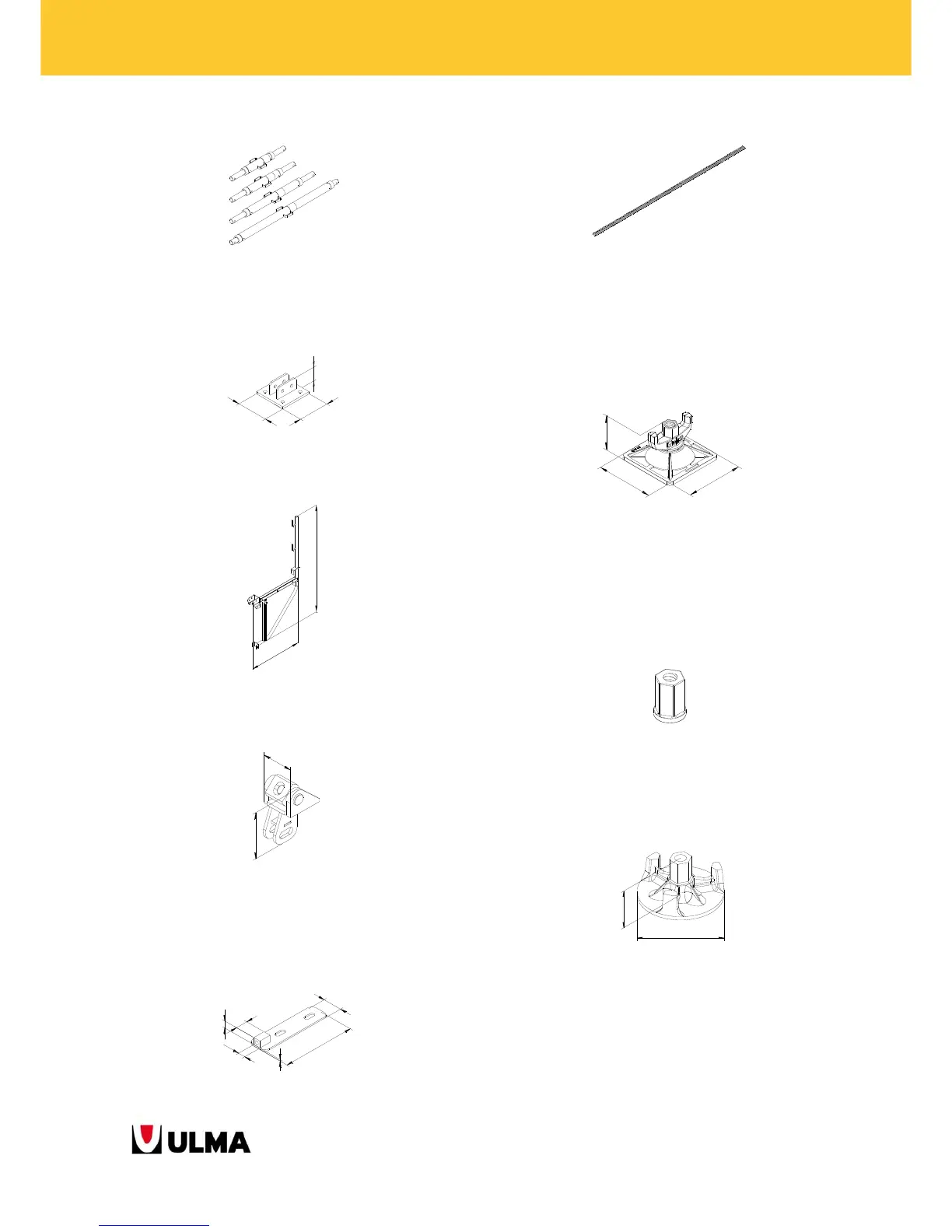

PUSH-PULL PROPS E:
They stand higher loads than the PUSH-PULL PROPS
(if necessary).
PUSH-PULL PROP E SHOE:
It connects PUSH-PULL PROPS E to the ground.
WALKWAY BRACKET E V-100:
It makes possible to assemble walkway platforms.
OUTSIDE CORNER HEAD MK:
 It joins two outer PANELS that form a certain
angle between them.
 Application range: 25º to 65º.
BULKHEAD HEAD MK:
It allows bulkhead solutions.
TIE RODS:
They are used to join two PANELS both in front of
each other (with the BOARD face to face).
PLATE WASHER NUT 15:
 It is used to join TIE RODS 15.
 It allows a maximum inclination of 15º.
HEXAGONAL NUT:
It is a fixing component for TIE RODS 15.
PLATE NUT 15:
 It is used to join TIE RODS 15.
 It does not allow any inclination.
