6 Installing Uponor Timer I-36 for C-35
Uponor Timer I-36 for C-35 is a digital timer with three buttons
on the front to adjust various timing functions.
For instructions how to operate the thermostats, see section 9
Operating digital thermostats, page 26.

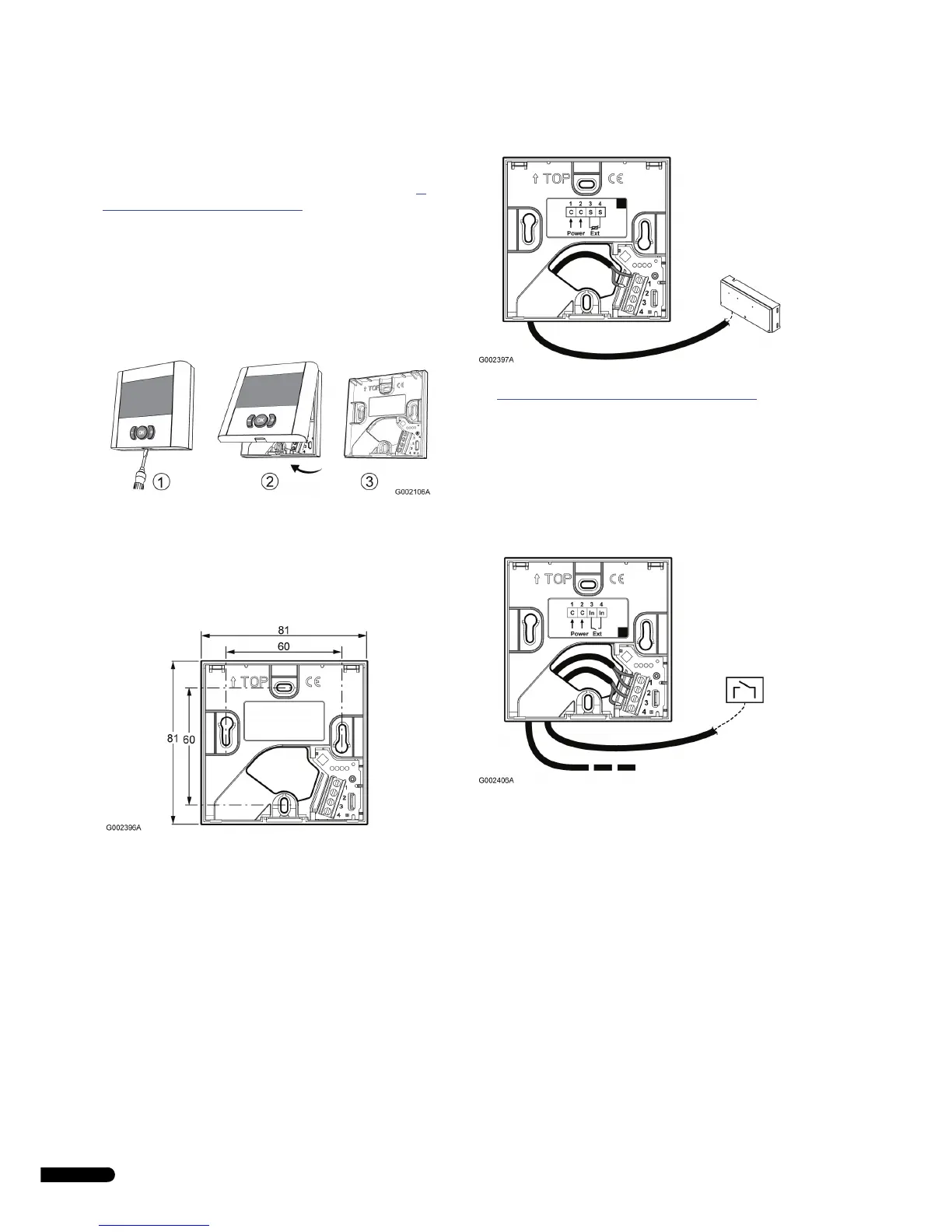

6.1 Opening Uponor Timer I-36
To open Uponor Timer I-36:
1. Gently press the tab at the bottom of the thermostat
housing.
2. Lift off the top part from the mounting frame.
6.2 Mounting Uponor Timer I-36
Uponor Timer I-36 is delivered in a kit including screws and plugs.
The figure below shows required space for the thermostats and
mounting hole positions.
6.3 Connecting Timer I-36 to controller
To connect Uponor Timer I-36 to the controller:
1. Insert the two wires of the timer cable into the connector
terminals labelled 1 and 2.
2. Tighten the screws fixing the wires in the terminal block.
Connecting the cable to the controller is described in section
4.3
Connecting components to controller, page 10.
6.4 Connecting an optional dry contact
It is possible to connect a dry contact input to Uponor Timer I-36,
for example a Uponor Remote Access Module R-56.
1. Insert the two wires of the dry contact cable into the
connector terminals labelled 3 and 4.
2. Tighten the screws fixing the wires in the terminal block.
