UPONOR CONTROL SYSTEM WIRED - INSTALLATION AND OPERATION MANUAL
15

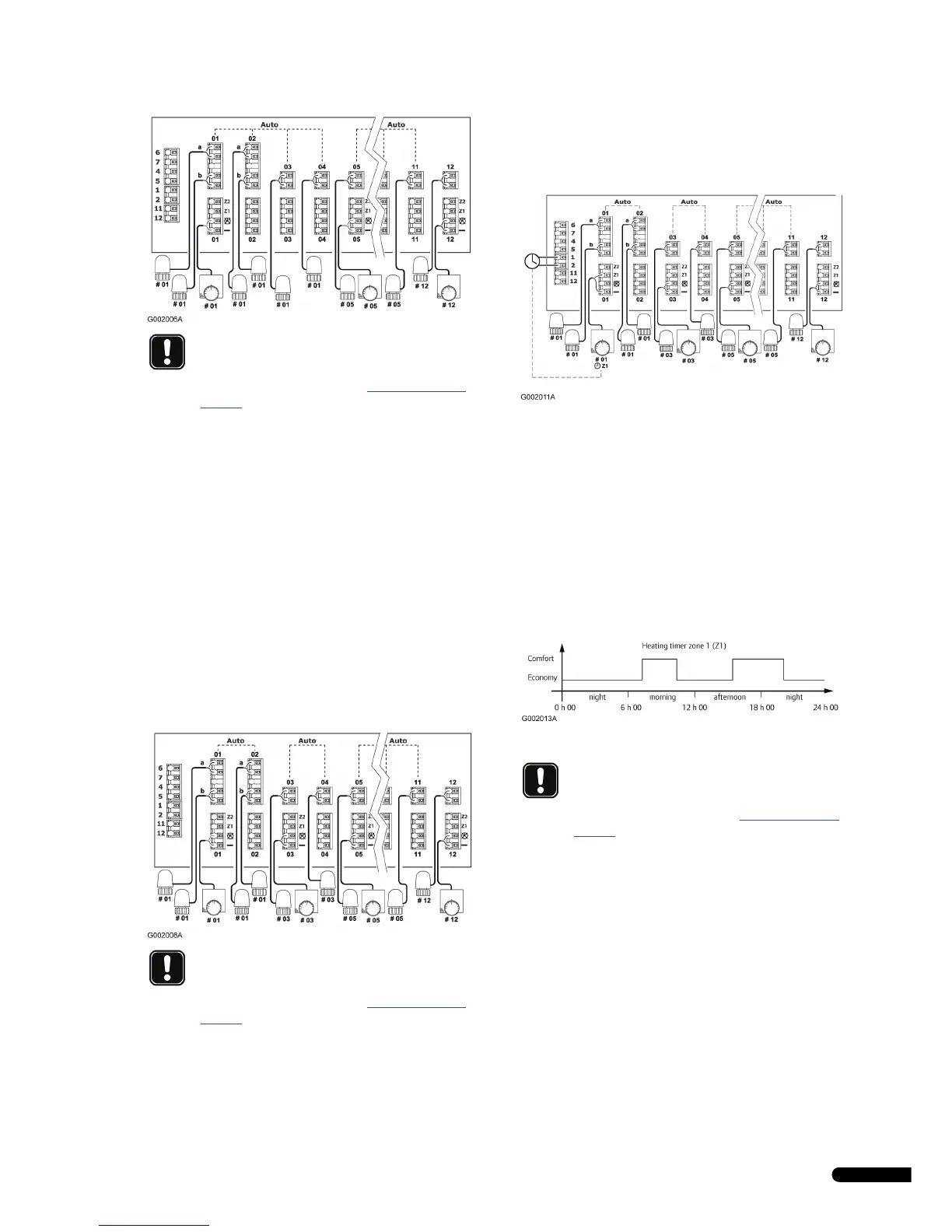

4.4.3 Uponor Controller C-35 with four thermostats
and without timer
A connection example of Uponor Controller C-35 using four
thermostats is shown in the figure below.
• Thermostat #01 controls the actuators on channels 01a, 01b,
02a,and 02b
• Thermostat #03 controls the actuators on channels 03 and 04
• Thermostat #05 controls all actuators on channels 05 to 11
• Thermostat #12 controls the actuator on channel 12
The installation will work in a standard way with the thermostats
regulating each room according to their set temperatures.
See also the wiring diagram on the foldout page.
4.4.4 Uponor Controller C-35 with four thermostats
and timer
A connection example of Uponor Controller C-35 using four
thermostats is shown in the figure below.
Thermostats and actuators
• Thermostat #01 controls the actuators on channels 01a, 01b,
02a,and 02b
• Thermostat #03 controls the actuators on channels 03 and 04
• Thermostat #05 controls all actuators on channels 05 to 11
• Thermostat #12 controls the actuator on channel 12
Timer
• The timer controls the switching between comfort and
economy modes for Thermostat #01, see example diagram
below
See also the wiring diagram on the foldout page.
4.4.5 Uponor Controller C-35 with four thermostats,
timer and heating–cooling switch
A connection example of Uponor Controller C-35 using four
thermostats, a timer, and a heating–cooling switch is shown in
the figure below.
NOTE!
When connecting thermostats and actuators to the
Uponor Controller, the auto-linking rules must always
be followed strictly. See section 4.3.2
Auto linking,
page 11
Any disregard to follow the auto linking rules will
result in erroneous function of the Uponor Controller.
NOTE!
When connecting thermostats and actuators to the
Uponor Controller, the auto-linking rules must always
be followed strictly. See section 4.3.2
Auto linking,
page 11
Any disregard to follow the auto linking rules will
result in erroneous function of the Uponor Controller.
NOTE!
When connecting thermostats and actuators to the
Uponor Controller, the auto-linking rules must always
be followed strictly. See section 4.3.2
Auto linking,
page 11
Any disregard to follow the auto linking rules will
result in erroneous function of the Uponor Controller.
