UPONOR CONTROL SYSTEM WIRED - INSTALLATION AND OPERATION MANUAL
6
3Description
Uponor Control System Wired is a management system for
underfloor heating and cooling installations. Comfort, user-
friendliness and temperature control for each individual room of
a home can be combined through the use of thermostats or floor
temperature sensors.
3.1 System overview
Uponor Control System Wired consists of a controller,
thermostats, actuators and an optional timer. The controller
manages the operation of the actuators when the thermostats
detect a demand for heating or cooling.
Uponor Control System Wired is controlled by different types of
thermostats. Designed for maximum comfort, the thermostats
communicate with the controller by non-polarized two wired
cables. It is possible to mix the different types of Uponor wired
thermostats in the same installation.

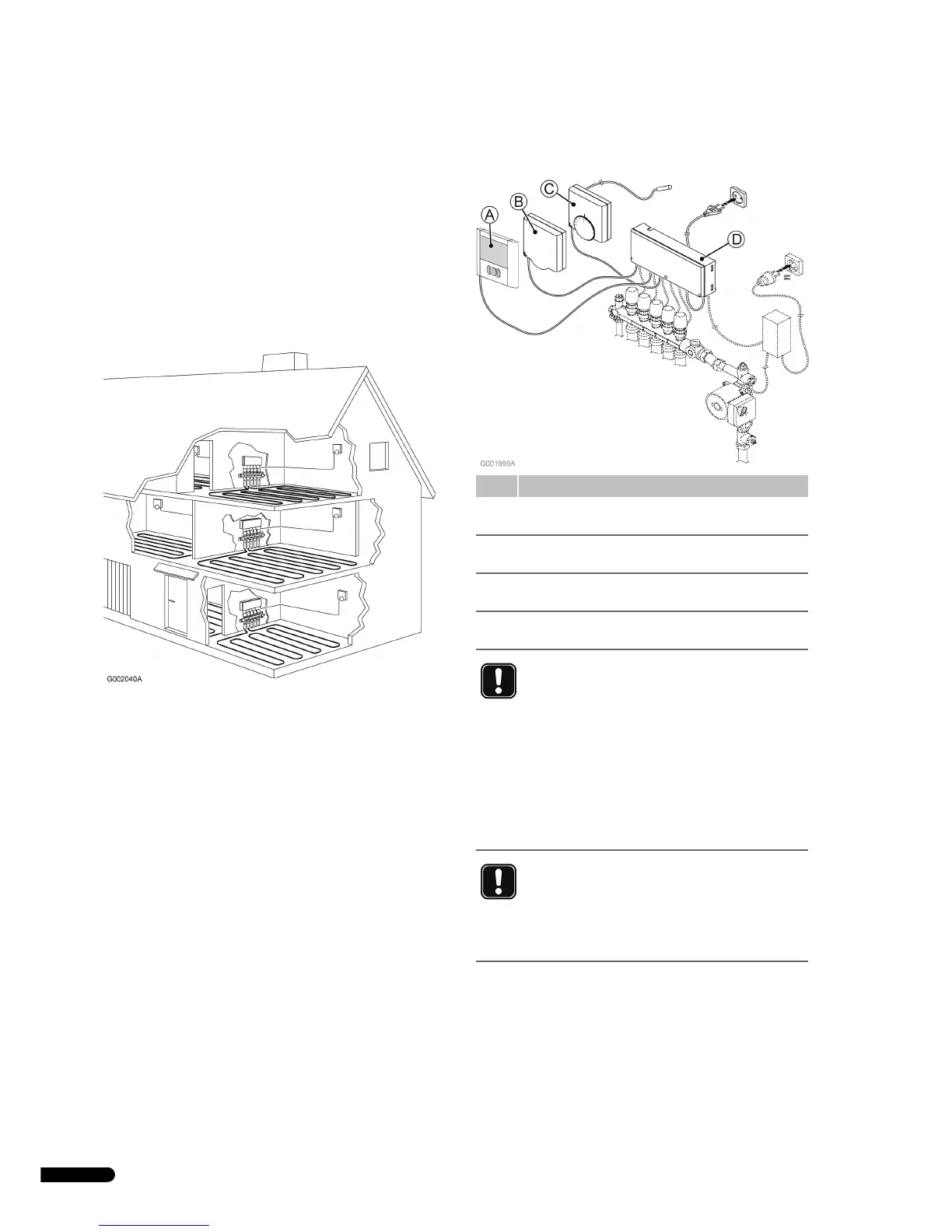

3.2 Example of a system
Pos. Description
A Uponor Thermostat T-36 wired with the option of
adding a floor sensor
B Uponor Thermostat Public T-33 wired with the option
of adding a floor sensor
C Uponor Thermostat T-37 wired with the option of
adding a floor sensor
D Uponor Controller, 6 Channels C-33 Wired or
Uponor Controller, 12 Channels C-35 Wired
The floor sensor can be used for maximum or
minimum limitation of the floor temperature,
regardless of the room temperature. The floor sensor
can be used with Uponor thermostats T-33,T-36,
T-37 and T-38
For example, the maximum limitation can protect a
sensitive floor covering from exposure to too high
temperature when there is a high heating demand.
The minimum limitation can keep a tiled floor warm
even when there is a no general demand for heat
supply to the room.
NOTE:
Auto-balancing is now possible with Uponor Control
System Wired. If the auto-balancing function is used,
it is recommended to use it for the whole system.
Uponor Digital Thermostats T-36 and T-38 are
equipped with the auto-balancing function.
