3.3 Uponor Control System Wired
components
3.3.1 Controllers
There are two alternative controllers in Uponor Control System
Wired. The figure below shows a controller with actuators and
thermostats.
Uponor Controller, 6 Channels C-33 Wired
The Uponor Controller, 6 Channels C-33 Wired controls up to 6
thermostats and 8 actuators connected to the hydraulic system of
the installation.
The controller drives the actuators according to the information
received from each thermostat and according to the system
parameter settings.
The controller is typically located near the hydraulic system
manifolds.
The window in the actuator shows when a valve is open or closed.
Uponor Controller, 12 Channels C-35 Wired
The Uponor Controller, 12 Channels C-35 Wired controls up to 12
thermostats and 14 actuators connected to the hydraulic system
of the installation.
The controller drives the actuators according to the information
received from each thermostat and according to the system
parameters settings.
The controller is typically located near the hydraulic system
manifolds.
The window in the actuator shows when a valve is open or closed.
Several extensions can be added on to the 12-channel controller:
• A timer can be used to add energy saving features in one or
two independent timer zones
• If the installation is equipped with a cooling unit, Uponor
Control System Wired can be run through a heating–cooling
relay
• If the installation is equipped with a cooling unit, a dew point
sensor can be connected to the control system

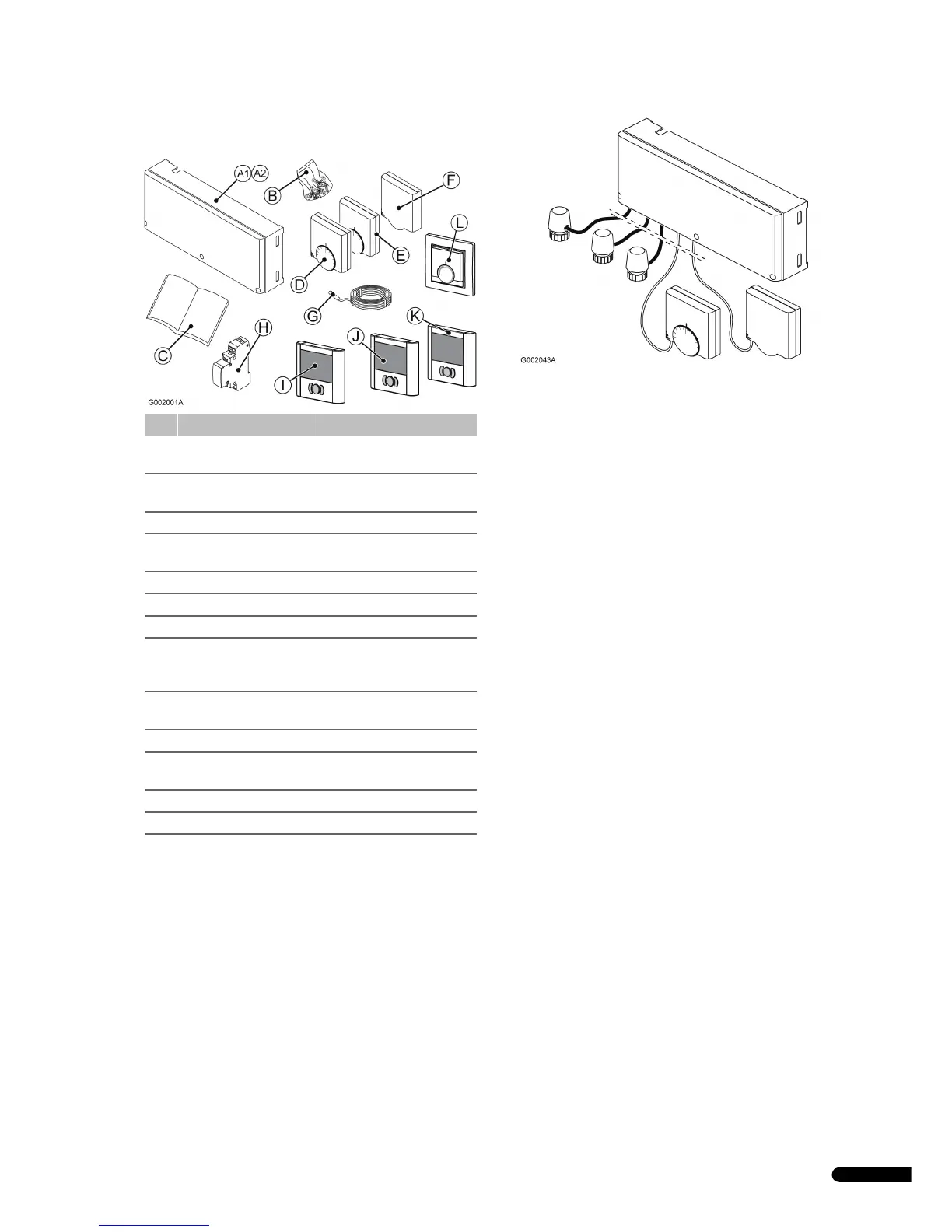

Pos. Uponor designation Description
A1 Uponor Controller, 6
Channels C-33 Wired
6-channel controller
A2 Uponor Controller, 12
Channels C-35 Wired
12-channel controller
B Mounting screws and plugs
C Installation and Operation
Manual
D Uponor Thermostat T-35 Thermostat
E Uponor Thermostat T-37 Thermostat for floor sensor
F Uponor Thermostat T-33 Public thermostat
G Uponor Floor sensor Floor sensor for Thermostats
T-36,T-38, T-33 and T-37
(option)
H Uponor Relay Optional heating-cooling
relay
I Uponor Timer I-36 Optional timer
J Uponor Thermostat T-38 Digital thermostat with timer
functions
K Uponor Thermostat T-36 Digital thermostat
L Uponor Thermostat T-34 Thermostat flush
