"terminal to function" (ttf) programming principle vacon • 11
24-hour support +358 (0)40 837 1150 • Email: vacon@vacon.com
5
5.2 Defining a terminal for a certain function with NCDrive programming tool
If you use the NCDrive Programming Tool for parametrizing you will have to establish the connec-
tion between the function and input/output in the same way as with the control panel. Just pick the
address code from the drop-down menu in the
Value
column (see the Figure below).

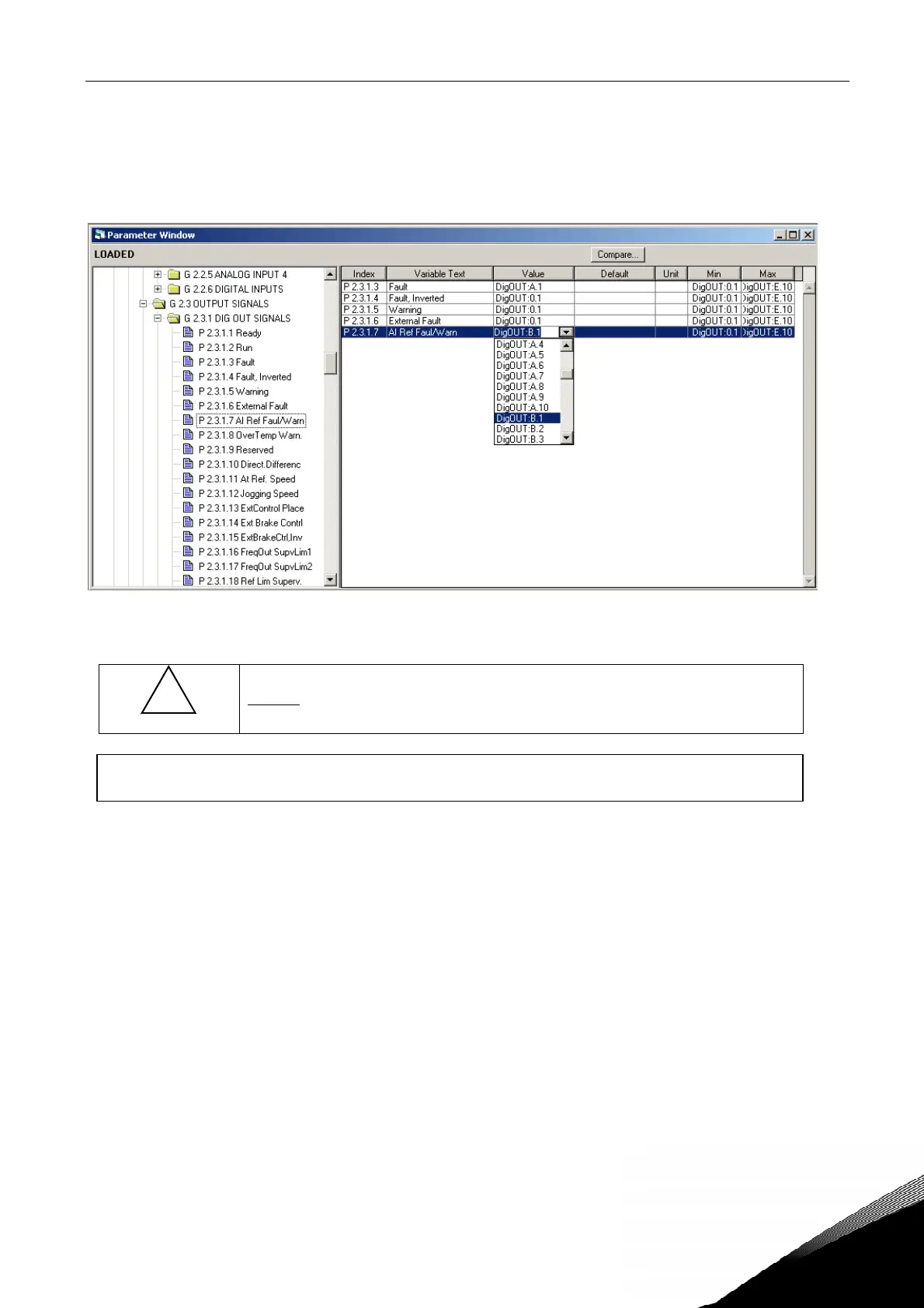

Figure 1. Screenshot of NCDrive programming tool; Entering the address code
!
WARNING
Be ABSOLUTELY sure not to connect two functions to one and same
output
in order to avoid function overruns and to ensure flawless
operation.
Note: The
input
, unlike the
output
, cannot be chan
ed in RUN state.
