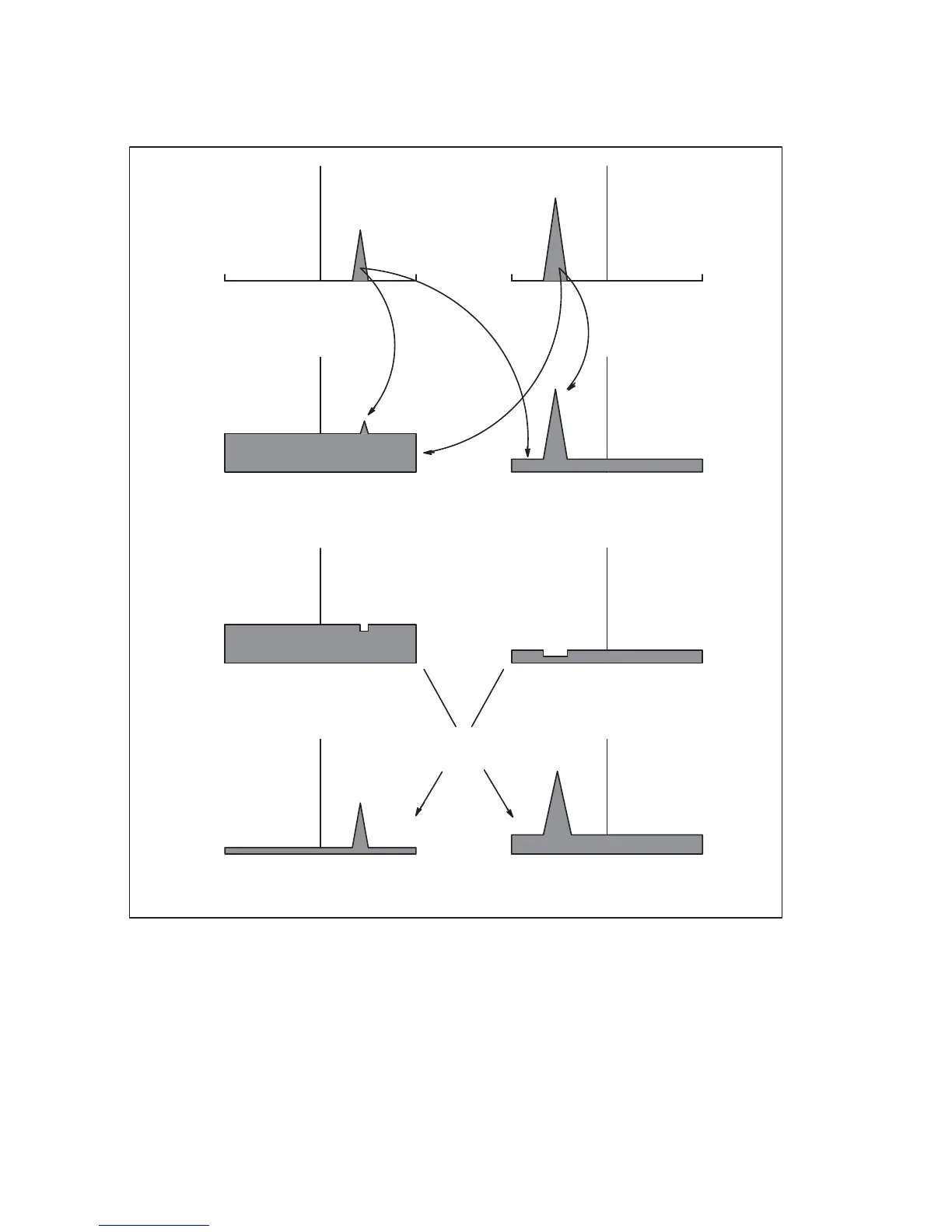

Figure 53 Random Phase Processing Algorithm
Ideal 1st Trip
Ideal 2nd Trip
Raw 1st Trip with
2nd Trip Noise Contamination
Raw 2nd Trip with
1st Trip Noise Contamination
Filtered 1st Trip
Filtered 2nd Trip
Inverse Transfrom
and Re-Cohere
Recovered 1st Trip Recovered 2nd Trip
