Appendix F ___________________________________________________ RCP902 WSR98D Panel
VAISALA______________________________________________________________________ 457
F.5 RCP902 WSR98D Panel Architecture
The RVP902 server connects to the RVP900 IFDR, which connects to the
RCP902 WSR98D panel. The RCP902 WSR98D panel connects to the
radar. An separate external power supply connects to RCP902 WSR98D
panel.
0916-023

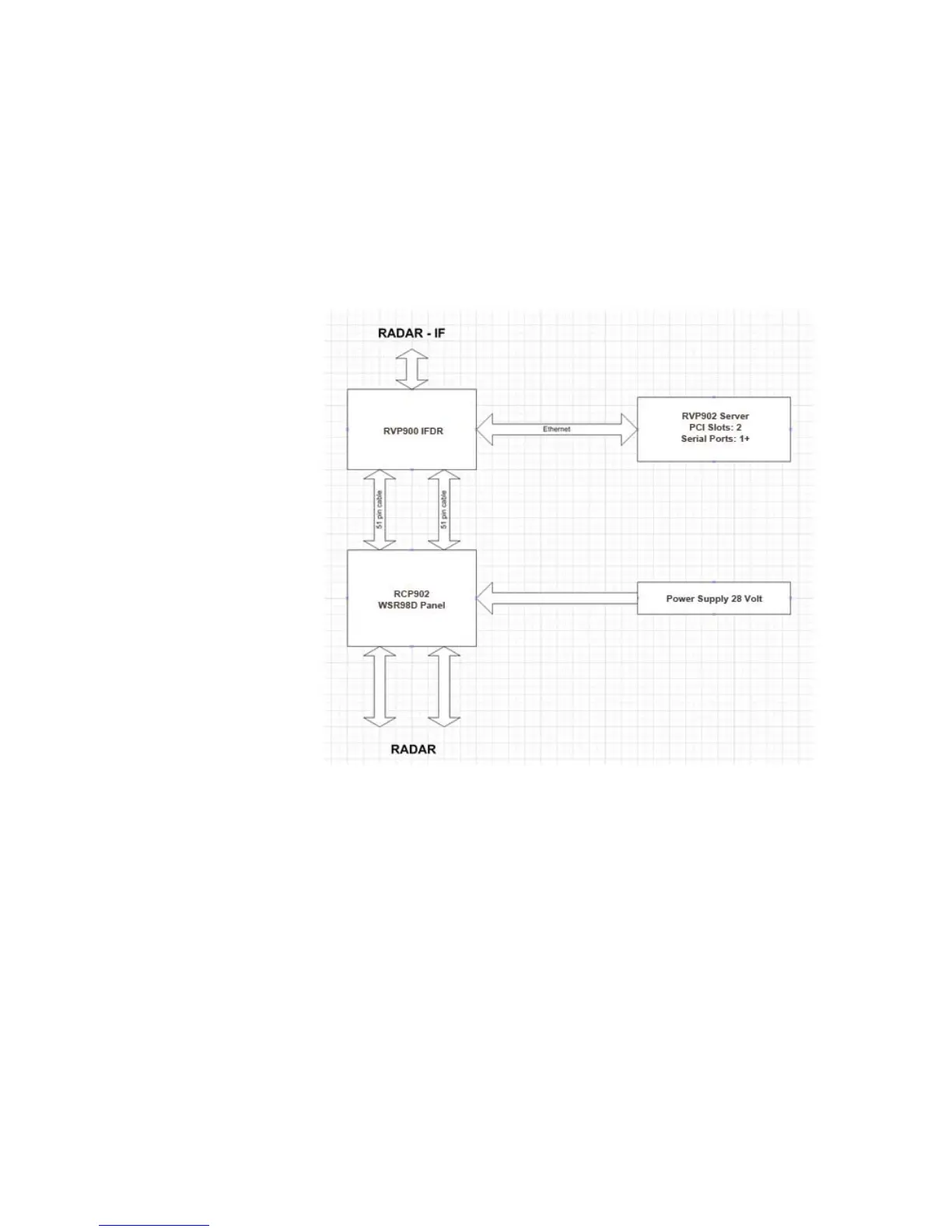

Figure 75 RCP902 Architecture
The RVP902 software allows you to set and configure the RCP902
WSR98S panel (with IRIS8.13.1 or higher) for the specific radar needs.
The RCP902 WSR98D is designed to connect to WSR98D radar
interfaces.
