USER’S MANUAL__________________________________________________________________
352 _________________________________________________________________ M211322EN-D
0916-203

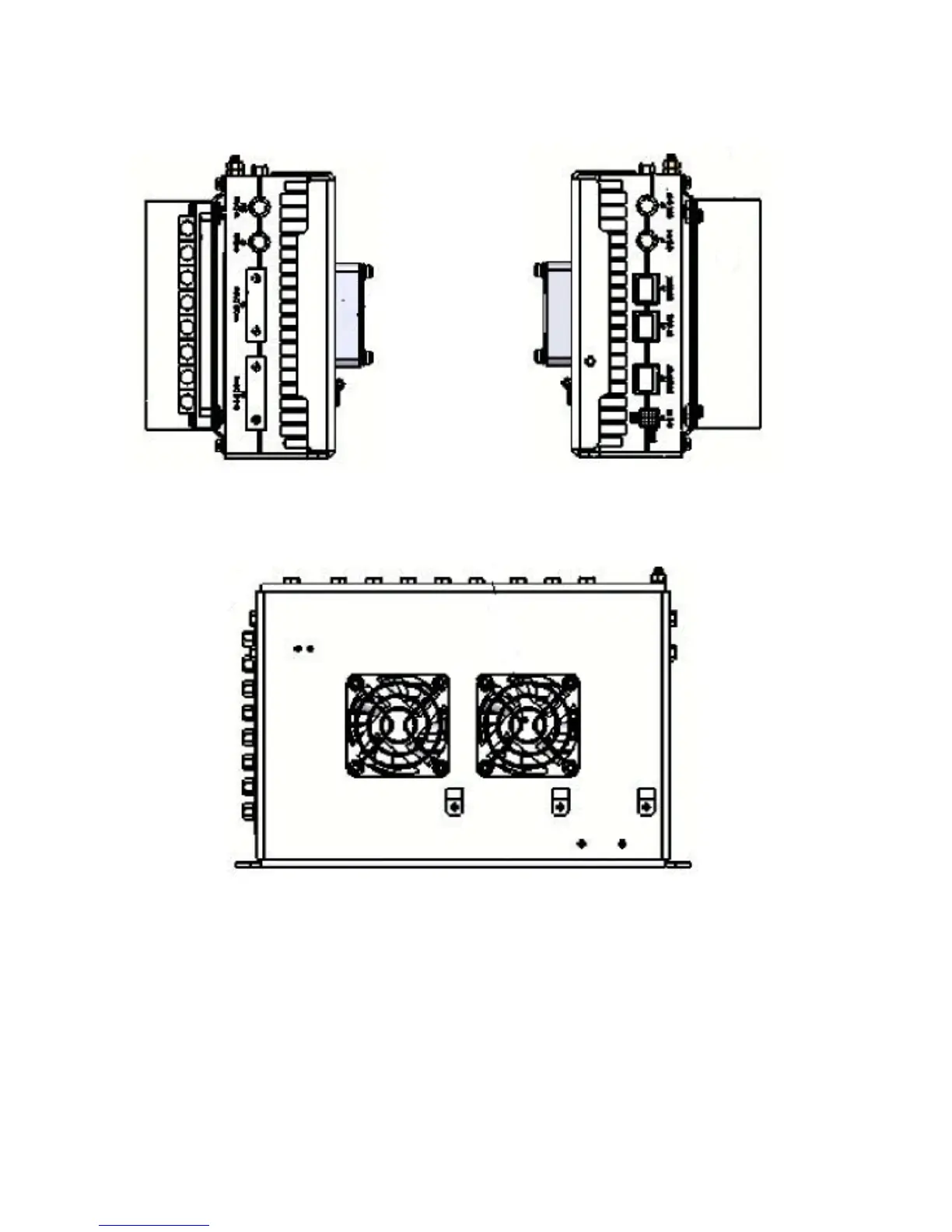

Figure 55 IFDR - Right and Left Sides
0916-203
Figure 56 IFDR - Fan Side (Heat Sink)
B.4.1 Generic I/O Interconnect Breakout
Cable
A generic interconnect cable is available to breakout each of the 51-pin
micro “D” connectors on the IFDR into a standard 25-pin and 37-pin
