Appendix B _______________________________________________________ RVP900 Packaging
VAISALA______________________________________________________________________ 351
Mounting space should also be reserved for the external analog anti-alias
filters. These filters can be mounted in the radar cabinet itself, or they can
be attached directly to the IFDR on the opposite side of the power supply.
The filters and mounting bracket add 2.0 cm (0.8 in) of overall width.
0916-202

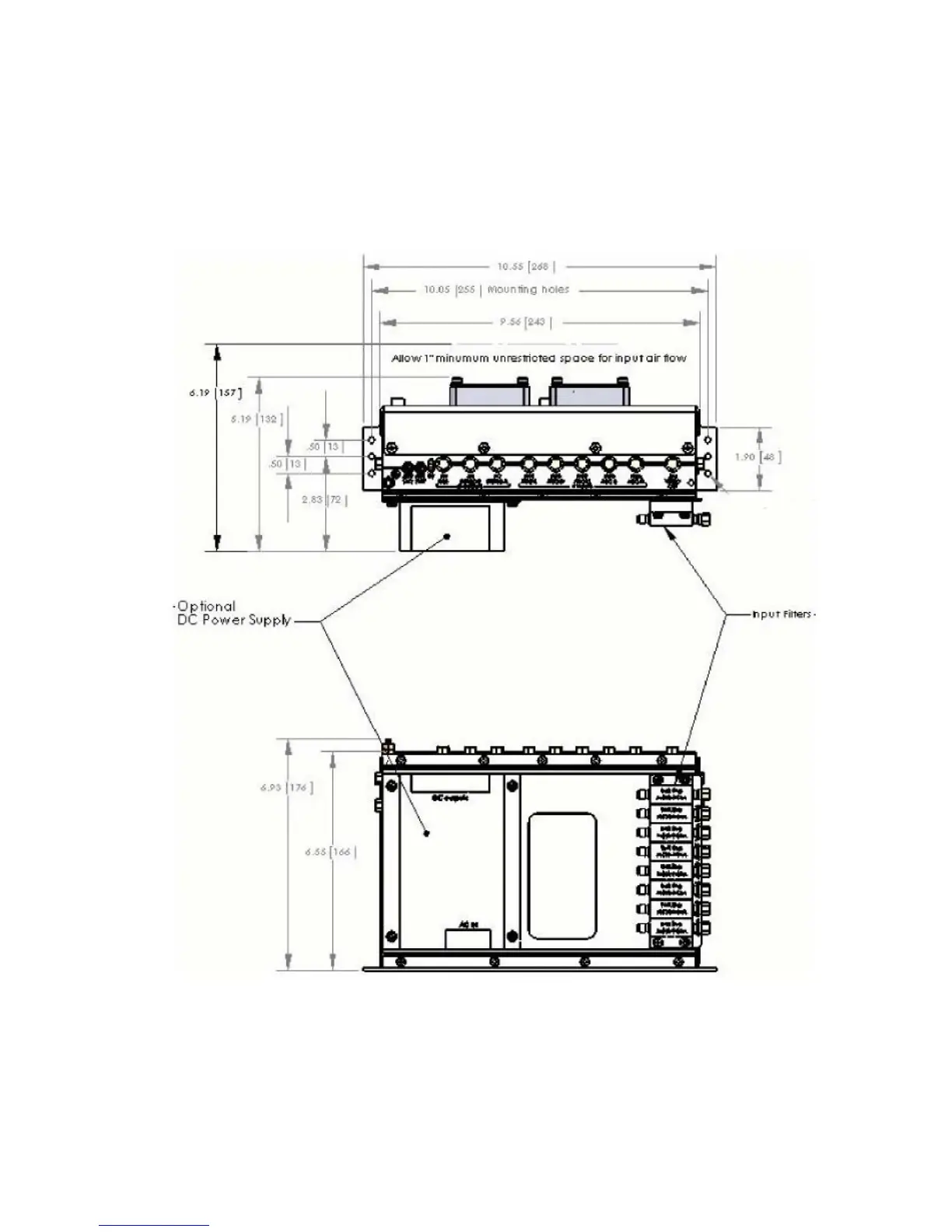

Figure 54 IFDR - Top and Front Face
