2.12 System Network Architecture
The RVP900 provides considerable flexibility for network operation. This
allows remote control and monitoring of the system from virtually
anywhere on the network, subject to the user's particular security
restrictions.
0916-023

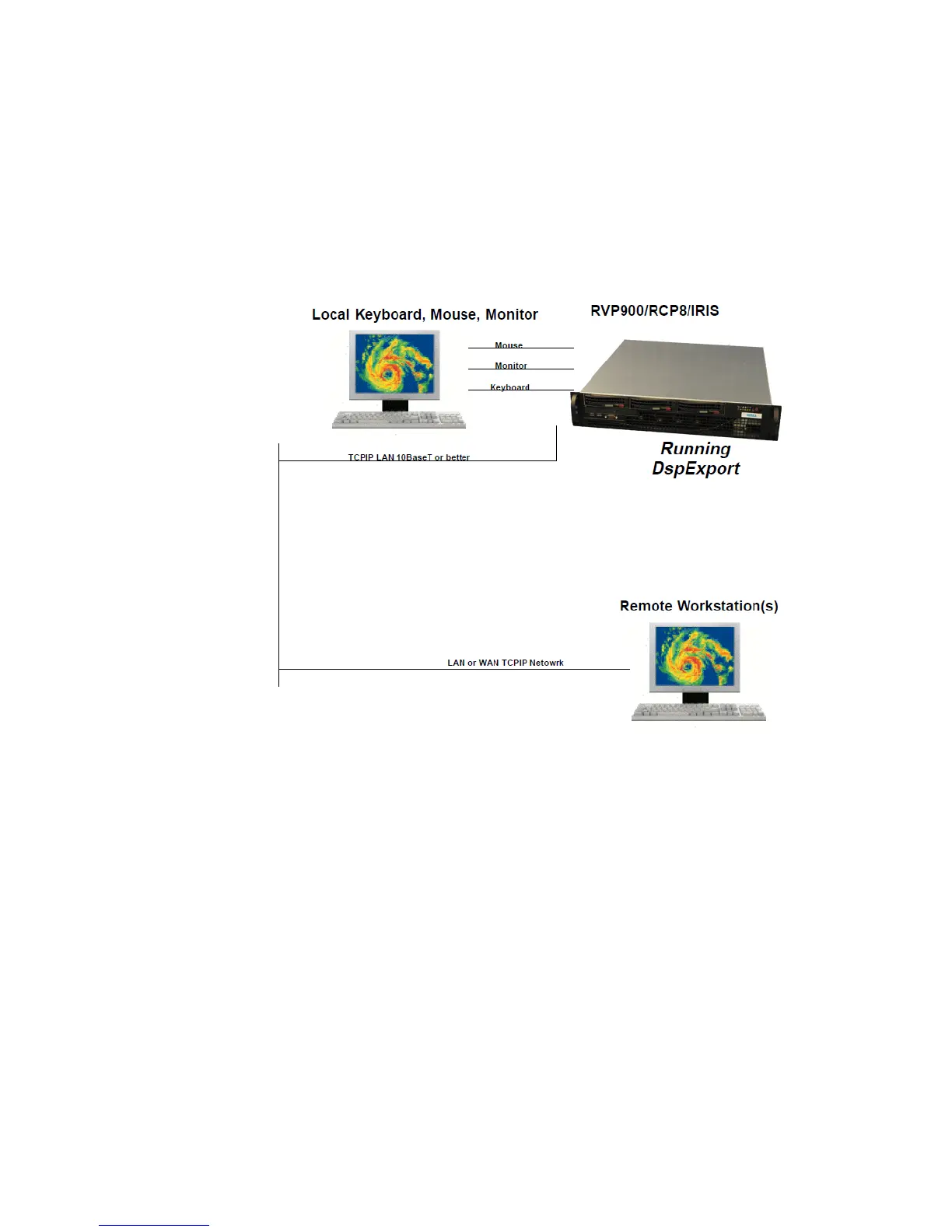

Figure 17 Network Architecture
The "dsp lib" runs locally on the RVP900. A utility, called DspExport,
exports the library over the network using a TCP/IP socket. Typically the
controlling application is on the same computer, but DspExport may be
exported to a remote host radar control workstation (RCW) on the network.
If this workstation is running the IRIS software, at least a 10BaseT
connection is recommended.
A remote workstation on the network can also use the DspExport
technique to communicate for configuration, monitoring, and diagnostic
testing.
