USER’S MANUAL__________________________________________________________________
488 _________________________________________________________________ M211322EN-D
G.7 Electrical Interfaces
0916-023

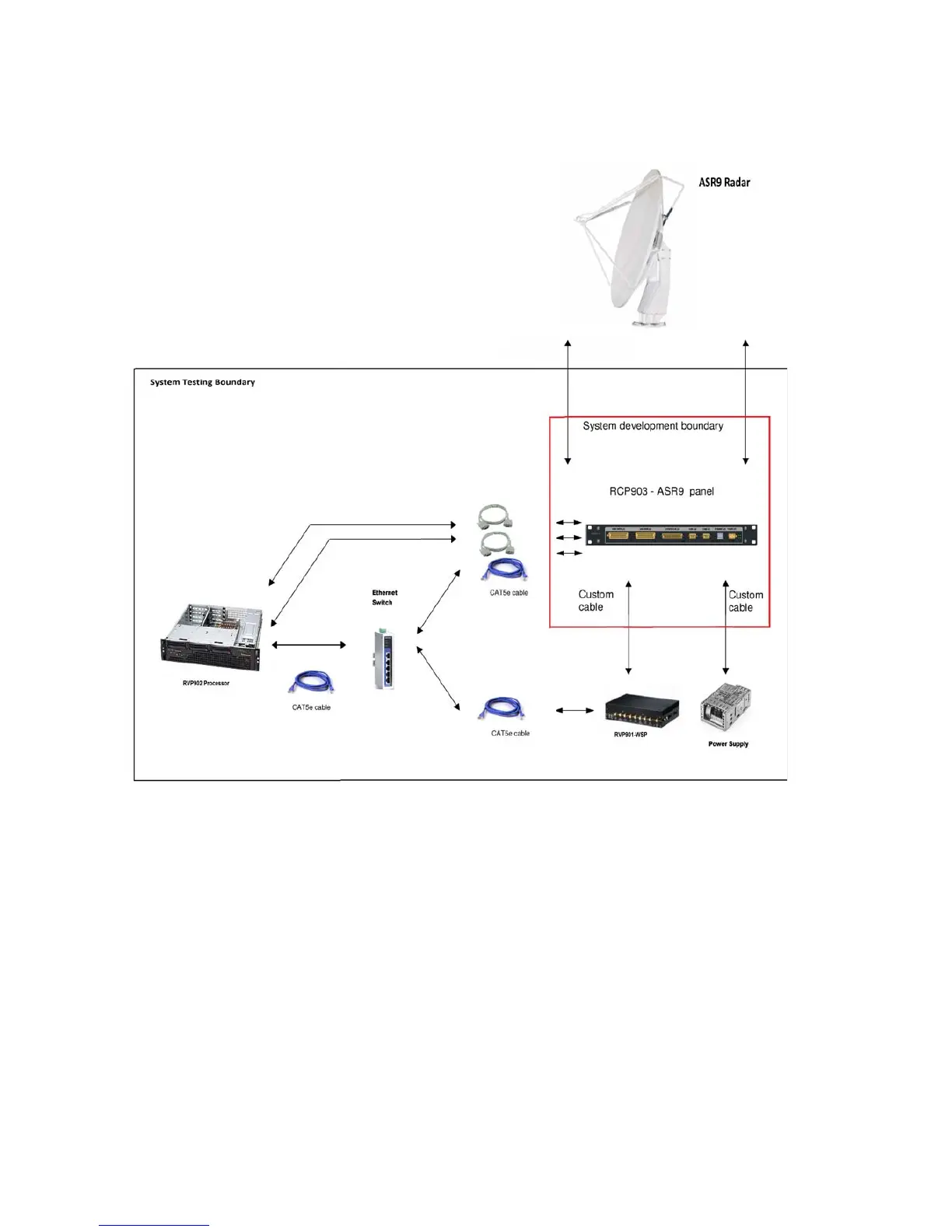

Figure 89 System Testing Boundary
G.7.1 Interconnect Cabling
There are several classes of signals for the RCP903 ASR9-WSP Panel. The
signal descriptions have a format to identify relational information.
- The RVP902 Processor attaches to the RCP903 ASR9-WSP Interface
Panel using: 2 - DB9 to DB9 standard serial cables.
- The RVP902 Processor attaches to the Ethernet switch using: 1 -
223156 Ethernet Cable (Ethernet CAT5E).
