E.6.1 RVP900 in Normal Real-Time
Operation
0916-212

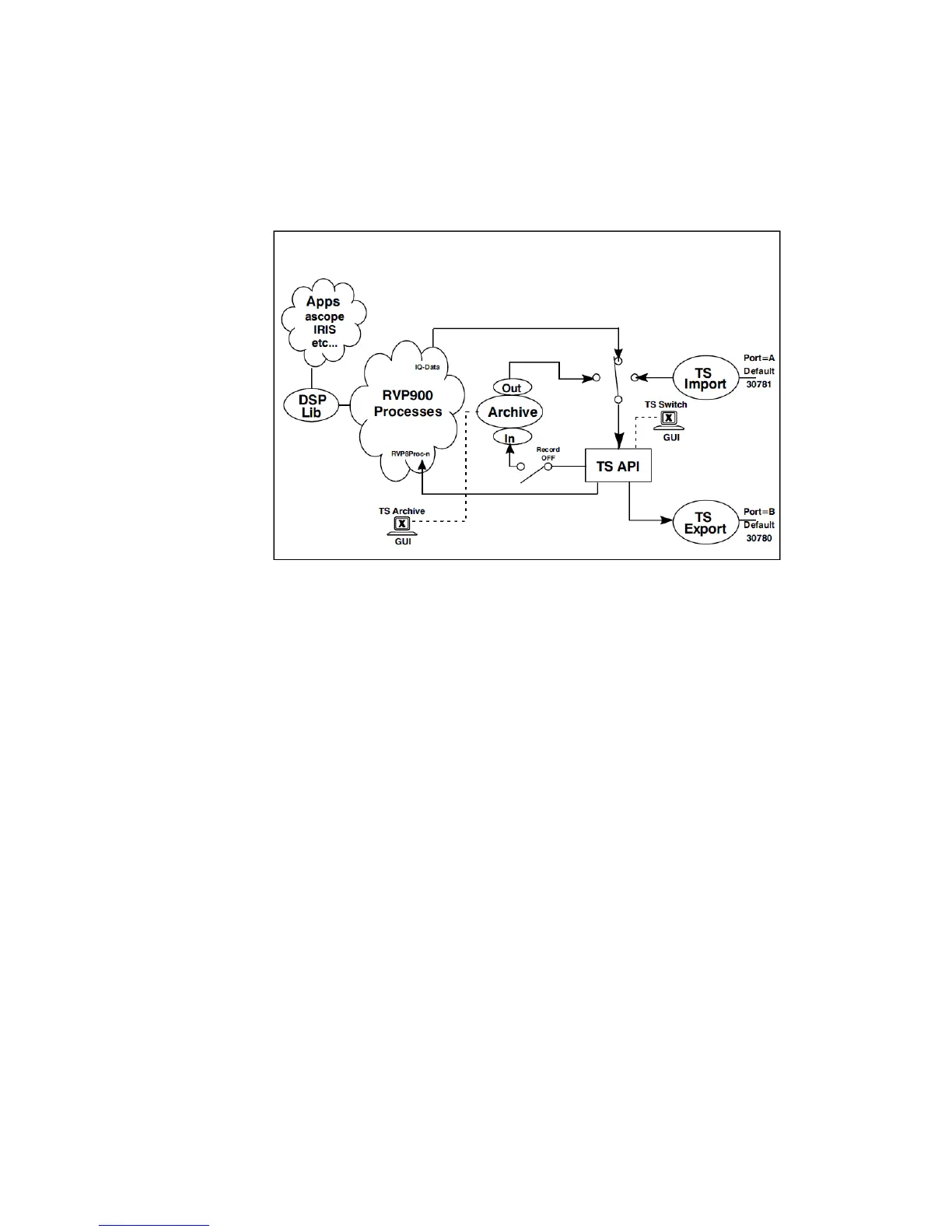

Figure 69 RVP900 in Normal Real-Time Operation
In this case, the TS Switch is set to write real-time data from the IQ-Data
process to the TS API. The RVP9Proc-n extracts time series data and
processes it. The configuration information is obtained from and data are
passed to the various user applications through the DSP Lib functions. The
TS Export process, if started, can extract data simultaneously from the TS
API.
Utility Settings
TS Switch: Local RVP900
TS Archive: N/A
