USER’S MANUAL__________________________________________________________________
490 _________________________________________________________________ M211322EN-D
0916-023

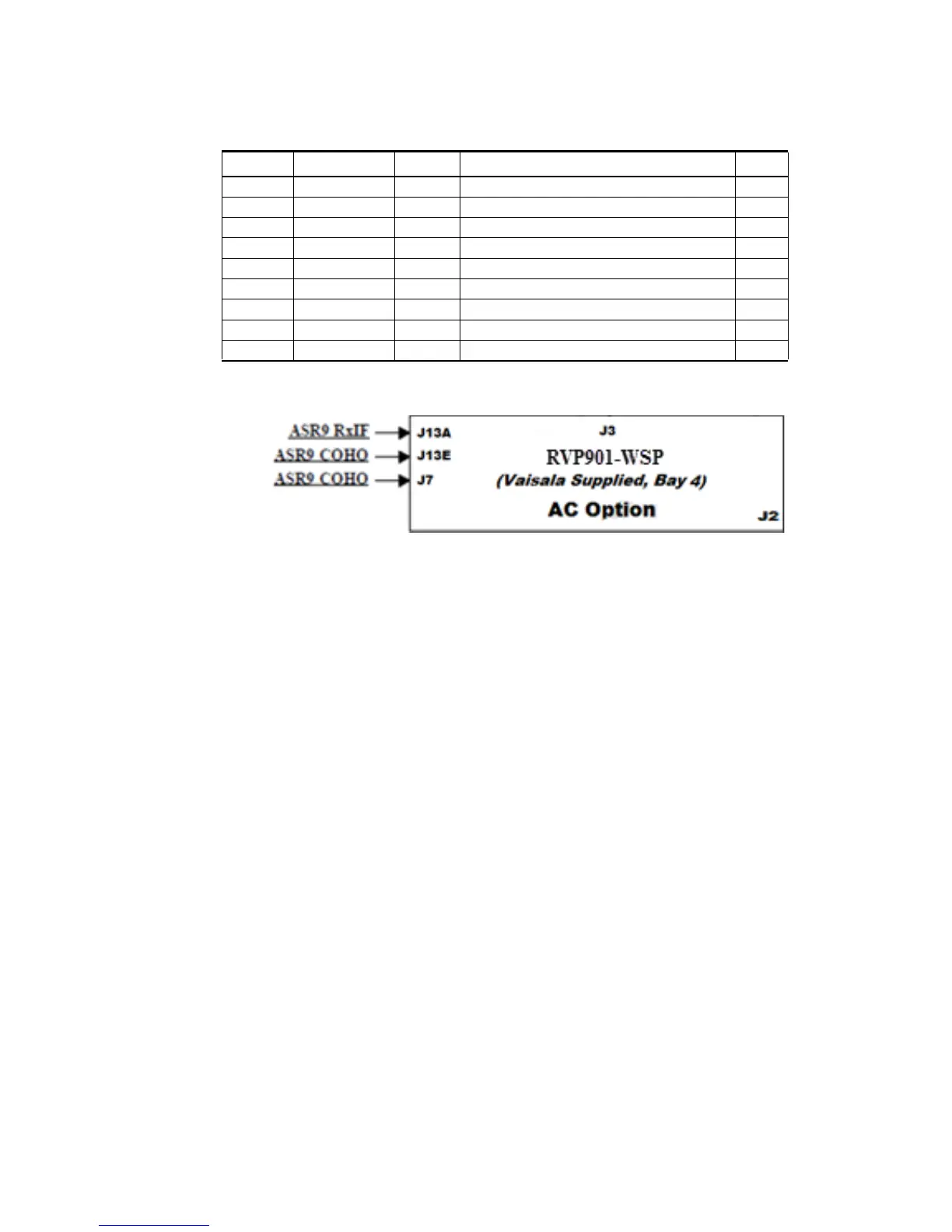

Figure 90 Vaisala Supplied, Bay 4
J11 TxDAC-B SMA Direct Transmit IF output N
J12 TxDAC-A SMA Same as J11 N
J13A ADC-A SMA Direct IF Input. IF-1 for single channel Y
J13B ADC-B SMA Direct IF Input. IF-2 for 2nd pol. N
J13C ADC-C SMA Direct IF Input N
J13D ADC-D SMA Direct IF Input N
J13E ADC-E SMA Direct IF Input. Burst Sample Input Y
J14 VIDEO OUT SMA Video DAC output N
J15 TRIG-A SMA General purpose trigger I/O or DAFC intf N
Table 37 RVP901-WSP SMA Connector Summary
J-ID Label Type Description Use
