8 Connections
8.1 Rear panel view
VM265.EN011
VAMP 24h support phone +358 (0)20 753 3264
183

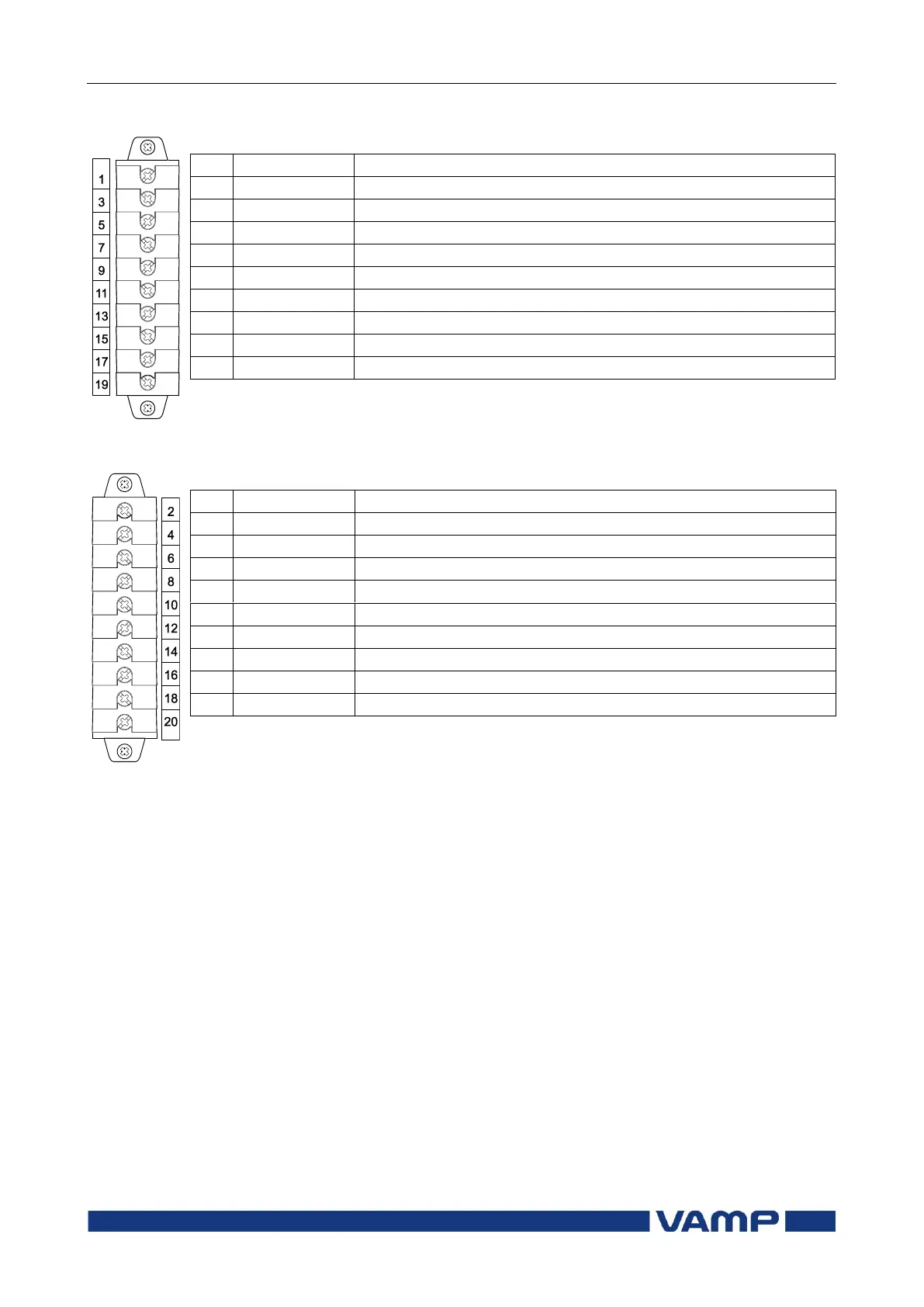

Terminal X1 left side
No:
Symbol
Description
1
IL1
Phase current IL1 (S1), high voltage side
3
IL2
Phase current IL2 (S1), high voltage side
5
IL3
Phase current IL3 (S1), high voltage side
7
Io1
Residual current Io1 (S1)
9
Io2
Residual current Io2 (S1)
11
I‟L1
Phase current I‟L1 (S1), low voltage side
13
I‟L2
Phase current I‟L2 (S1), low voltage side
15
I‟L3
Phase current I‟L3 (S1), low voltage side
17
--
--
19
--
--
Terminal X1 right side
No:
Symbol
Description
2
IL1
Phase current L1 (S2), high voltage side
4
IL2
Phase current L2 (S2), high voltage side
6
IL3
Phase current L3 (S2), high voltage side
8
Io1
Residual current Io1 (S2)
10
Io2
Residual current Io2 (S2)
12
I‟L1
Phase current I‟L1 (S2), low voltage side
14
I‟L2
Phase current I‟L2 (S2), low voltage side
16
I‟L3
Phase current I‟L3 (S2), low voltage side
18
--
--
20
--
--
