VAMP 265 - Page 191

Technical description
8 Connections
8.3 Serial communication
connectors
VM265.EN011
VAMP 24h support phone +358 (0)20 753 3264
191

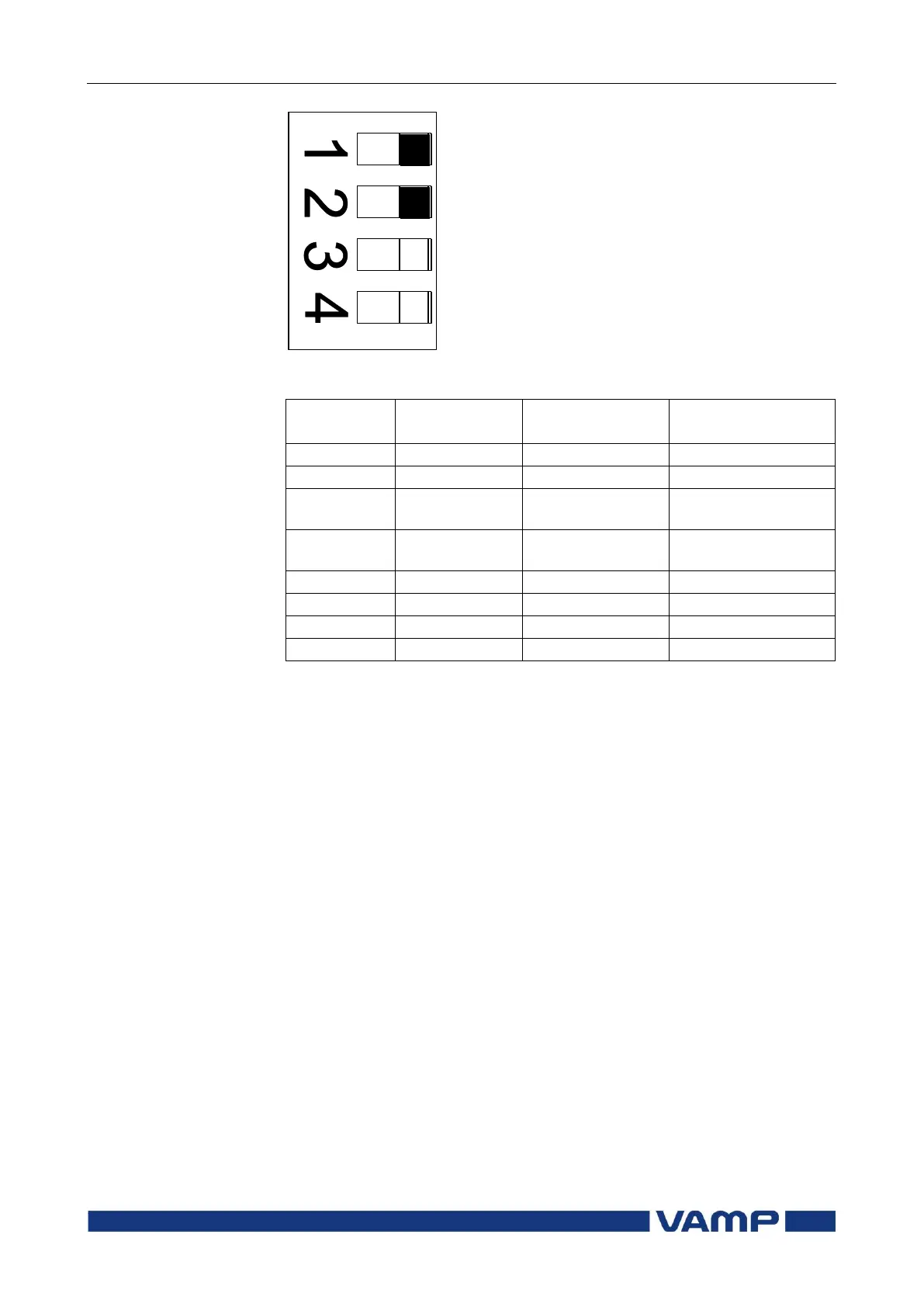

Figure 8.3.2-5 Dip switches in RS-485 and optic fibre options.
Dip switch
number
Switch position
Function
RS-485
Function
Fibre optics
1
Left
2 wire connection
Echo off
1
Right
4 wire connection
Echo on
2
Left
2 wire connection
Light on in idle
state
2
Right
4 wire connection
Light off in idle
state
3
Left
Termination On
Not applicable
3
Right
Termination Off
Not applicable
4
Left
Termination On
Not applicable
4
Right
Termination Off
Not applicable
