VAMP 265 - Page 93

Technical description
2 Protection functions
2.13 Inverse time operation
VM265.EN011
VAMP 24h support phone +358 (0)20 753 3264
93
Example for Delay type RI :
k = 0.50
I = 4 pu
I
pickup
= 2 pu
3.2
2
4
236.0
339.0
5.0









RI
t
The operation time in this example will be 2.3 seconds. The
same result can be read from Figure 2.13.1-15.
Example for Delay type RXIDG:
k = 0.50
I = 4 pu
I
pickup
= 2 pu
9.3
25.0
4
ln35.18.5 


RXIDG
t
The operation time in this example will be 3.9 seconds. The
same result can be read from Figure 2.13.1-16.

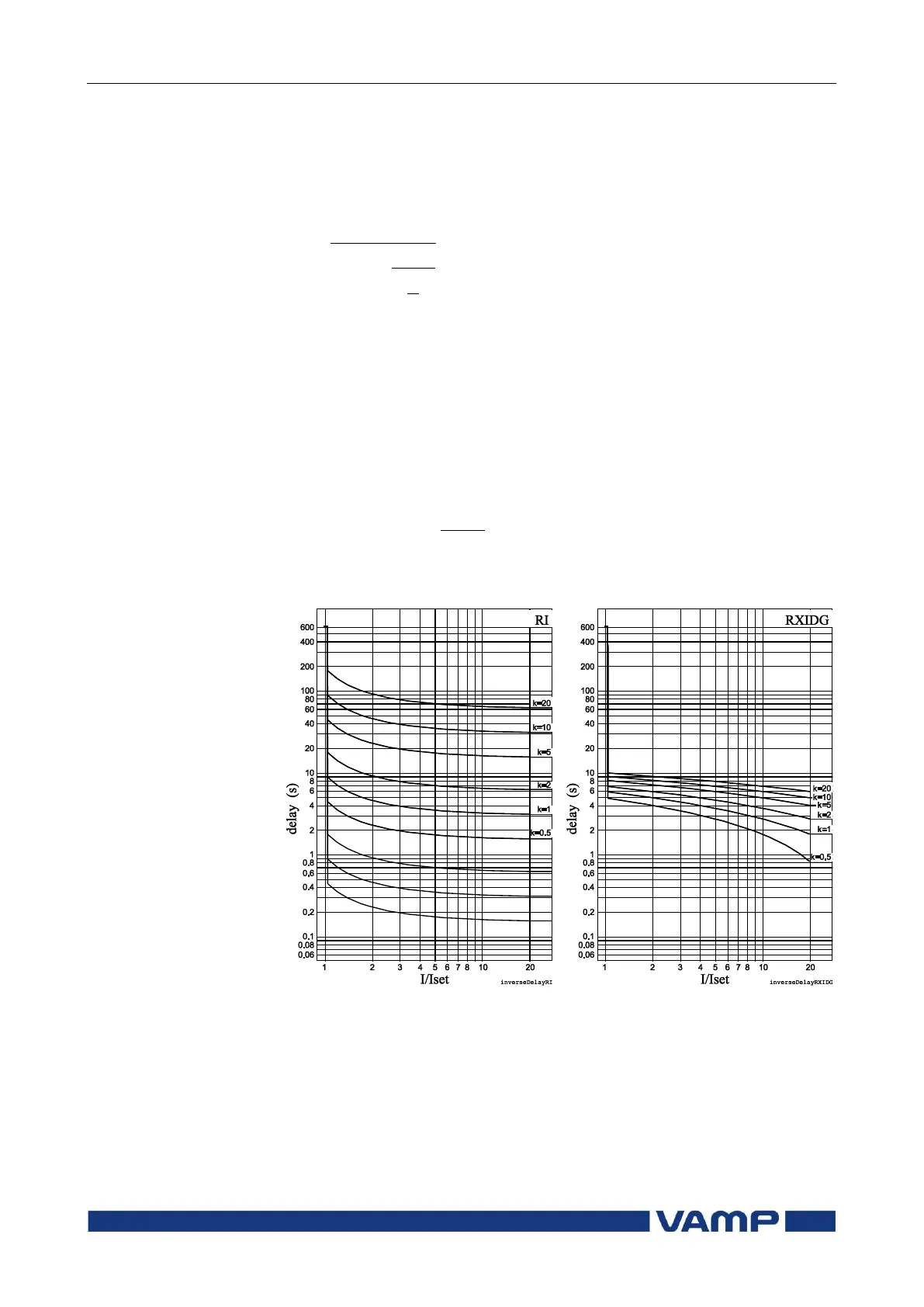

Figure 2.13.1-15 Inverse delay of
type RI.
Figure 2.13.1-16 Inverse delay of
type RXIDG.
