Mounting system equipment
Installation & Configuration Manual
An optional external antenna must be fitted to housings with metallic lid if the
wireless functionality is required. If an antenna is fitted to the unit, it must be
enabled in the firmware.

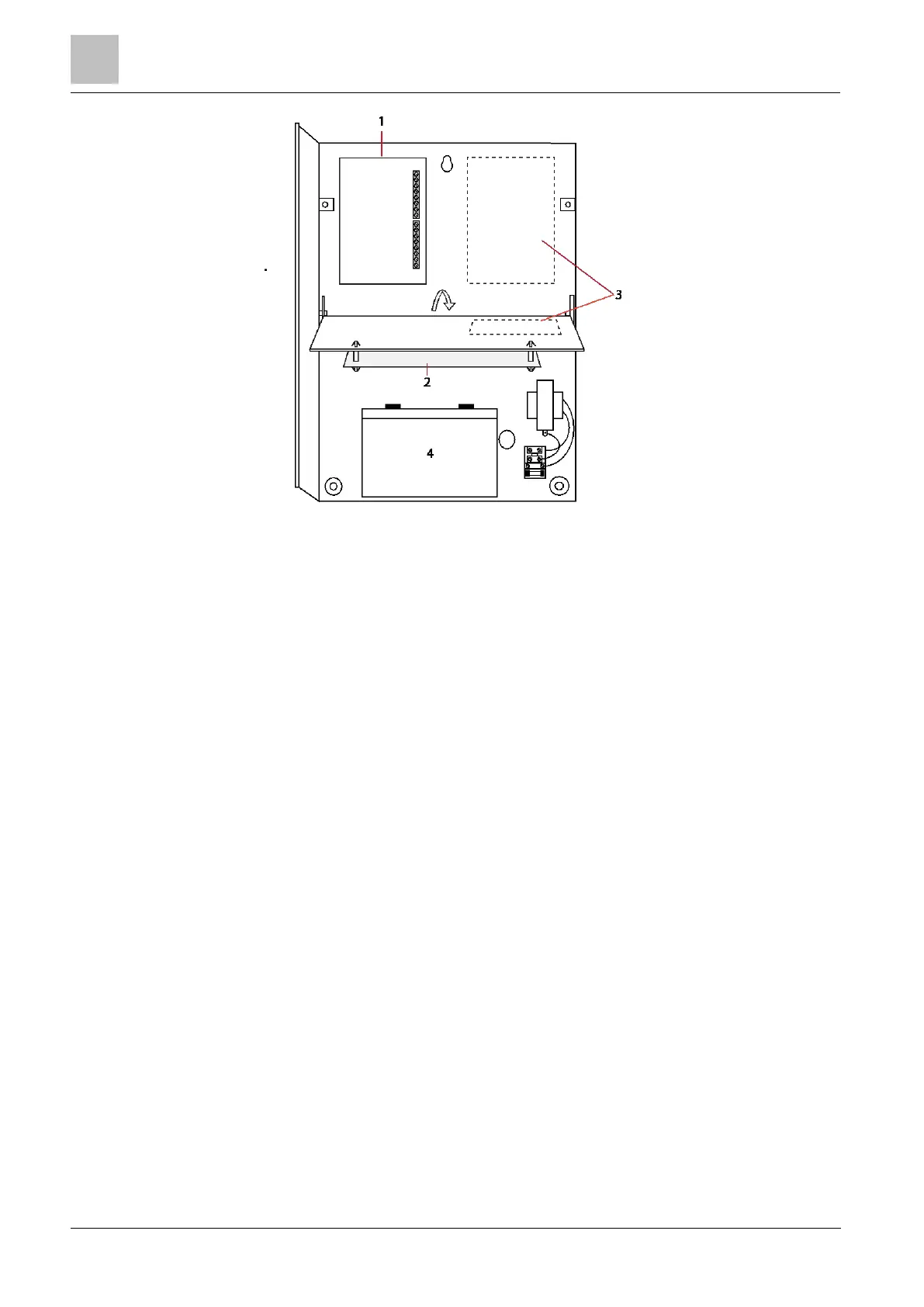

The SPC G3 housing provides 3 screw holes for wall mounting the unit (see item 1
below).
Screws with a 4-5 mm shank, a minimum head diameter of 8 mm and a minimum
length of 40 mm are recommended for mounting the housing. Additional expansion
plugs or fixings may be required depending on the construction of the wall.
