Mounting system equipment
Mounting a G5 housing
52
Vanderbilt
Installation & Configuration Manual
A6V10276959
01.05.2016
1

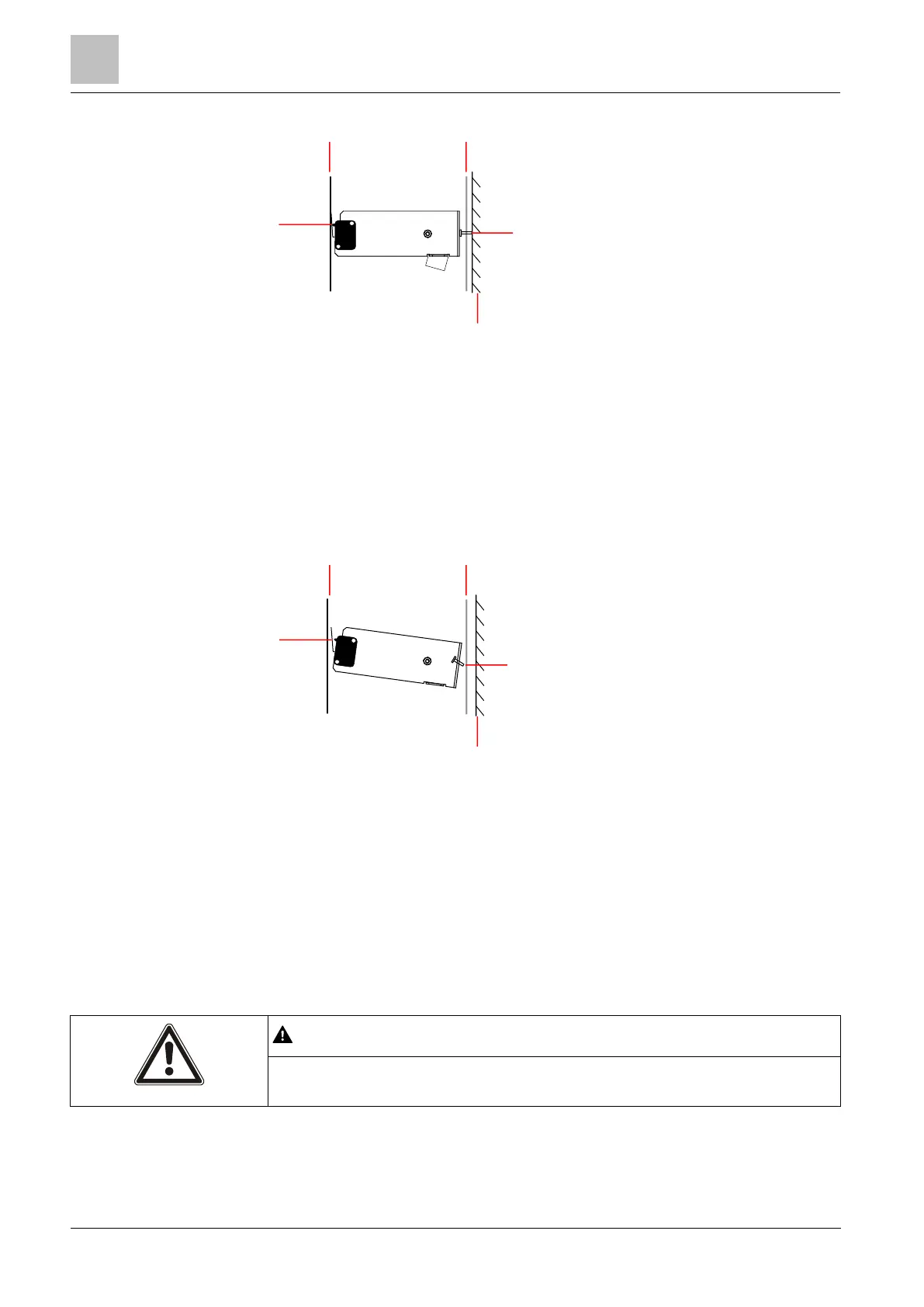

Wall
4
Housing lid
2
Back tamper screw
5
Tamper switch contact closed
3
Back wall of housing
Tamper switch – displaced
1
Wall
4
Housing lid
2
Back tamper screw
5
Tamper switch contact open
3
Back wall of housing
If the housing is removed from the wall or displaced, the tamper bracket screw is
no longer secure against the wall, causing the bracket to pivot. This in turn causes
the tamper switch to swivel away from the lid and opens the switch contact.
WARNING
If the tamper bracket screw is not secure against the wall, then tamper protection
is compromised.
5
1
2
4
3
5
1
2
4
3
