Smart PSU
7
SPCP355.300 Smart PSU
59
Vanderbilt
Installation & Co
nfiguration Manu
al
A6V10276959
01.05.2016
Number

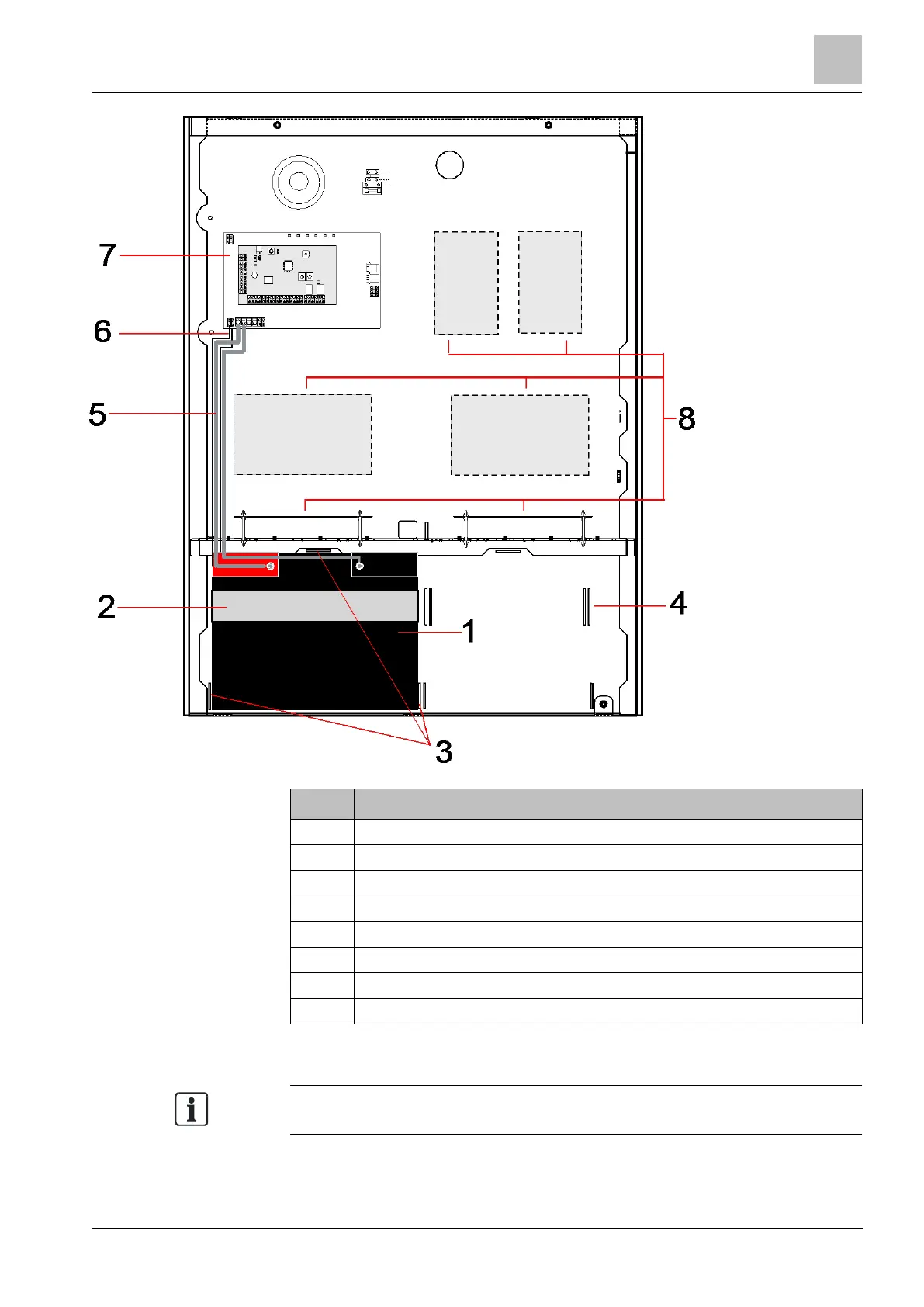

Description
1
Battery
2
Battery strap
3
Fixing holes
4
Strap holes
5
Battery leads
6
Battery temperature leads
7
PSU
\Expander
8
Mounting positions for additional expanders.
It is recommended th
at two batteries are
used. These
batteries must be of t
he
same type and cap
acity.
1.
Install the batteries in the battery
compartment.
58
60
Table of Contents
Default Chapter
3
Table of Contents
3
1 Meaning of Symbols
11
2 Security
12
Target Group
12
General Safety Instructions
12
General Information
12
Transport
12
Setup
13
Operation
13
Service and Maintenance
13
Meaning of Written Warning Notices
14
Meaning of Hazard Symbols
14
3 Directives and Standards
15
EU Directives
15
Overview of Conformity to EN50131 Standard
15
Compliance with EN50131 Approvals
19
Compliance with en 50136-1:2012 and en 50136-2:2014
21
Compliance with INCERT Approvals
21
PD 6662:2010 Conformance Guidelines
23
Product Scope
23
Standards Overview
23
Methods for the Completion of Setting and Unsetting
23
Configuration Requirements for PD 6662:2010 Conformance
26
Additional Commissioning Requirements for PD 6662:2010 Conformance
27
Additional Information
28
Compliance with VDS Approvals
28
Compliance with NF and A2P Approvals
29
4 Technical Data
31
Spc4000
31
Spc5000
32
Spc6000
35
Spcp355.300
38
5 Introduction
39
6 Mounting System Equipment
40
Mounting a G2 Housing
40
Mounting a G3 Housing
41
Mounting a Back Tamper Kit
43
Battery Installation for EN50131 Compliance
47
Mounting a G5 Housing
48
Tamper Protection
50
Mounting the Housing with Tamper Protection
50
Tamper Operation
51
Installing the Batteries
53
Mounting a Keypad
54
Mounting an Expander
54
7 Smart PSU
55
SPCP355.300 Smart PSU
55
Supervised Outputs
57
Batteries
58
Installing Batteries
58
Testing Battery Voltage
60
Deep Discharge Protection
60
Battery Stand-By Times
60
Wiring the X-BUS Interface
60
Wiring the Inputs
61
Wiring the Outputs
62
Compliance with NF and A2P Approvals
63
PSU LED Status
64
System Recovery
65
8 Controller Hardware
66
Controller Hardware 42Xx\43Xx\53Xx\63Xx
66
Controller Hardware SPC5350 and 6350
69
9 Door Expander
71
10 Wiring the System
72
Wiring the X-BUS Interface
72
Loop Configuration
73
Spur Configuration
74
Star and Multi-Drop Configuration
75
Examples of Correct Wiring
78
Examples of Incorrect Wiring
79
Shielding
80
Cable Map
81
Wiring of Branch Expander
81
Wiring the System Ground
82
Wiring the Relay Output
82
Wiring the Zone Inputs
83
Wiring an External SAB Bell
86
Wiring an Internal Sounder
87
Wiring Glassbreak
87
Installing Plug-In Modules
87
11 Powering up the SPC Controller
89
Powering from Battery Only
89
12 Keypad User Interface
90
Spck420/421
90
Introduction
90
Using the LCD Keypad Interface
92
Data Entry on the LCD Keypad
94
Spck620/623
95
Introduction
95
LED Description
98
Viewing Mode Description
99
Function Keys in Idle State
99
13 Software Support Tools
101
14 Starting the System
102
Engineer Modes
102
Engineer Pins
102
Programming Tools
103
Fast Programmer
103
Configuring Start-Up Settings
103
Creating System Users
105
Programming the Portable ACE
105
Configuring Wireless Fob Devices
106
Clearing Alerts Using the Fob
107
15 Soft Engineer Programming Via the Keypad
109
16 Engineer Programming Via the Keypad
110
System Status
110
Options
111
Timers
114
Areas
116
Area Groups
117
X-Bus
118
X-BUS Addressing
118
XBUS Refresh
118
Reconfigure
119
Keypads/Expanders/Door Controllers
120
Locate
120
Monitor
120
Edit Keypads
121
Edit Expanders
123
Edit Door Controllers
127
Addressing Mode
128
XBUS Type
129
Bus Retries
129
Comms Timer
129
Wireless
130
Add Sensors
130
Edit Sensors (Zone Assignment)
131
Add WPA
131
Edit WPA
132
Zones
132
Doors
133
Outputs
136
Outputs Types and Output Ports
137
Communication
140
Serial Ports
140
Ethernet Ports
140
Modems
141
Monitoring the Transmission Network Interface
141
Configuring Modems
142
Central Station
143
Add
143
Edit
143
Delete
144
Make Test Call
144
Remote Maintenance
144
Test
145
Bell Test
145
Walk Test
145
Zone Monitor
145
Output Test
146
Soak Test
147
Audible Options
147
Visual Indicators
147
WPA Test
148
Seismic Test
148
Utilities
148
Isolate
149
Event Log
149
Access Log
150
Alarm Log
150
Change Engineer Pin
150
Users
150
Add
151
Edit
151
Access Control
151
Delete
153
User Profiles
154
Add
154
Edit
154
Delete
154
Sms
155
Add
155
Edit
156
Delete
156
Set Date/Time
157
Installer Text
157
Door Control
157
SPC Connect
158
17 Engineer Programming Via the Browser
159
System Information
159
Ethernet Interface
159
Connecting to the Panel Via USB
161
Logging into the Browser
163
SPC Home
164
System Summary
164
Alarms Overview
165
Viewing Video
165
Panel Status
167
Status
167
X-Bus Status
167
Expander Status
168
PSU Status
170
Keypad Status
172
Door Controller Status
173
Wireless
175
Log - Wireless Sensor X
176
Zones
176
Doors
178
Flexc Status
179
System Alerts
180
Logs
181
System Log
181
Access Log
181
WPA Log
182
Alarm Log
182
Users
183
Adding / Editing a User
183
Unknown Devices
185
Adding / Editing User Profiles
186
Configuring SMS
190
SMS Commands
191
Deleting Web Passwords
193
Configuring Engineer Settings
193
Changing Engineer PIN and Web Password
194
Configuration
196
Configuring Controller Inputs & Outputs
196
Editing an Input
196
Editing an Output
197
Configuring System Latch and Auto Set Outputs
202
X10 Config - Settings
203
X-Bus
204
Expanders
204
Keypads
209
Door Controllers
214
Cable Map
215
Settings
216
Wireless
217
Log - Wireless Sensor X
218
Configuring a WPA
218
Changing Wireless Settings
221
Changing System Settings
222
Options
222
Timers
230
Identification
233
Standards
234
Clock
235
Language
236
Configuring Zones, Doors and Areas
237
Editing a Zone
237
Adding / Editing an Area
238
Editing a Door
246
Adding an Area Group
251
Calendars
251
Adding / Editing a Calendar
252
Automatic Setting/Unsetting of Areas
254
Automatic Setting/Unsetting of Other Panel Operations
254
Change Own PIN
255
Configuring Advanced Settings
255
Triggers
255
Mapping Gates
256
Audio/Video Verification
257
Updating SPC Licenses
261
Configuring Communications
261
Communications Settings
261
Configuring the Networking Services of the Panel
261
Ethernet
262
Modems
263
Serial Ports
272
Flexc
273
Operation Mode
274
Quick Start ATP Configuration for EN50136 ATS
274
Configuring an EN50136-1 ATS or Custom ATS
276
Configuring an SPC Connect ATS
285
Exporting and Importing an ATS
285
Configuring Event Profiles
286
Configuring Command Profiles
290
Reporting
292
Alarm Reporting Centres (Arcs)
292
EDP Setup
295
PC Tools
302
SPC Pro / SPC Safe
302
SPC Manager
303
Remote Maintenance
304
File Operations
304
File Upgrade Operations
305
Upgrading Firmware
305
Upgrading Languages
308
File Manager Operations
310
Using the Fast Programmer
311
Connecting the Fast Programmer to the Controller
312
Installing the Fast Programmer on a PC
312
Fast Programmer File Operations
313
Accessing the Fast Programmer Using the Keypad
313
Accessing the Fast Programmer Using the Browser
313
18 Accessing Web Server Remotely
315
PSTN Connection
315
GSM Connection
317
19 Intruder Alarm Functionality
320
Financial Mode Operation
320
Commercial Mode Operation
320
Domestic Mode Operation
321
Full and Local Alarms
321
20 System Examples and Scenarios
322
When to Use a Common Area
322
21 Seismic Sensors
324
Seismic Sensor Testing
325
Manual and Automatic Test Process
325
Automatically Testing Sensors
326
Manually Testing Sensors
327
22 Blocking Lock Operation
328
Blocking Lock
328
Authorized Setting of the Blocking Lock
329
Locking Element
330
23 Appendix
332
Network Cable Connections
332
Controller Status Leds
332
Powering Expanders from the Auxiliary Power Terminals
333
Calculating the Battery Power Requirements
334
Domestic, Commercial and Financial Mode Default Settings
336
Wiring of the X10 Interface
337
SIA Codes
337
CID Codes
342
Overview of Keypad Types
343
User PIN Combinations
344
Duress Pins
345
Automatic Inhibits
345
Zones
345
Access Pins
345
Engineer Access
345
Keypad User Logoff
345
Wiring of Mains Cable to the Controller
346
Maintenance Controller
346
Maintenance Smart PSU
347
Zone Types
347
Zone Attributes
350
Applicable Attributes to Zone Types
352
ATS Levels and Attenuation Specifications
354
Supported Card Readers and Card Formats
354
SPC Support for E-Bus Devices
356
Configuring and Addressing E-Bus Devices
356
Addressing Transponders for SAP 8, SAP 14, and SAP 20
358
Addressing Transponders for PSU SAP 25
358
Flexc Glossary
359
Flexc Commands
360
ATS Category Timings
362
ATP Category Timings
363
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Vanderbilt SPC6350 and is the answer not in the manual?
Ask a question
Vanderbilt SPC6350 Specifications
General
Brand
Vanderbilt
Model
SPC6350
Category
Power Supply
Language
English
Related product manuals
Vanderbilt SPC6330.320
402 pages
Vanderbilt SPC5330.320
402 pages
Vanderbilt SPCP333.300
402 pages
Vanderbilt SPCA210.100
402 pages
Vanderbilt SPCP332.300
402 pages
Vanderbilt SPC42 Series
402 pages
Vanderbilt SPC53 Series
368 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
