8. Install the oil supply pump cover onto the crankcase
cover.
9. Start by hand the 4 cover fasteners. Tighten to 90 lb-in
(10.2 Nm).
PTO Oil Bearing Seal - Disassembly
1. Using Figure 142 as a reference, remove and discard the
oil seal from crankcase cover bearing bore, if present.
Exercise care to avoid scratching bearing bore during
removal.

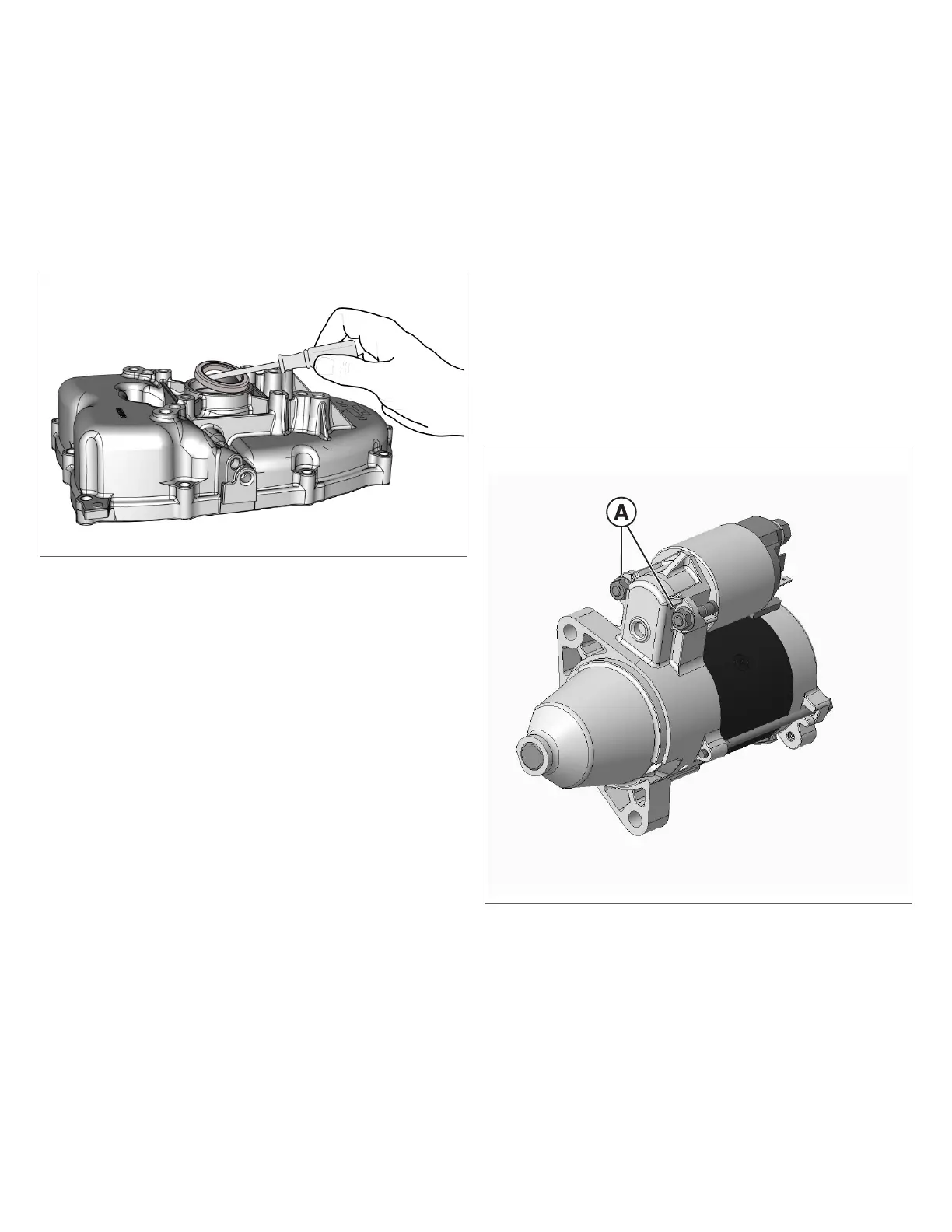

142
PTO Oil Bearing Seal - Assembly
1. Apply a thin film of clean engine oil the oil seal bore and
OD of new oil seal.
2. Place the oil seal into the bearing bore.
3. Place the suitable oil seal driver on outside edge of oil
seal.
4. Center oil seal driver under ram.
5. Slowly apply pressure to the oil seal driver until the oil
seal is at a depth of 0.040-0.080 in (1.0-2.0 mm) below
the oil seal bore lip.
STARTER MOTOR
Starter Motor Solenoid - Disassembly
1. Remove the 2 solenoid mounting fasteners (A, Figure
143).
143
