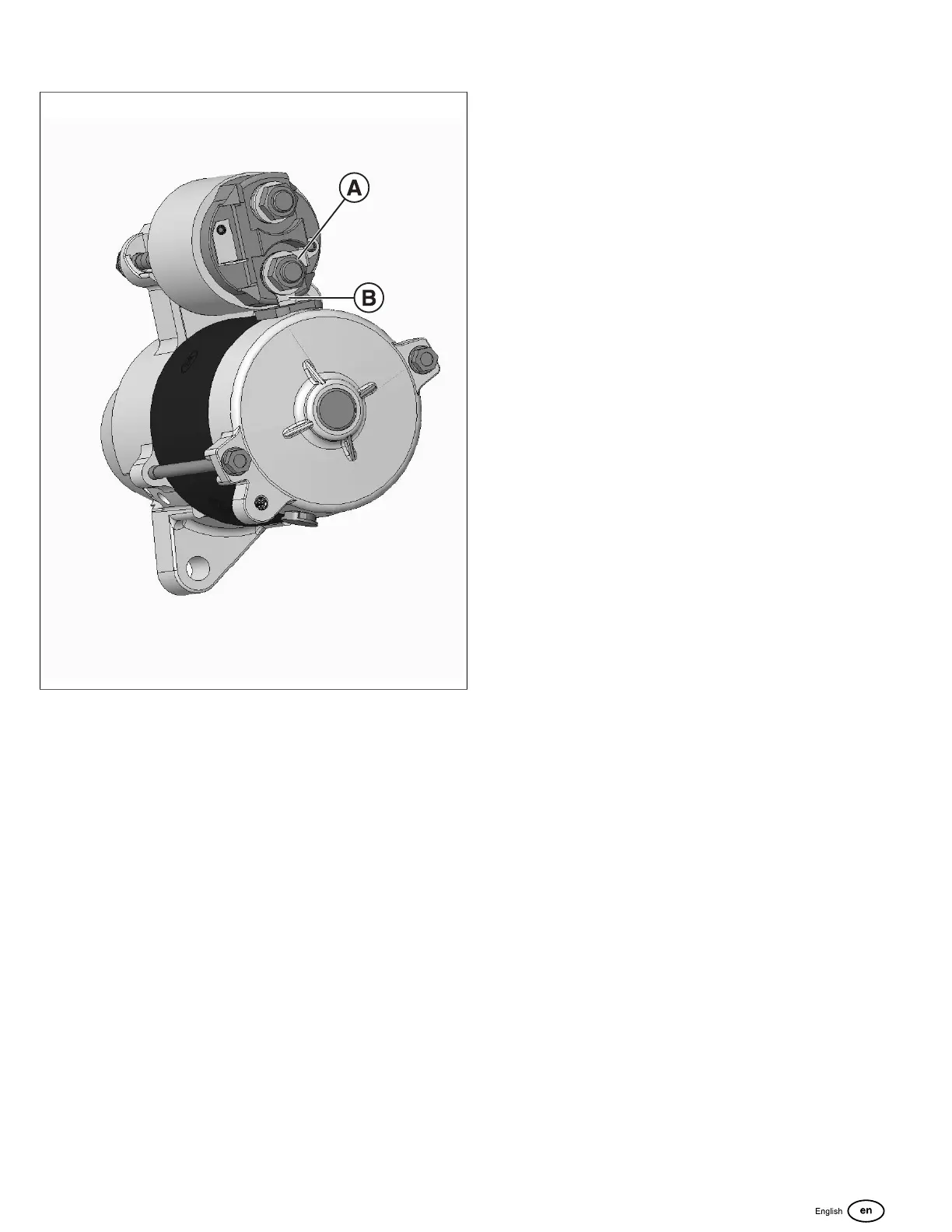

2. Remove thestator brush fastener and washer (A, Figure
144).
144
3. Disconnect the stator brush strap (B) from the solenoid
by lifting it up and over the threaded stud.Take care to
avoid damaging thebrush strap.
4. Remove the solenoid from the starter motor housing.
Starter Motor Solenoid - Assembly
1. Apply grease (see SECTION 9 - SPECIFICATIONS -
Fluid andSealant Specifications) with a small brush or
finger tip to the solenoid piston shaft.
2. Install the solenoid into the mounting fork of the starter
motor.
3. Install the stator brush strap (B, Figure 144)over the
lower mounting stud. Take care to not damage or break
the strap.
4. Install the stator brush washer and fastener (A). Start by
hand, then tighten to 87 lb-in (9.8 Nm).
5. Install the 2 solenoid mounting fasteners (A, Figure 143).
Start by hand, then tighten to 71 lb-in (8 Nm).
EFI AND EFI-ETC SYSTEM
EFI and EFI-ETC System Components
The fuel system components on EFI and EFI-ETC equipped
engines have limited serviceability.
1. Refer to the EFI and EFI-ETC Service and Diagnostic
manual that applies to your engine.
2. Consult the Illustrated Parts List for the correct
replacement parts.
