Fuel Filter

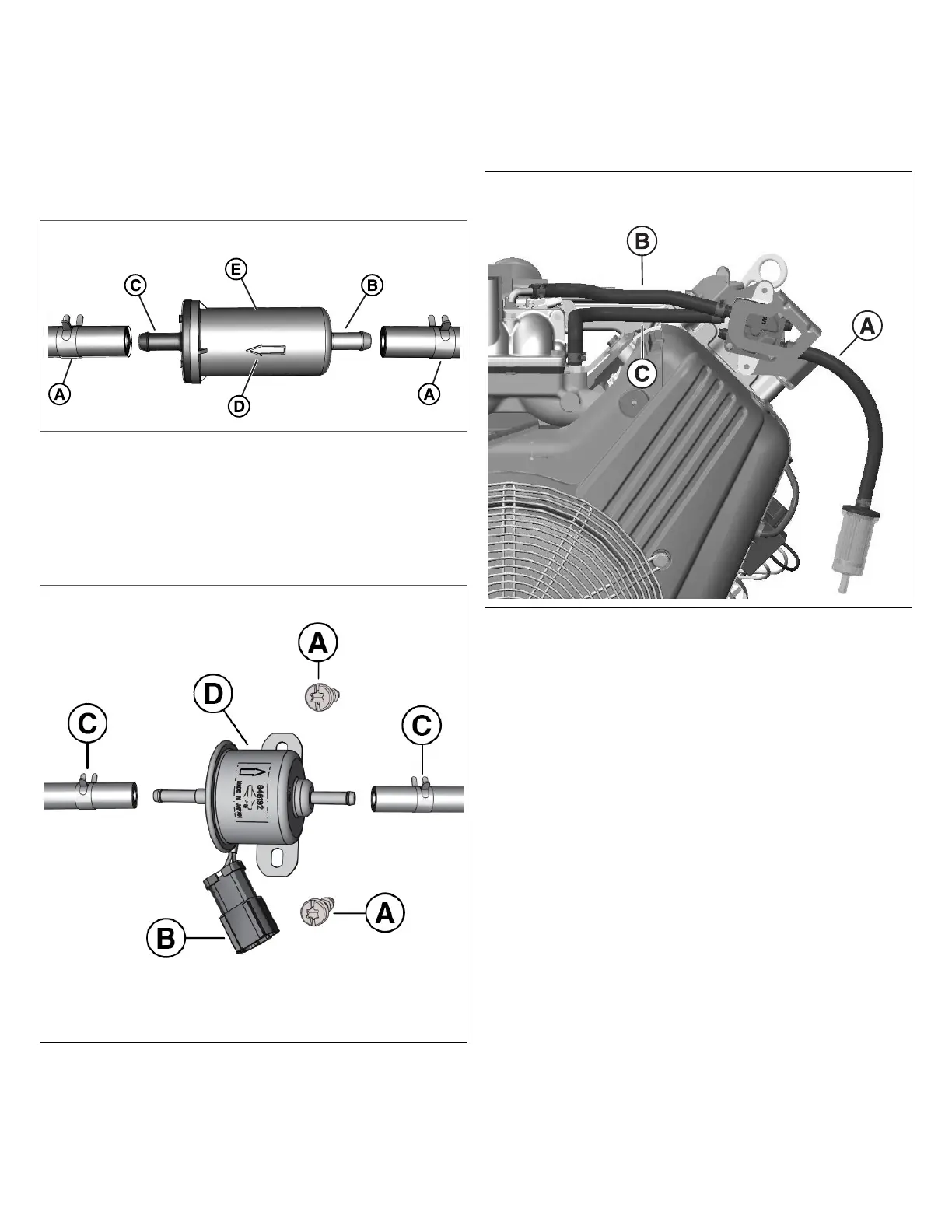

1. Squeeze tangs and move hose clamps (A, Figure 56)
away from fuel inlet (B) and outlet (C) fittings. Remove
fuel inlet and outlet hoses from fuel filter (E) fittings.
NOTE: Wrap shop towel around fuel filter to catch any fuel
leakage
56
2. Remove and dispose of the fuel filter in the proper
receptacle.
Electric Lift Fuel Pump
1. Remove the two fasteners (A, Figure 57)to release
electric lift fuel pump bracket from lifting bracket.
57
2. Disconnect fuel pump connector (B).
3. Squeeze the tangs of the fuel line clamps (C) and move
away from fuel inlet and outlet fittings. Remove fuel inlet
and outlet hoses from the lift pump (D).
NOTE: Wrap shop towel around fuel filter fittings to catch any
fuel leakage.
4. Remove fuel lift pump and set aside.
Fuel Pump - Carbureted Engine
1. Squeeze tangs and move hose clampon the fuel feed
line (A, Figure 58) away from the fuel pump.
58
2. Remove the fuel feed line from the fuel pump.
3. Squeeze tangs and move the hose clamp (B) away from
the fuel inlet on the carburetor.
4. Remove the fuel pump outlet to carburetor line from the
carburetor.
5. Squeeze tangs and movethe hose clamp (C) away from
the vent line on the intake manifold.
6. Remove the vent line from the intake manifold.
60 vanguardpower.com
