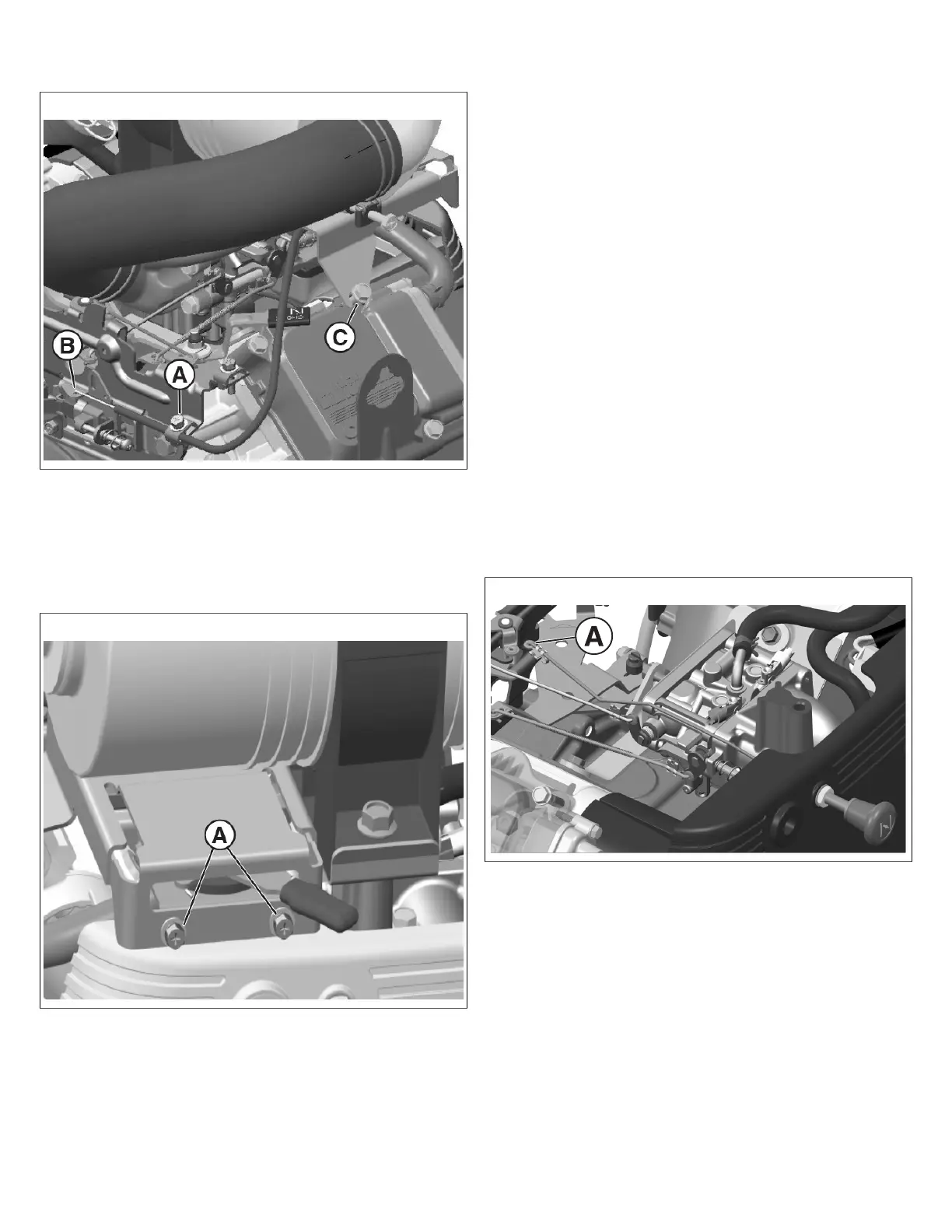

1. Insert the "Z" bend of the throttle cable (B, Figure 213)
into the hole in the speed control bracket tab.
213
2. Route the throttle cable through the cable clamp (A) on
the speed control bracket. Install fastener and tighten to
23 lb-in (2.6 Nm).
3. Install the throttle control into the support bracket and
start the 2 fasteners (A, Figure 214) by hand. Tighten
fastenersto 35 lb-in (4 Nm).
214
NOTE: The support bracket that houses the throttle control
also serves as the air cleaner support bracket. This bracket is
secured, on one side, with a valve cover fastener (C, Figure
213). Tighten fastener to 90 lb-in (10.2 Nm).
Engine Covers
There are 2 engine covers, which are identified here as the
key switch coverand the air intake elbow cover.
Thekey switch coverserves as the housing for the ignition
key switch and/or throttle lever, if equipped, and is always
fastened to the blower housing. Theair intake elbowcover
has a contoured opening to accommodate the air intake
elbow, and is variously fastened to other bracketry or
components, such as the fuel pump module bracket, air
cleaner bracket, air intake elbow, etc.
The air intake elbow cover is absent on those models
equipped with the low profile air cleaner.
Cover appearance may differ based on model and/or options.
Key Switch Cover
NOTE: Depending on your engine's model, trim and type,
a number of throttle lever options exist. If your engine is
equipped with a rotary-style throttle level, and a push-pull
choke, proceed as follows. If your engine is equipped with a
detent-style throttle lever, see Throttle Control in this section.
1. If your engine is equipped with choke and throttle
controls, proceed as follows:
2. Insert the push/pull choke lever into the mounting hole of
the cover, see Figure 215.
215
3. Start by hand the jamb nut on the threaded shaft of the
choke knob on the inside of the cover. Tighten to 33 lb-in
(3.7 Nm).
154 vanguardpower.com
