Vanguard BIG BLOCK M540000 - Starter Motor

4. Remove the voltage regulator (D, Figure 51 and Figure
52) from the engine and set aside.

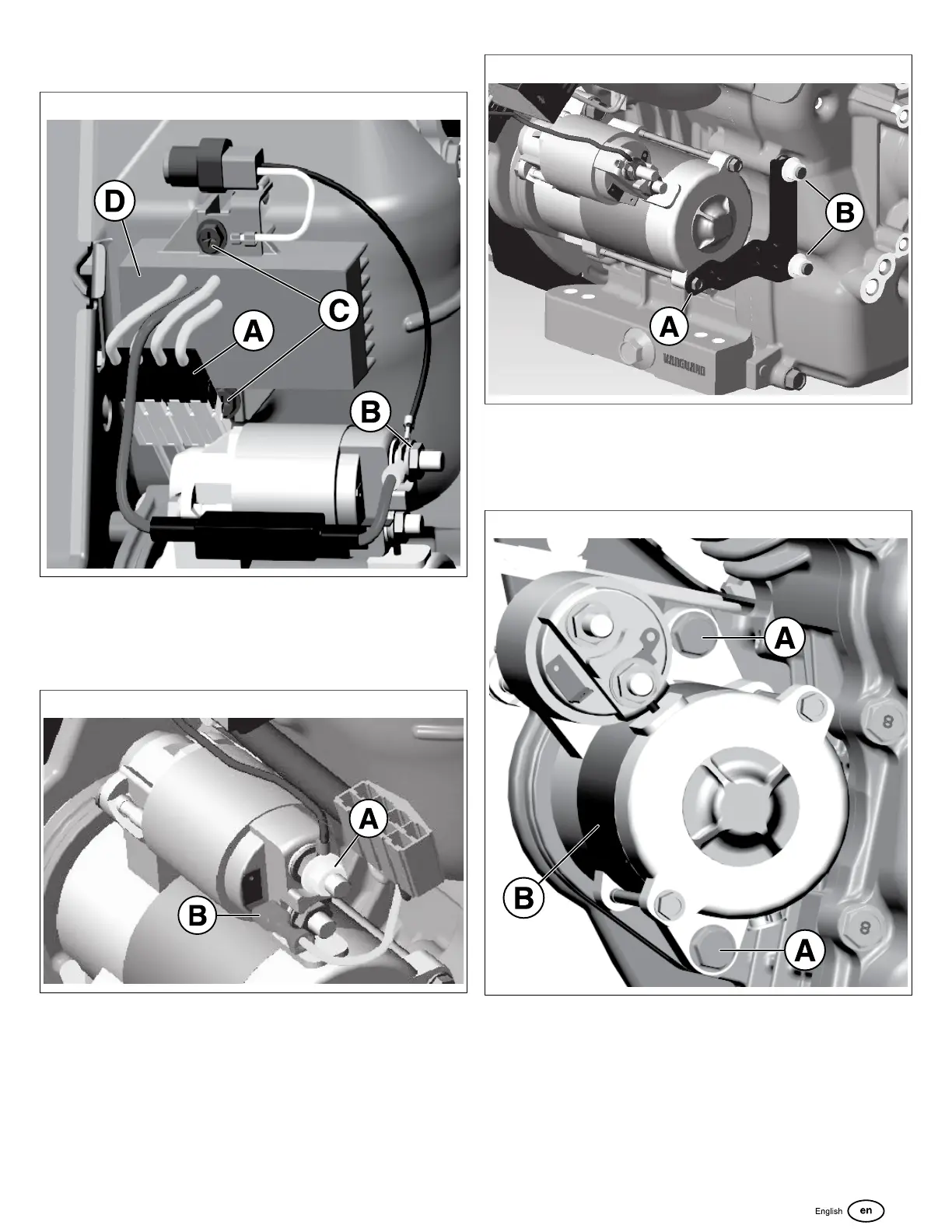

52
Starter Motor
1. Remove starter motor positive terminal nut (A, Figure
53)and remove the wires from the terminal.
53
2. Remove the ignition start switch wire (B)from the starter
solenoid terminal.
NOTE: Some engines may be equipped with a starter motor
support bracket. Removal of this bracket is required for starter
motor removal. If equipped, proceed to steps 3 and 4. If your
engine is NOT equipped with a starter motor support bracket,
skip to step 5.
3. If equipped, remove thestarter motor support bracket to
starter motor bolt (A, Figure 54).
54
4. Remove the 2 starter motor support bracketto engine
block nuts (B).
5. Remove the 2 starter motor mounting fasteners (A,
Figure 55).
55
6. Remove the starter motor (B) from the engine and set
aside.
59
