2. Rotate hex (B) to install adapter (C) and diverter (D) to
crankcase flange.
NOTE: Orient diverter so that the locator tab faces toward
the PTO side crankcase cover side as shown.
3. Tighten adapter to 240 lb-in (27.1 Nm).
4. If equipped, install the optional drip trayonto the
crankcase bosses beneath the oil filter.

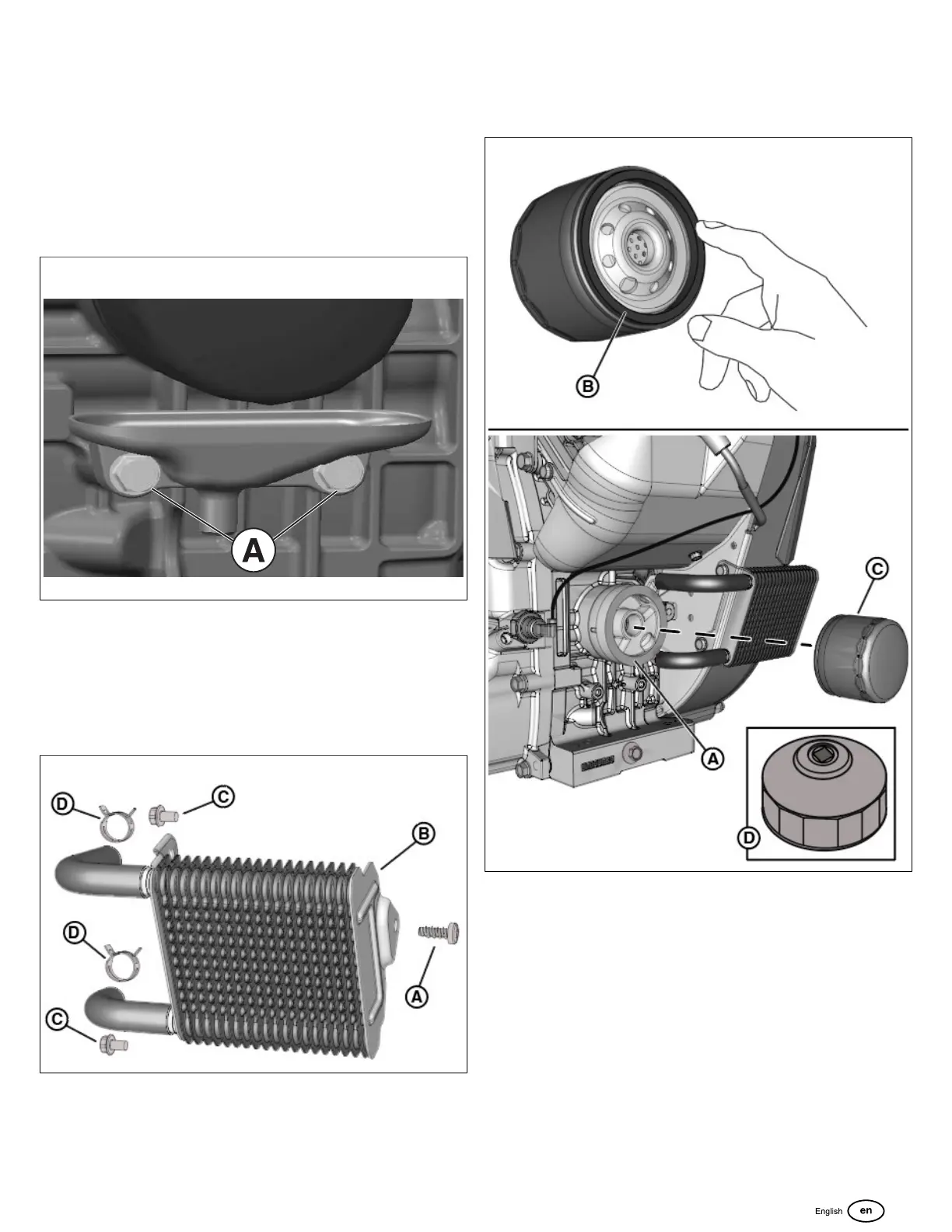

5. Start by hand the 2 drip tray fasteners (A, Figure 227).
Tighten to 70 lb-in (7.9 Nm).
227
Oil Cooler
1. Install the oil cooler inlet and outlet hosesonto the
diverter valve oil fittings. Squeeze the tangs of the hose
clamps (D, Figure 228)and slide clamps along the hose
until positioned over the diverter valve oil fittings.
228
2. Install 2 fasteners (C) to secure the oil cooler bottom
bracket to the engine back plate.
3. Install the fastener (A) to secure the oil cooler top bracket
(B) to the blower housing.
Oil Filter
1. Verify the oil filter mount flange (A, Figure 229) is clean
and dry.
229
2. Lubricate gasket of new oil filter with a thin film of clean
engine oil (B).
3. Install oil filter(C), and hand tighten until gasket contacts
filter mount flange. Using a 76mm-14 Flute end cap
style oil filter wrench (D)with ratchet and extension
bar,tighten oil filter to 75 lb-in (8.5 Nm). Do not use air
tools.
161
