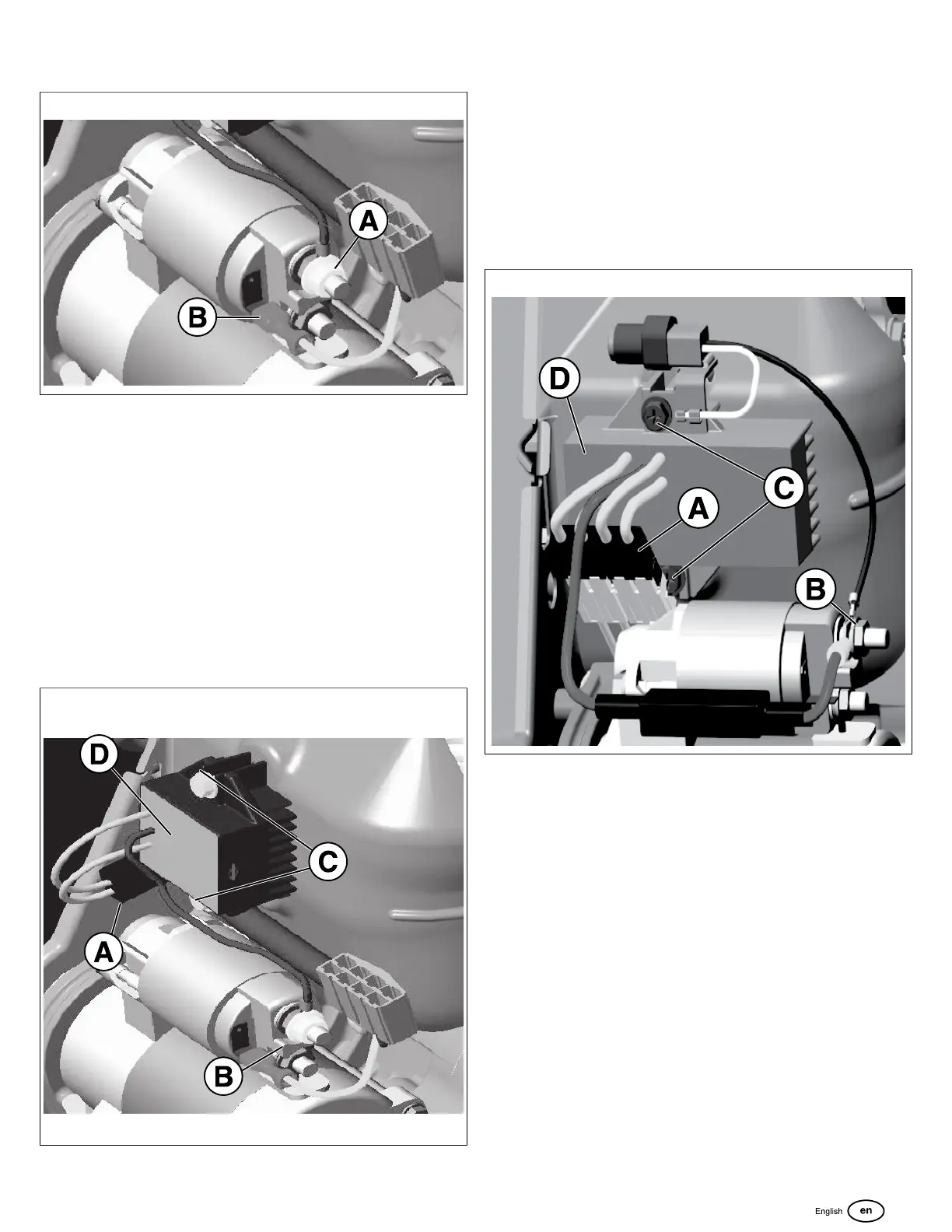

6. Connect the ignition switch start wire (B, Figure 205) to
the starter motor terminal.
205
7. Install the voltage regulator wire onto the starter motor
positive terminal (A). Start by hand the terminal nut.
Tighten to 45 lb-in (5 Nm).
Voltage Regulator
Your engine may be equipped with either a 20 amp or a 20/50
ampvoltage regulator. The 20/50amp voltage regulator has a
capacitor mounted to a bracket atop the regulator.
1. Install the regulator into the engine block. Align the
regulator mounting holes with the threaded holes in the
engine block.
2. Start by hand the 2 mounting fasteners (C, Figure 206).
Tighten to 90 lb-in (10.2 Nm).
206
3. Connect the stator wire harness connector to the voltage
regulator connector (A).
NOTE: The 20 amp alternator has a single 2-wire connector.
The 20/50 amp alternator has double 2-wire connectors.
4. Connect the RED voltage regulator wire with ring
terminal connector to the positive starter motor terminal
(B).
NOTE: On 20/50 amp alternator equipped engines, an
additional wire, from the capacitor, needs to be installed
on the starter motor positive terminal.See Figure 207 as a
reference.
207
5. Start by hand the starter motor positive terminal nut.
Tighten to 45 lb-in (5 Nm).
151
