Ignition Coil/Armature - Carbureted and Gaseous

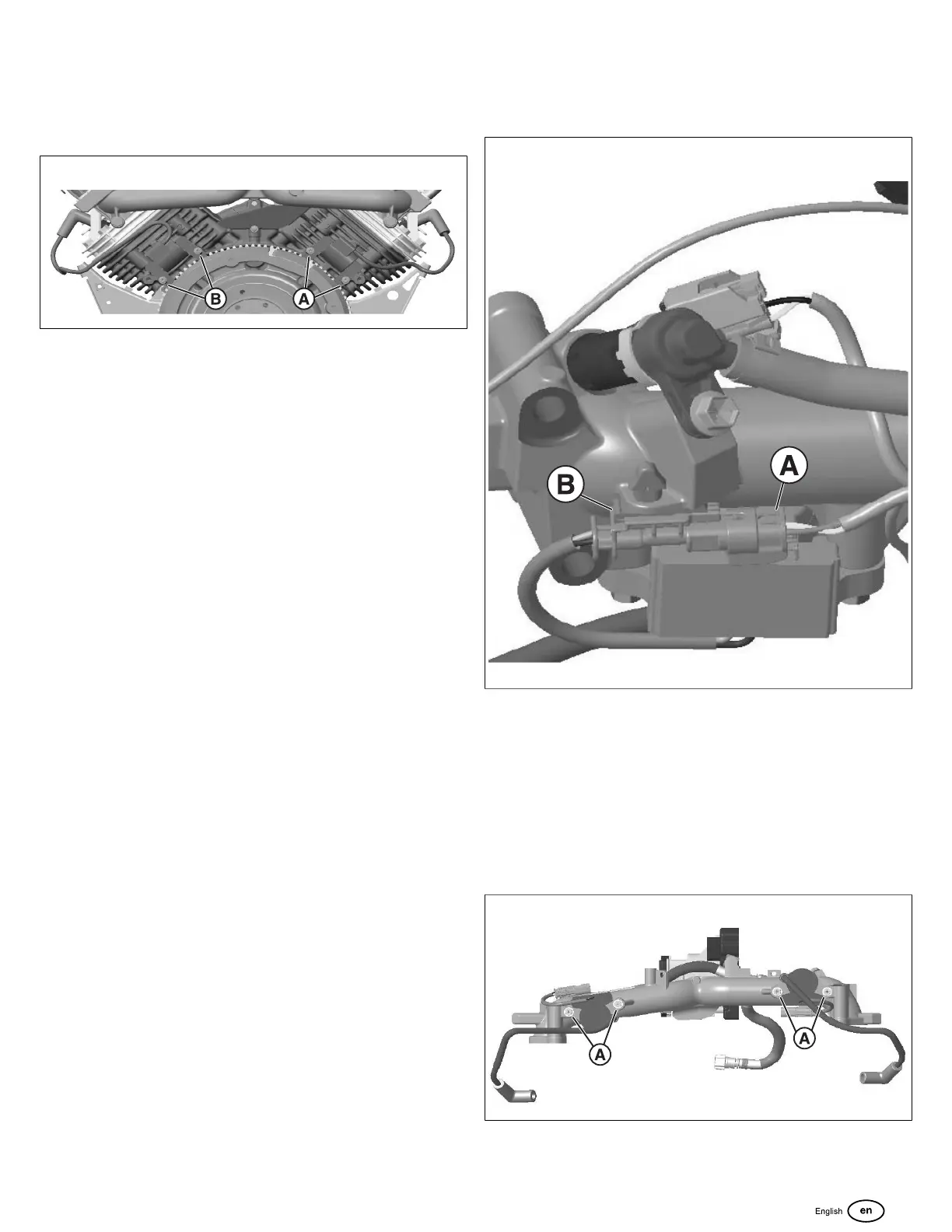

1. Starting with the ignition coil/armature for cylinder 1,
remove the 2 fasteners (A, Figure 67) that secure the
ignition coil to the engine block.
67
2. Set Ignition coil aside.
3. Remove the 2 fasteners (B) that secure the ignition coil
on cylinder 2 to the engine block.
4. Set ignition coil aside.
Ignition Coil - EFI and EFI-ETC
1. Disconnect theengine wire harness connector from the
ignition coil electrical connector (A, Figure 68).
68
2. Remove the ignition coil electrical connector (B) from
the intake manifold by depressing the tab and sliding the
connector off of the mounting.
NOTE: DO NOT cut the ignition coil electrical connector
mounting tab cable strap. The cable strap is used for wiring
harness retention.
3. Remove the 2 fasteners (A, Figure 69) that secure the
ignition coil to the intake manifold.
69
4. Repeat step 3 for second ignition coil.
65
