Subject to modification! Updated 10/2017

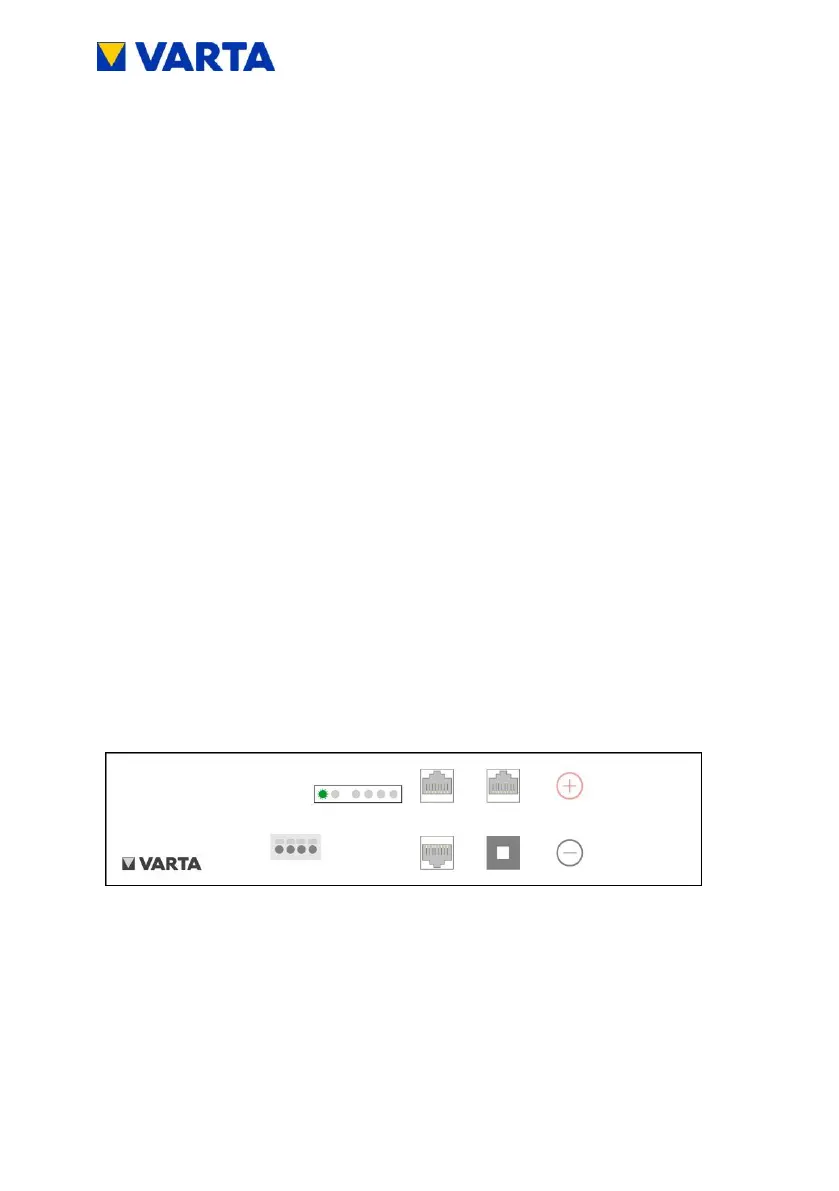

Battery charger -right-
o Battery power connection:
plug both connectors with correct polarity at the
front battery module.
o Communication 1:
Insert the four communication cables into the
openings of the clamping connector.
The connections are self-clamping.
For the pin assignment, see Figure 20: Clamped
connections of battery module (DRY contact)
o Communication 2:
Plug in the communication cable (red, CAN).
o Fixation:
Fix the rear battery module at the fastening holes
by using the supplied screws.
Aid: Allen key, size 4
o Switching on the battery module:
Press the activation button at the rear battery
module.
The LED indicator at the battery module indicates
the standby mode.
