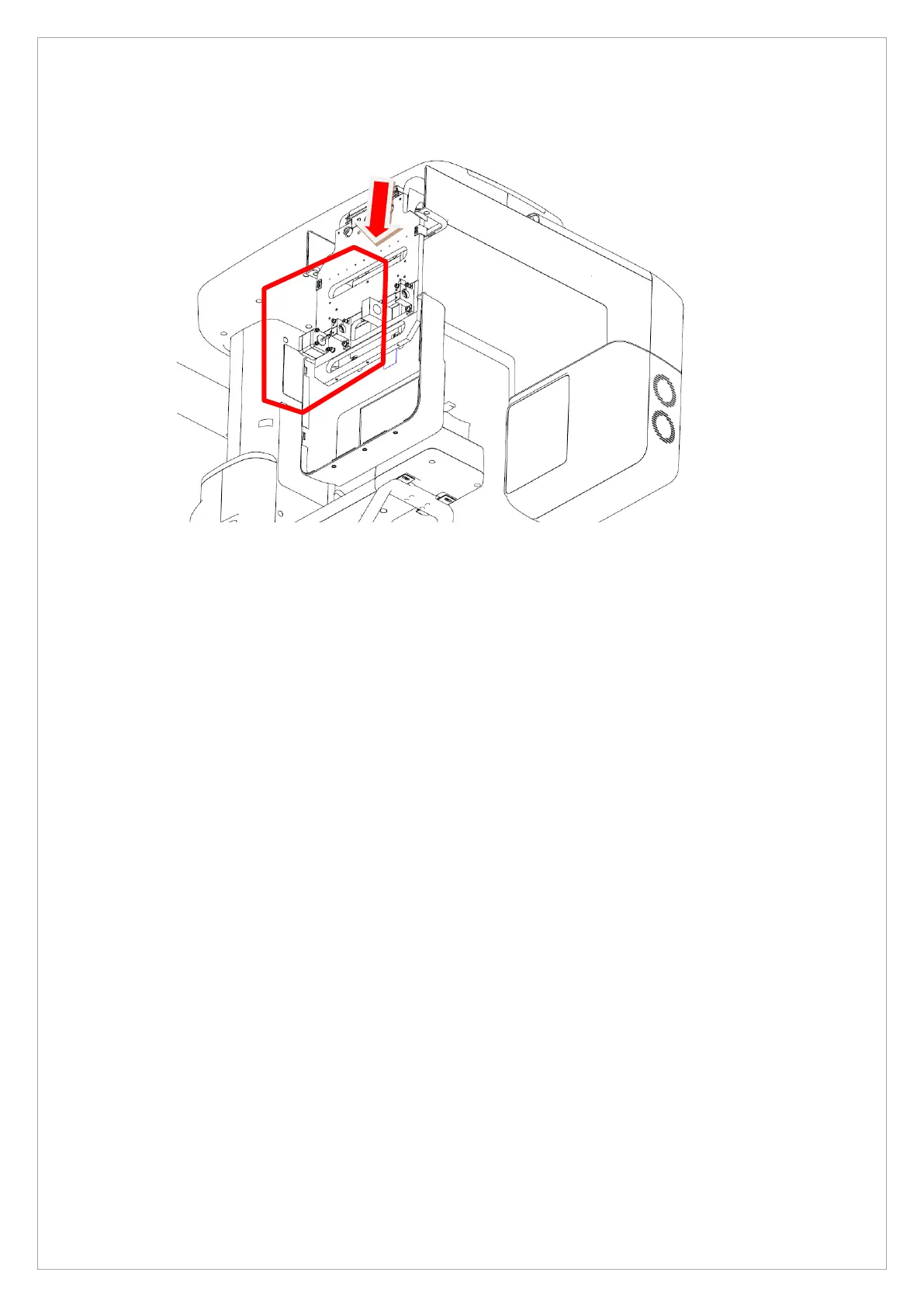

7. Remove the cover by pulling it down as shown in the image below.
By doing this, you can access
- Sensor
- Rotator motor
- SUB056
