Page 32 of 244
1.4. Disassembly of vatech A9(PHT-30CSS) Covers
•
The truss head screws on the cases of equipment are covered with
rubber caps. Remove the rubber caps before unscrewing the truss head
screws.
• In this manual, the procedures for removing the rubber caps are omitted
for convenience.
• The following illustrat
ions may look different from actual products
depending on the options.
1.4.1. Vertical Frame Part

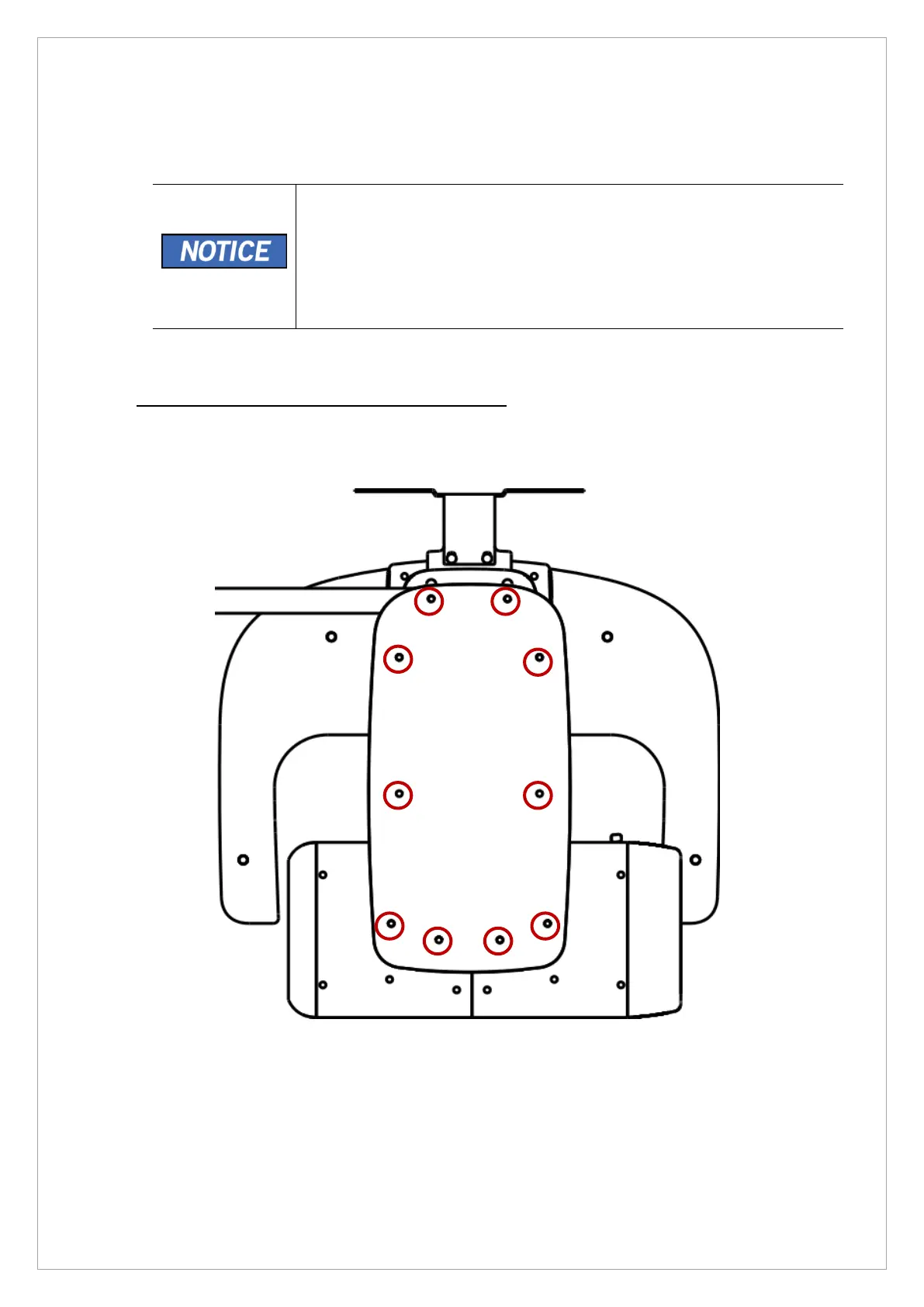

DISASSEMBLY OF THE VERTICAL UPPER COVER
To disassemble the vertical upper cover, loosen all bolts and caps as illustrated below:
To Next Page
