4.6. PANO Geometry Calibration
4.6.1. PANO Geometry Calibration Standard

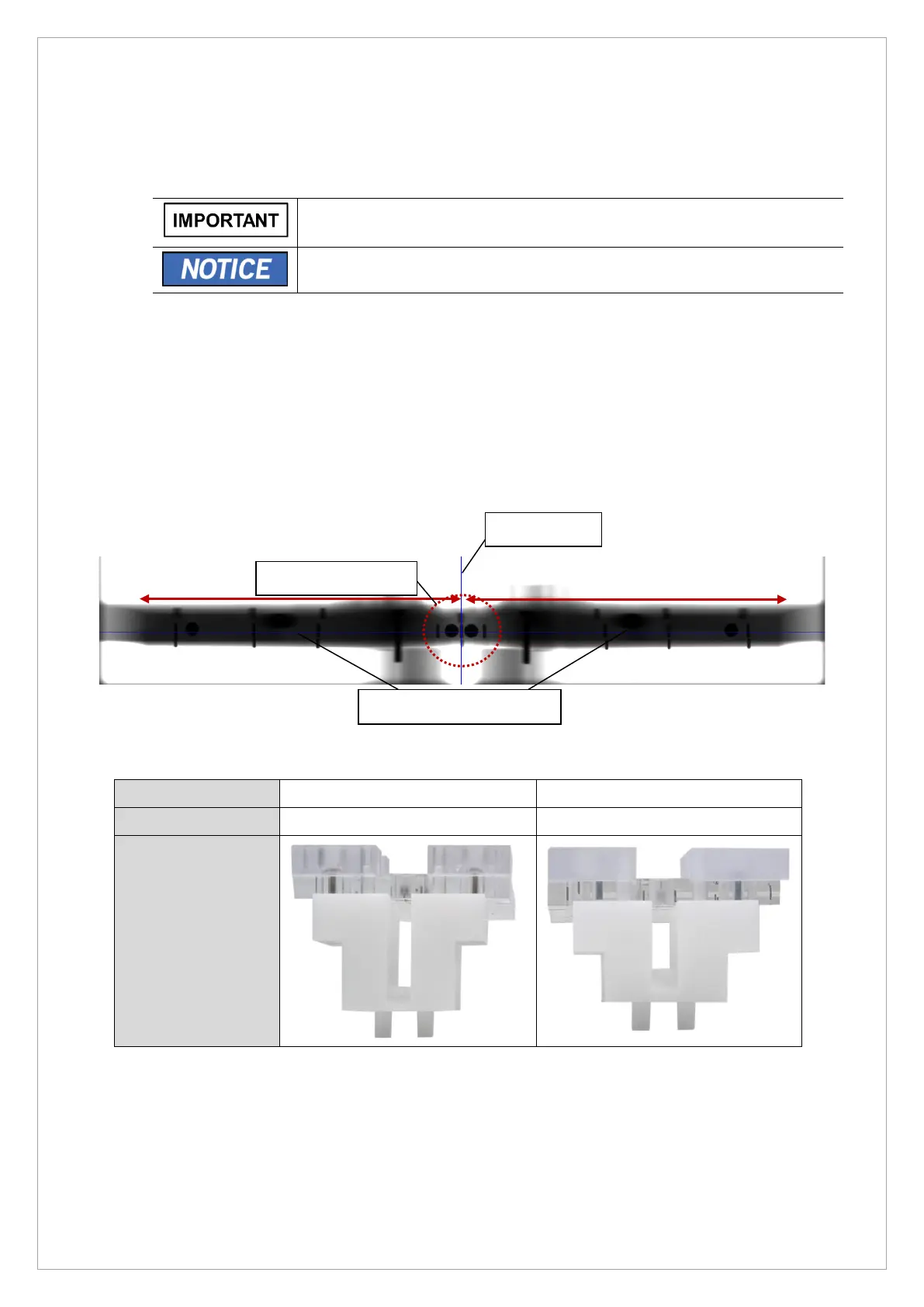

Prepare a PANO ball phantom 2.0 before the PANO geometry calibration.
Check the measurement with raw file when conducting the PANO geometry
calibration with the PANO ball phantom 2.0.
• PANO BALLPHANTOM RIGHT/LEFT PIN DISTANCE ERROR
- within ±30 pixels
• PANO BALLPHANTOM CENTER PIN POSITION
- Within 1574 ±10 pixel
• PANO BALLPHANTOM CENTER BALL SIZE
- 54 ~ 55 pixels
Phantom Ball Phantom 1.0 Ball Phantom 2.0
SAP code A0001264 A0002577
Right / Left Pin Distance
