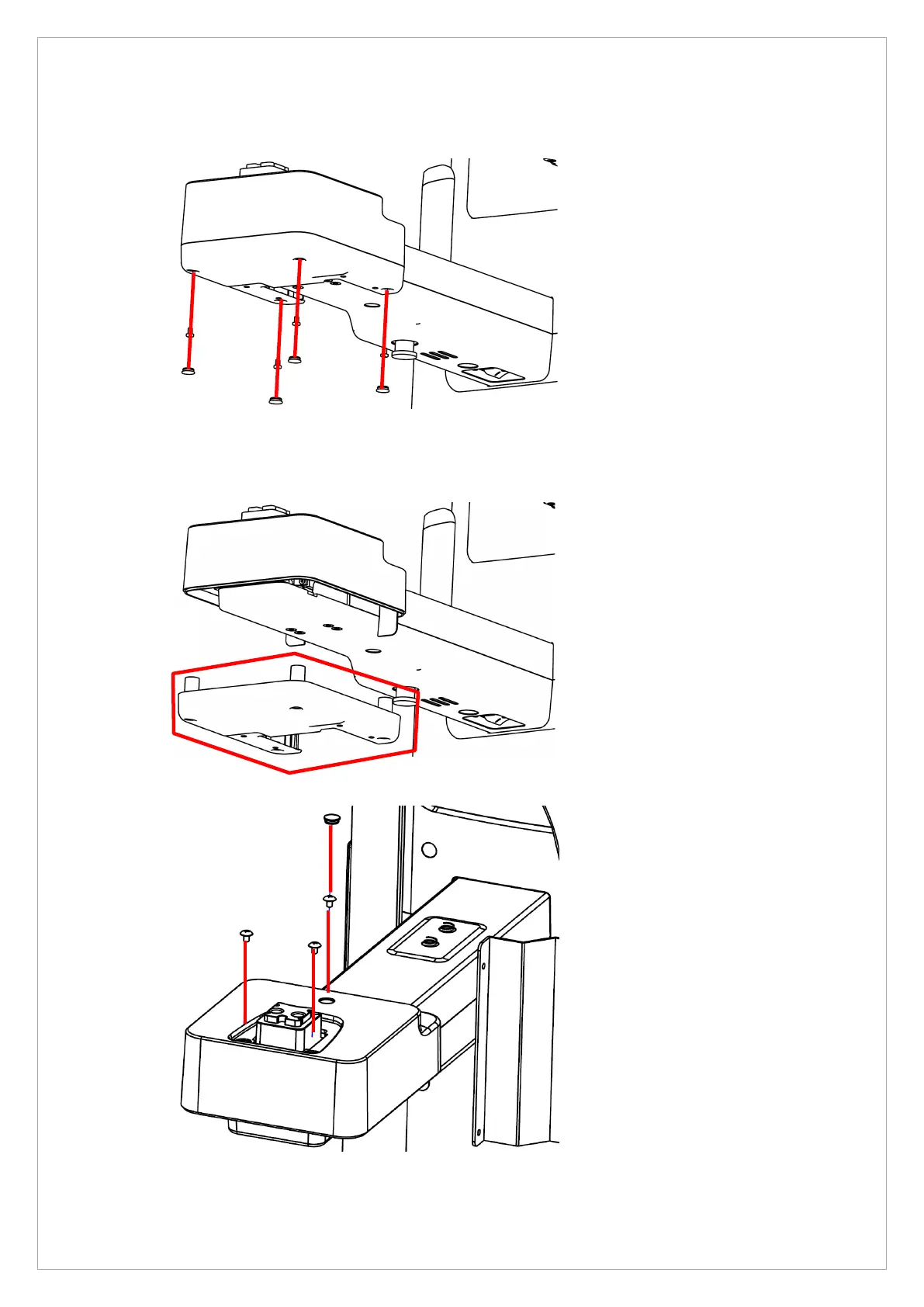

6. Remove four bolt caps and loosen four bolts as shown in the image below.
7. Remove the cover as shown in the image below.
8. Remove the bolt cap and loosen three bolts as shown in the image below.
