Case 2: When Using the Old Phantom
To position the old phantom:
1. Prepare a tripod and move closed to the handle frame
2. Mount the phantom jig on the tripod plate.
3. Place an old phantom on the jig. When placing the phantom, the side with longer empty
space must come to the bottom.

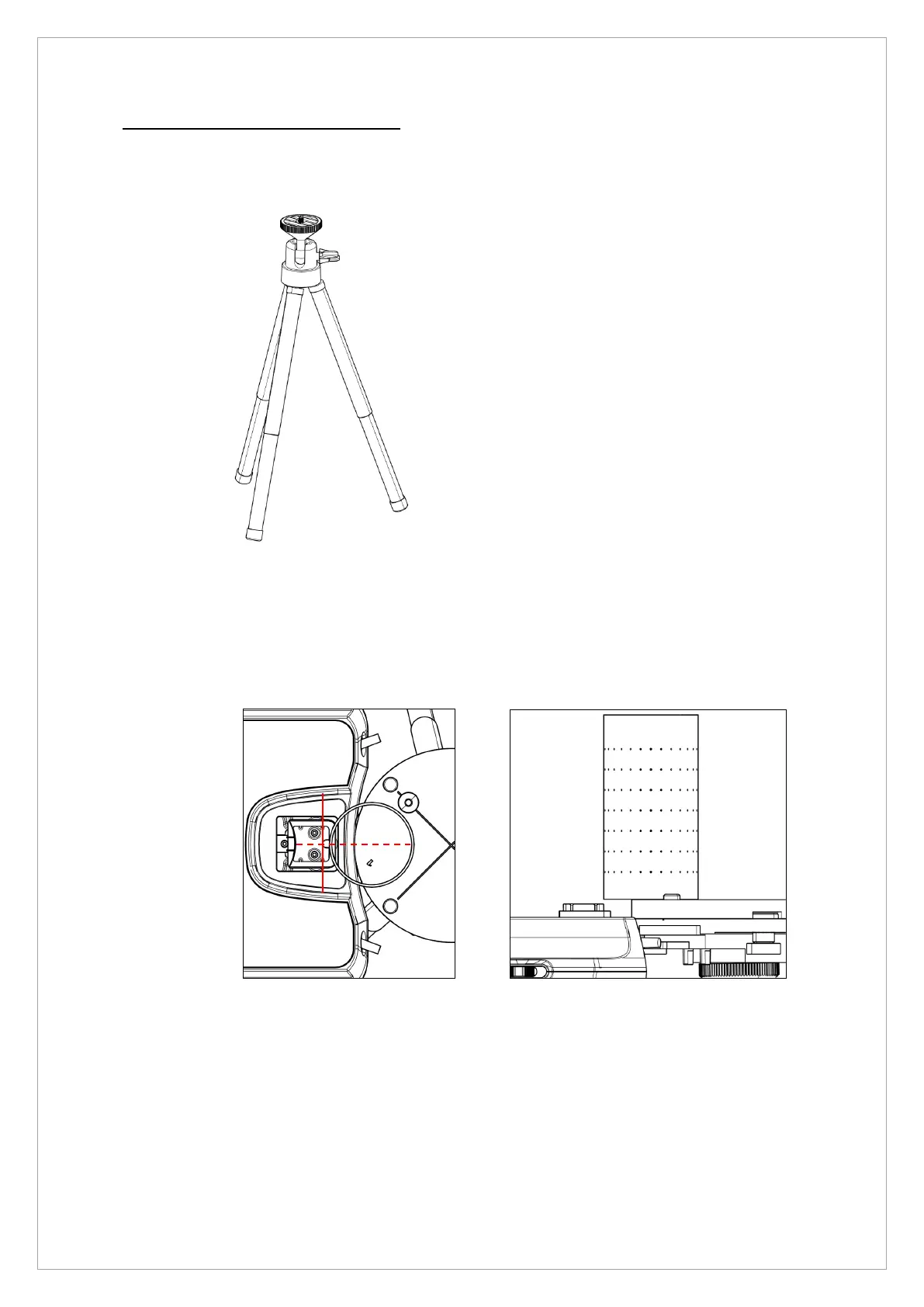

4. Align the phantom to the red-dotted line as illustrated below: :
[Top View] [Side View]
