Veeder-Root EMR4 Application Guide

8
EMR
3
- Truck Installations
EMR4 Truck Installation Installation Procedures - Fuel Oil Truck Application

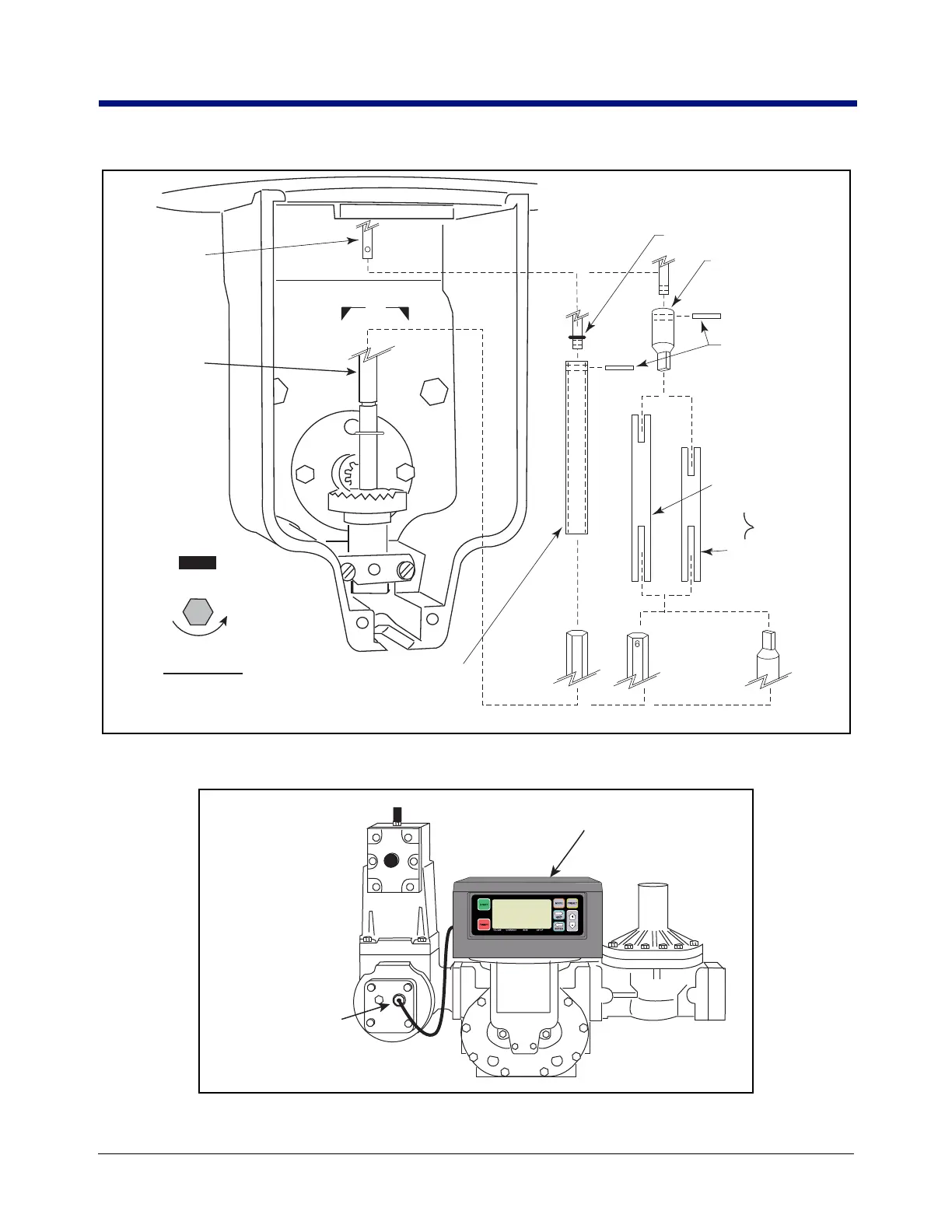

Figure 3. Installing Meter Encoder Adapter Coupling
Figure 4. Example Of Temperature Probe Installation
O-ring P/N 512700-242
Groove pin
P/N 510162-001
EMR 4
Input
Shaft
Hex Drive
(with protruding
pins opposite
sides)
Hex
Drive
Tang
Drive
Vertical drive
shaft
Shaft - tang
drive coupler LC
P/N 328907-001
Coupling shaft
P/N 331413-001
Sleeve - coupling shaft
P/N 331955-001
Coupling shaft
P/N 331413-002
As required
Top of flow meter’s
vertical drive shaft
Preferred Rotation
(Hex Shaft Shown)
AA
VIEW A-A
Possible Vertical Drive End Types
NOTICE
Use this port
for Optional
V-R Thermowell
Display Head
