Veeder-Root EMR4 Application Guide

14
EMR
3
- Truck Installations
EMR4 Truck Installation Installation Procedures - Fuel Oil Truck Application

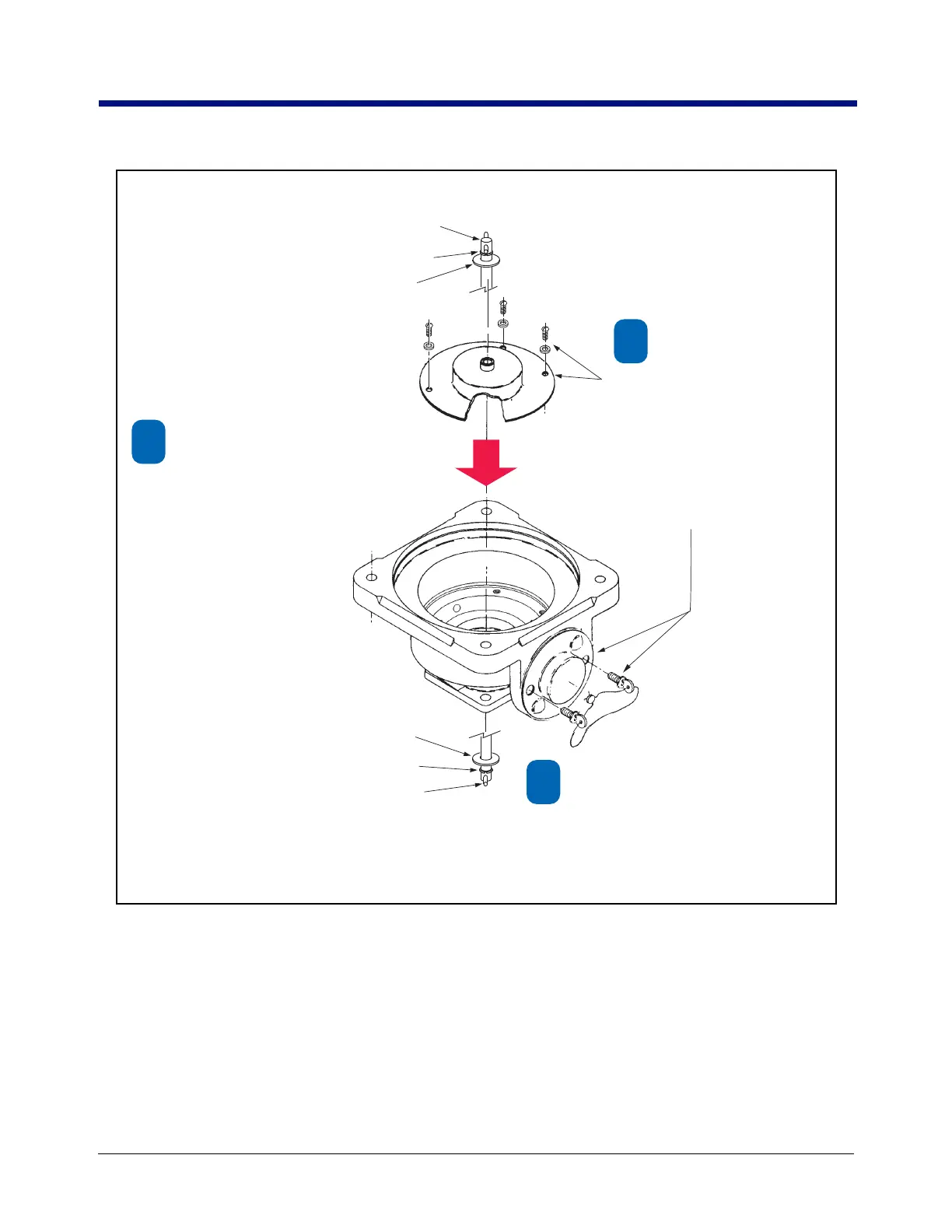

Figure 9. Replacing The Tokheim Daniels, & Donovan Calibrator
0011071-325 Washer
011071-325 Washer
0511810-001 Truarc
0511810-001 Truarc
0510105-140 Groove Pin
Insert Truarc in "top" groove in
shaft (Groove Pin is Factory
installed in "Top" end of Shaft),
Slide on washer, then lower
shaft down through bushings in
top of cover and base of
calibrator.
Replace existing cover
with 3 mounting screws
and washers.
Replace existing Dial
cover with 2 Seal screws.
(Reseal with wire and seal
from kit).
1
1
2
Slide on washer then insert
Tr uarc in bottom shaft groove.
Support shaft with a block of
wood and drive bottom groove
pin into hole in bottom end of
shaft
3
0331431-001 Shaft Group
758-9.eps
