EMR4 Truck Installation Installation Procedures - Fuel Oil Truck Application

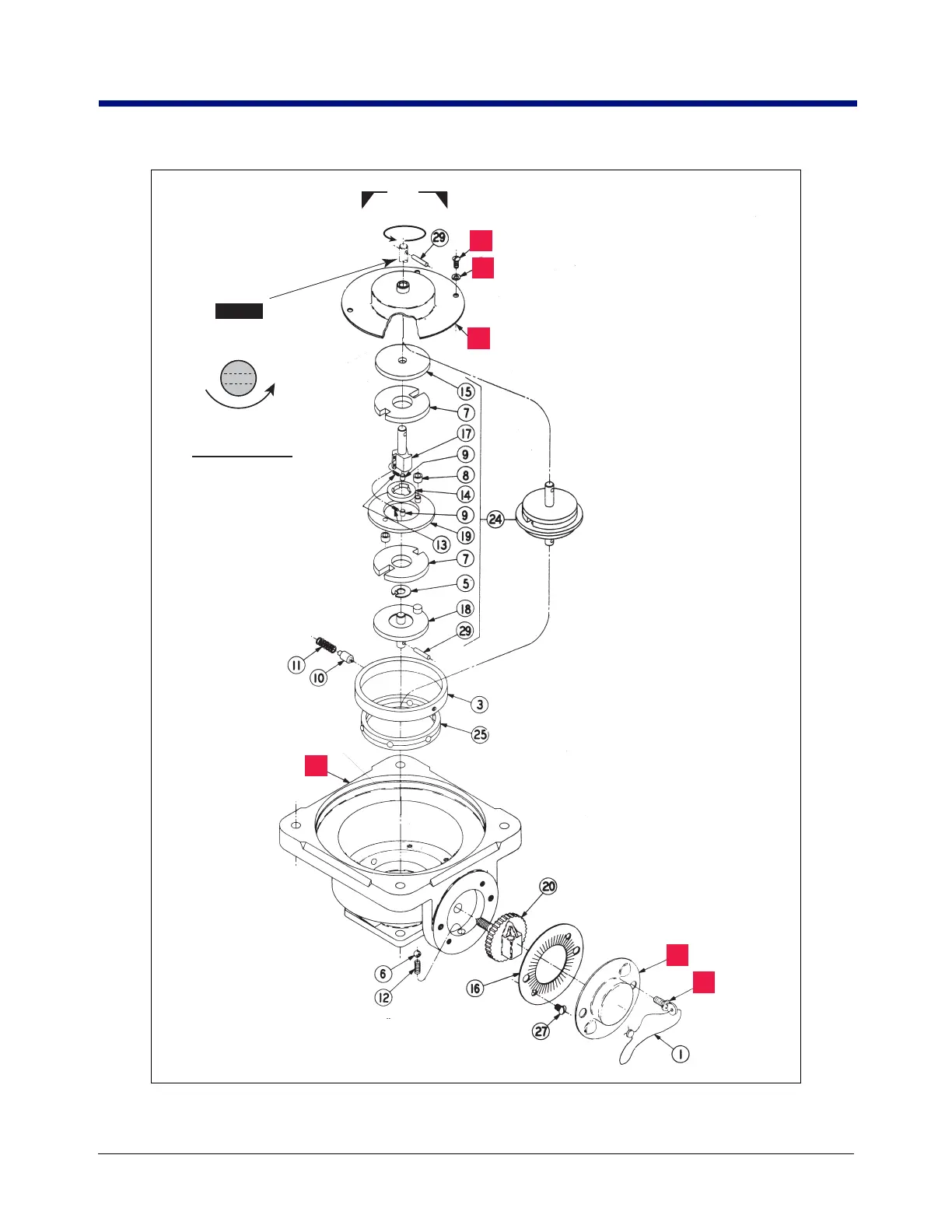

Figure 7. Disassembling The Tokheim Daniels, & Donovan Calibrator
22
23
4
28
26
21
Disassemble the Tokheim
calibrator and keep parts
4, 21, 22, 23, 26, and 28
(items in square blocks)
758-7.eps
Top of flow meter’s
vertical drive shaft
Preferred Rotation
AA
VIEW A-A
