Veeder-Root EMR4 Application Guide

37
EMR
3
- Truck Installations
EMR4 Truck Installation Installing the Temperature Probe (Optional)
5. Install the temperature probe’s vinyl cap (P/N 514100-485) over the temperature probe cable by making a
small bend in the cable no more than one inch above the probe’s hex nut (see Figure 29).

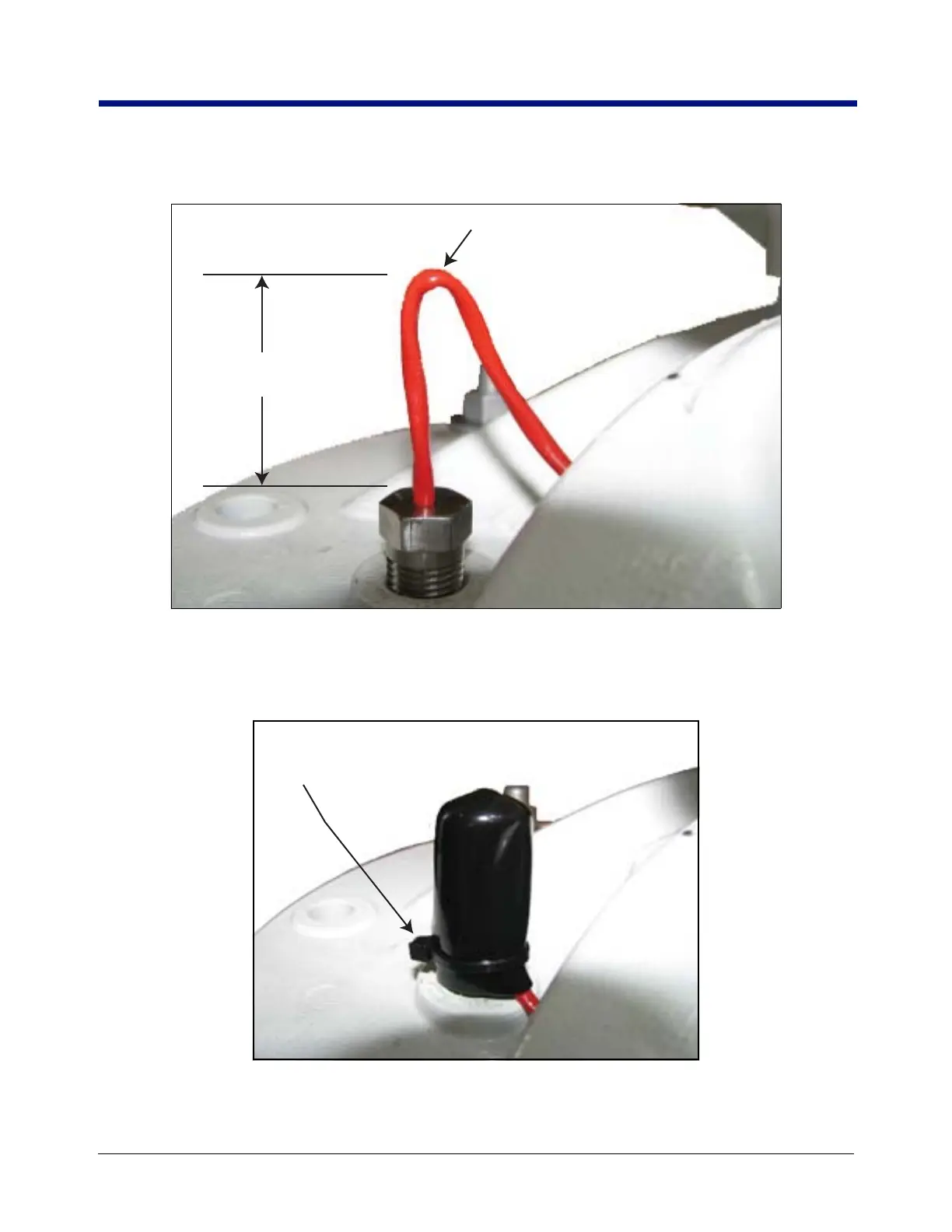

Figure 29. Preparing The Temperature Probe’s Cable For The Protective Cap
6. Slide the cap over the bend of the cable and push it down over the hex nut until it rests against the meter. Get
the tie wrap (P/N 576008-161) from the temperature probe kit and position it around the end of the cap just
under the temperature probe’s hex nut and tighten it (see Figure 30).
Figure 30. Positioning The Tie Wrap Over The Temperature Probe’s Protective Cap
Create a loop in the cable
less than 1-inch from the top
of the probe’s hex nut
1-inch (25mm) or less
Position tie wrap around boot
end just under the probe’s hex nut
920-33.eps
