Veeder-Root EMR4 Application Guide

EMR4 Inhibitors - Provisions for Sealing Temperature Probe
59

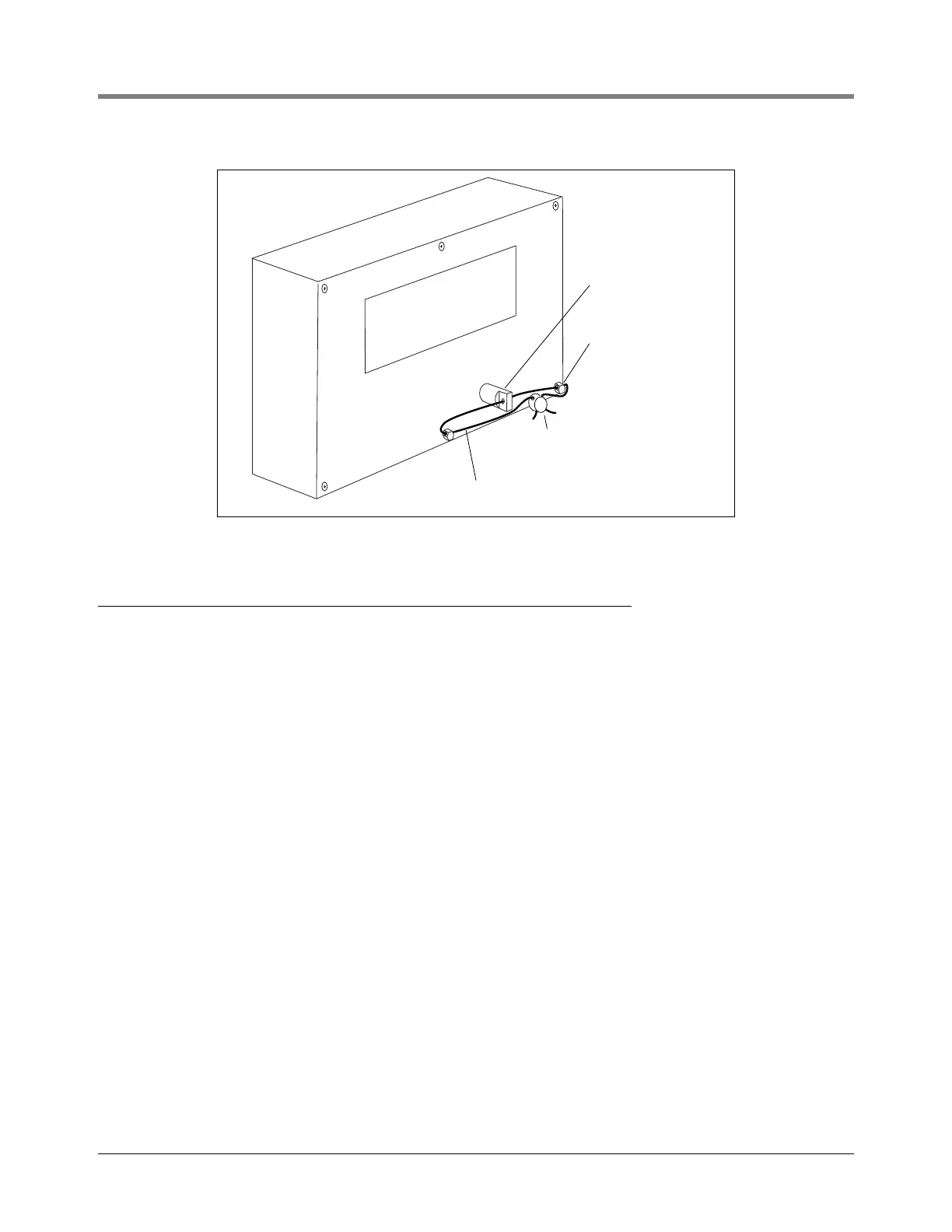

Figure 46. Remote Display Head Sealing
Temperature Probe
The temperature probe used by the EMR4 system for performing volume correction is connected to the two TP
positions of the terminal block located in the Display Head that is sealed by the mechanical method described
above. The temperature probe cable passes through the wall of the housing by way of one of two openings
provided. Strain relief for this cable is provided by a compression fitting called a cord grip. If the temperature probe
cable becomes disconnected, the system will display an error message and terminate the current delivery.
Hex head screw (2)
with hole in head
Seal
Sealing wire
C&C Switch &
Cap w/ hole
for sealing wire
